- Modern alternative to traditional round headlights.
- Outstanding light output and spread.
- Toughened outer lens prevents damage.

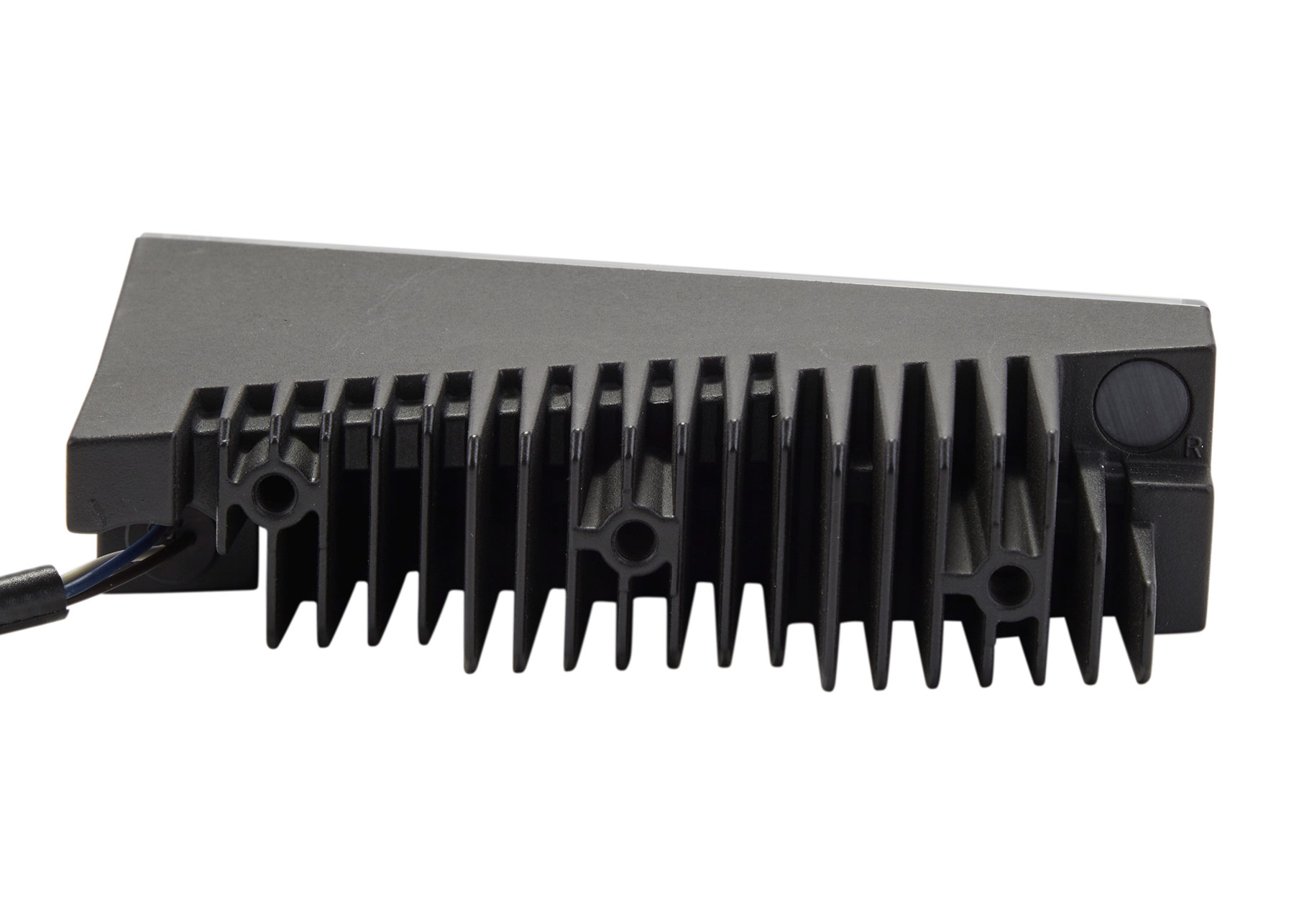

- Venting patch on the back allows air to expand and contract to avoid damage to the sealing of the product.
- Warranty: 3 Years
- Approvals: ECE R10, R112, SAE DOT.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

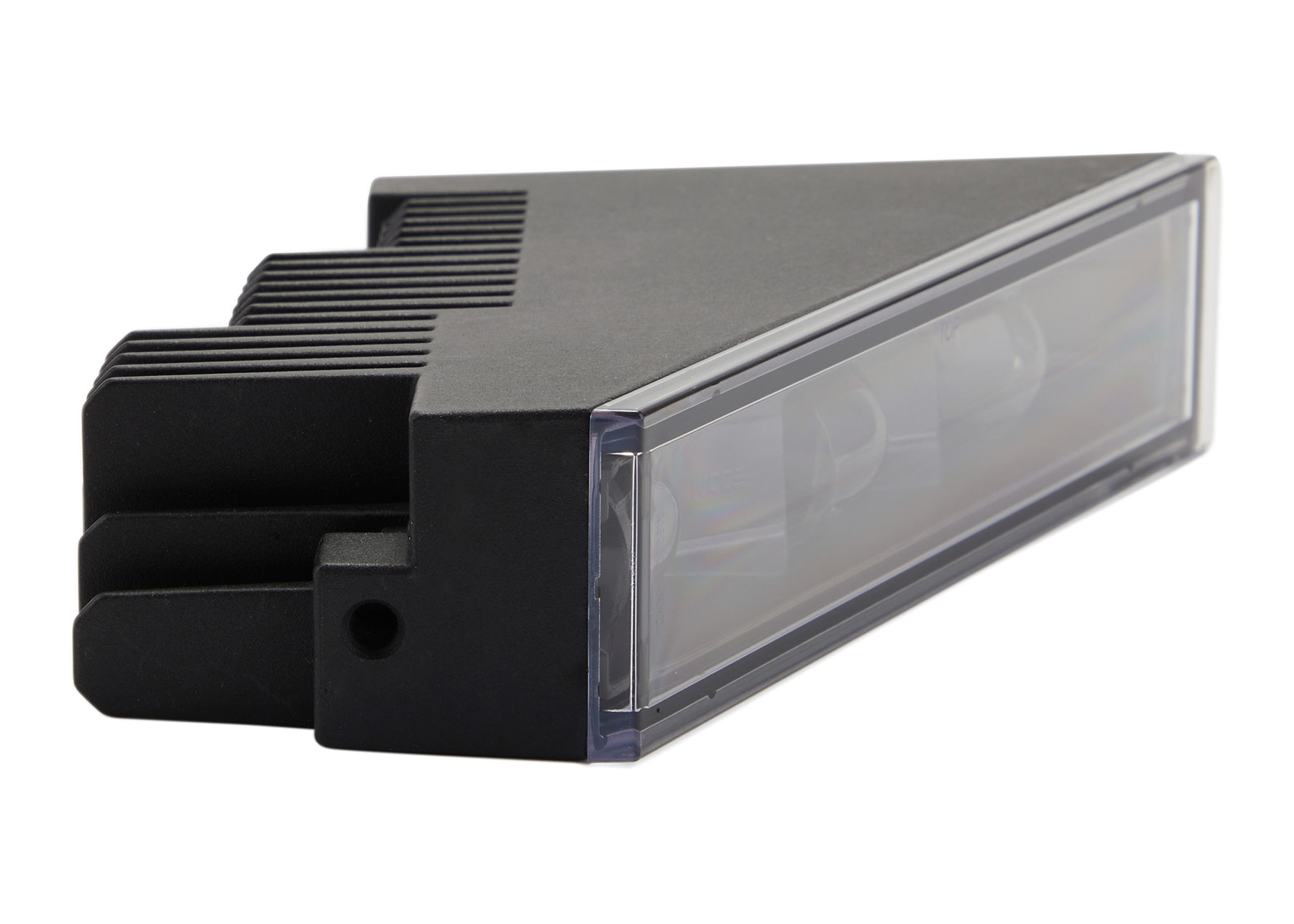

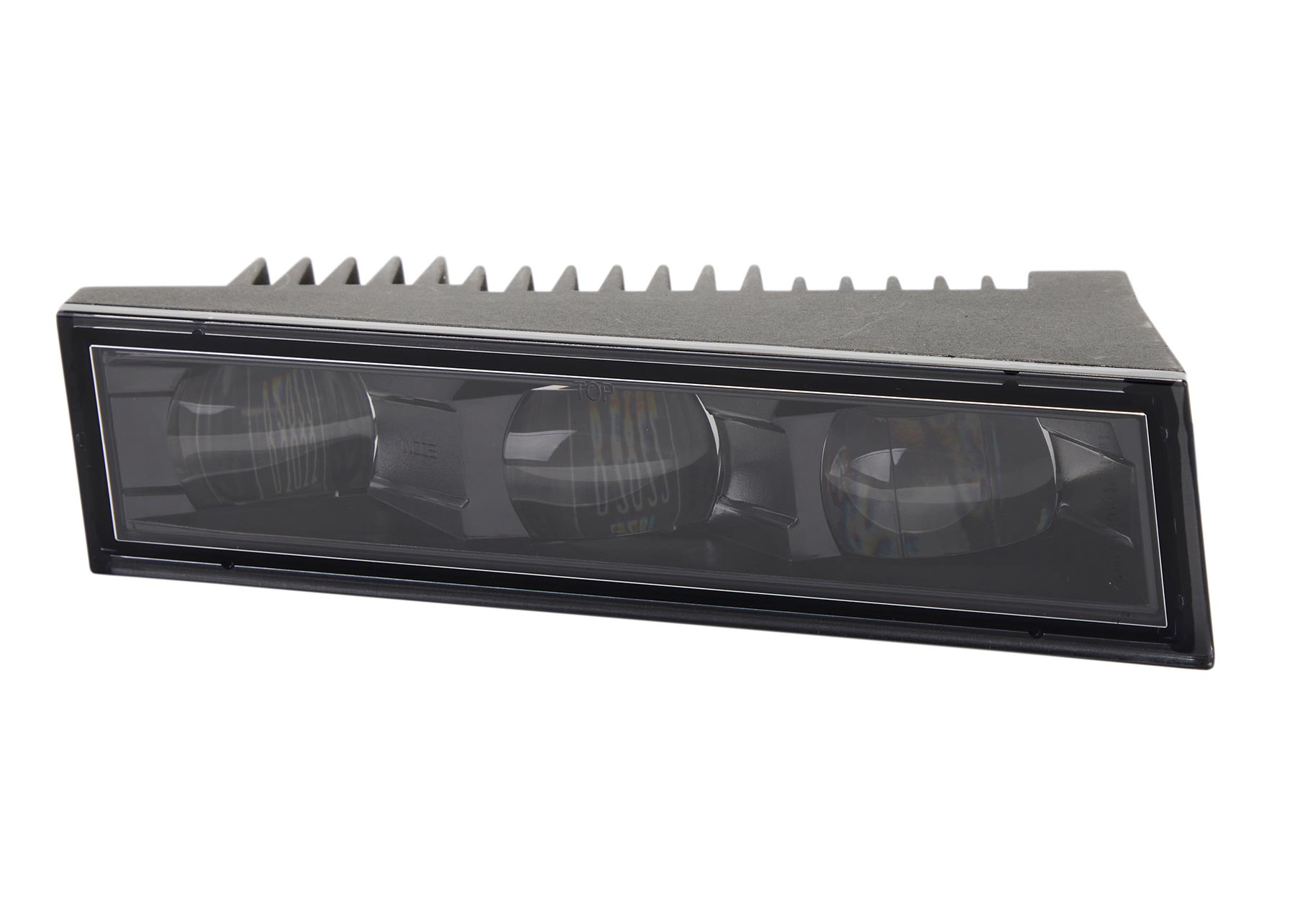

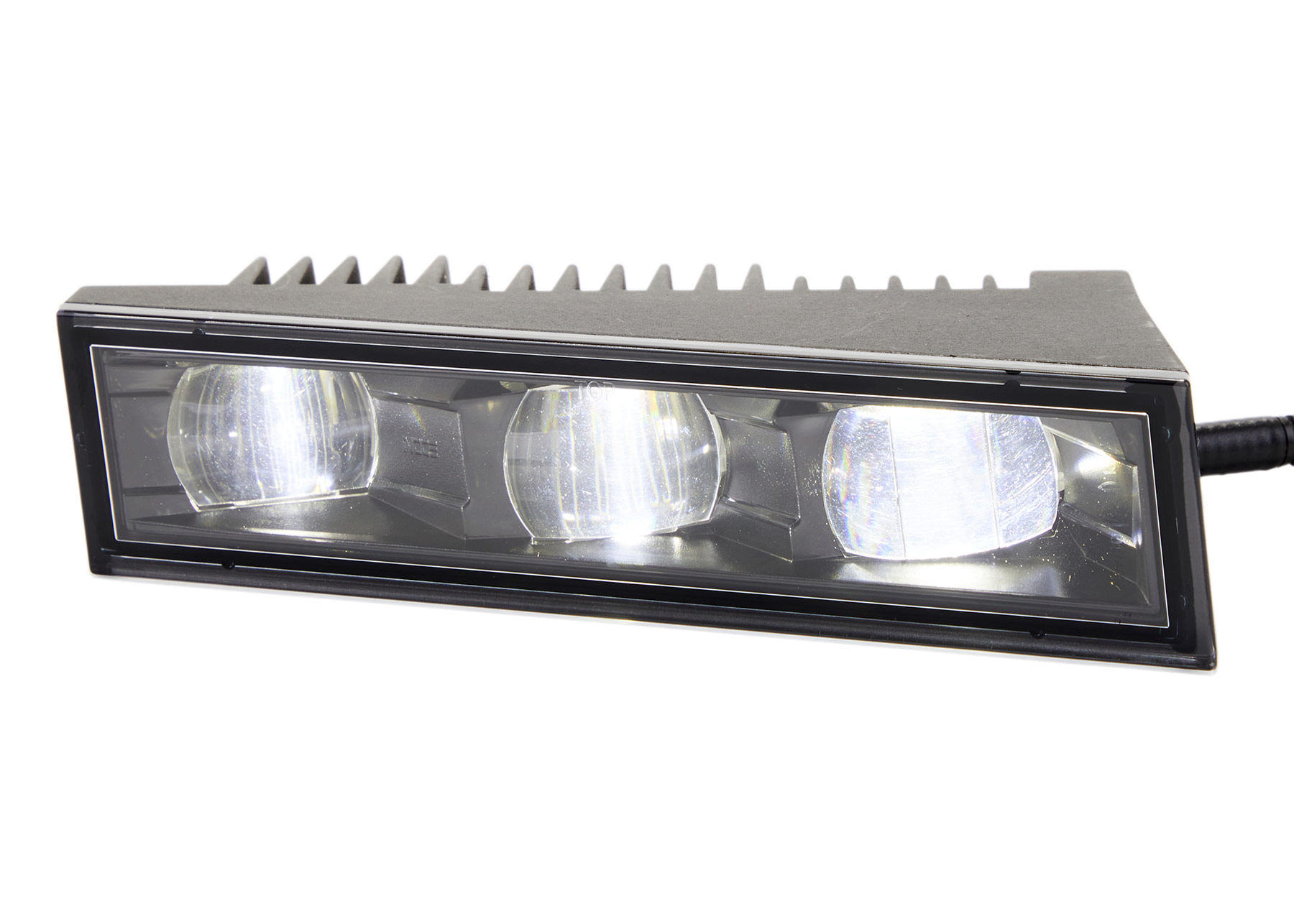

| RL6374 | 3 LED Angled Low Beam Headlight, Right Hand Drive - Left Side | IP68 | 12/24 | 1.7A @ 13.5V, 0.8A @ 28V | 250 | Deutsch | White | Clear | N/A | 0.585 | 40(H) X 160(L) X 136(D) |
| RL637401 | 3 LED Angled Low Beam Headlight, Right Hand Drive - Right Side | IP68 | 12/24 | 1.7A @ 13.5V, 0.8A @ 28V | 250 | Deutsch | White | Clear | N/A | 0.585 | 40(H) X 160(L) X 136(D) |
