- Ultra-wide light spread due to sleek curved design and flexible PCB.
- Daylight colour temperature for maximum visibility.
- 1,750 raw lumens (1,236 effective lumens).
- 1,100 lux at 1 metre.
- Robust aluminium housing and protruding lip protects the lens from breakages.
- Blends into the vehicle.
- Breathable valve and potted cable exit provides an IP69K rating.
- Available in any colour. Powder coated cover provides colour matching options.

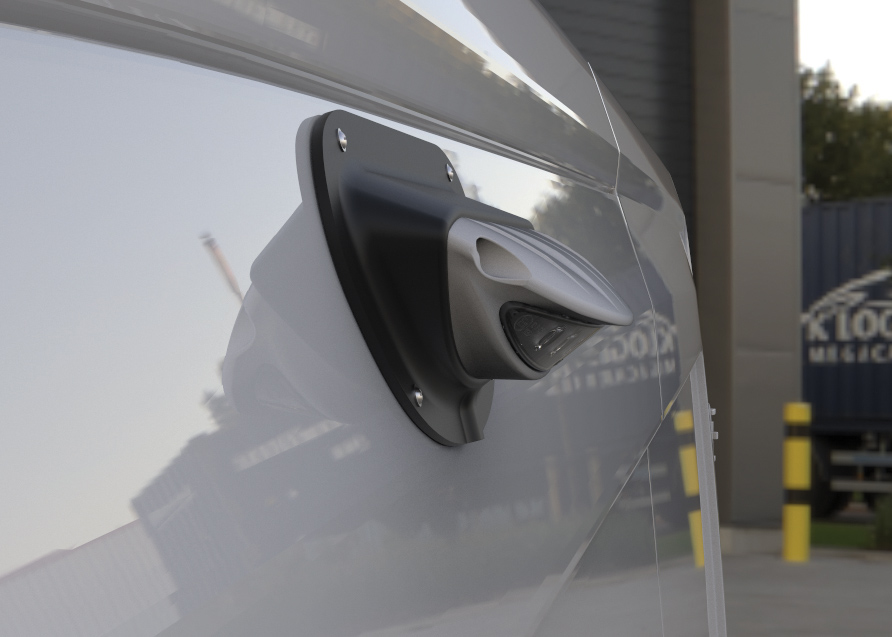

- Plinth available for use when mounting Ezio on angled vehicles sides, to maintain 45° angle. Part No. AU.09.P.
- Made to order. Lead times apply.
- Warranty: 3 Years
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| FastLane | Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | LIGHT COLOUR TEMPERATURE (°KELVINS) | INTEGRAL SWITCH | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | AU.09.4.M | High Power LED Scene Light - White Housing | IP69K | 10-32 | 1.6A @ 12V, 0.82A @ 24V | 490 | None | White | Clear | 6481 | N/A | N/A | 0.28 | 58(H) X 224(L) X 51(D) |
| AU.09.4.MS | High Power LED Scene Light - White Housing with Superseal Connector | IP69K | 10-32 | 1.6A @ 12V, 0.82A @ 24V | 530 | Superseal | White | Clear | 6481 | N/A | N/A | 0.288 | 58(H) X 224(L) X 51(D) |
Download Product Information
- AU.09.4.M Product Spec Sheet Download
- AU.09.4.MS Product Spec Sheet Download
- AU.09.4.M Technical Drawing Download
To download product materials, please login or register for an account.
