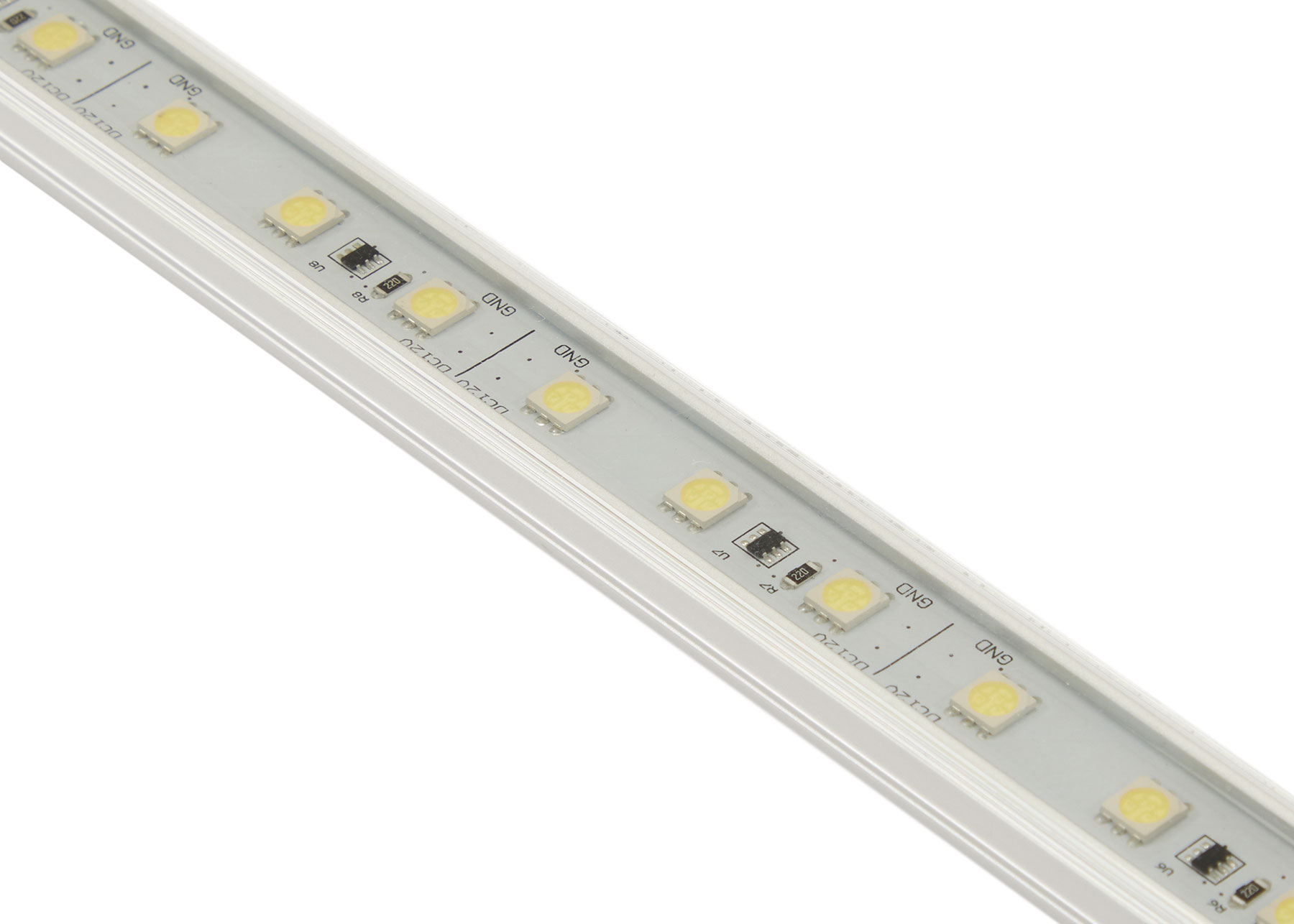

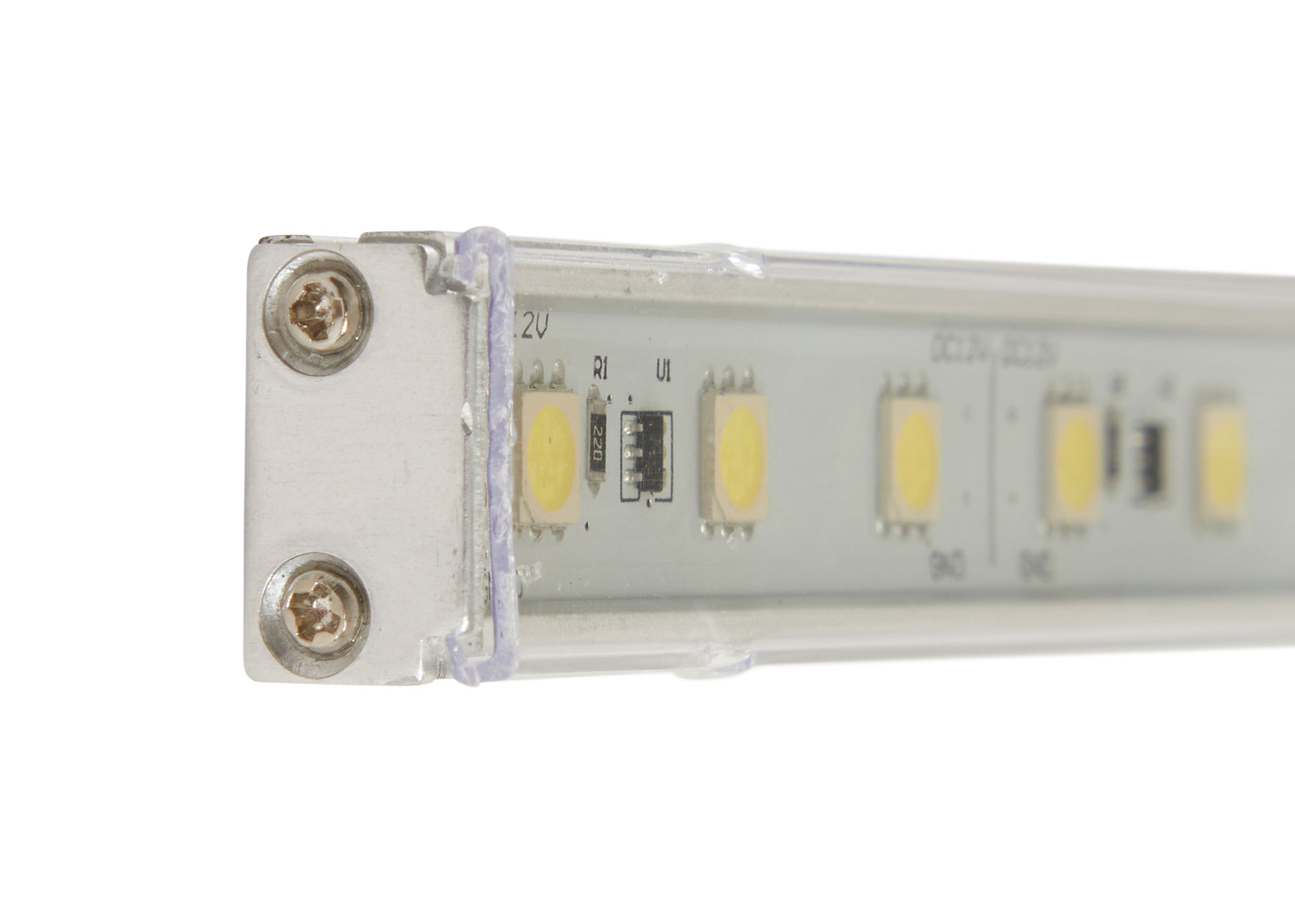

- Robust, fully potted resin construction in aluminium housing.
- Intense light output.
- Incredible 120 ° light spread.
- Only 8mm deep by 16mm wide.
- Cost effective.
- ILP500 white version is available in 12V and 24V. Colour versions available in 24V.
- Different colour options and lengths available across ILP Series.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | LIGHT COLOUR TEMPERATURE (°KELVINS) | INTEGRAL SWITCH | PIR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

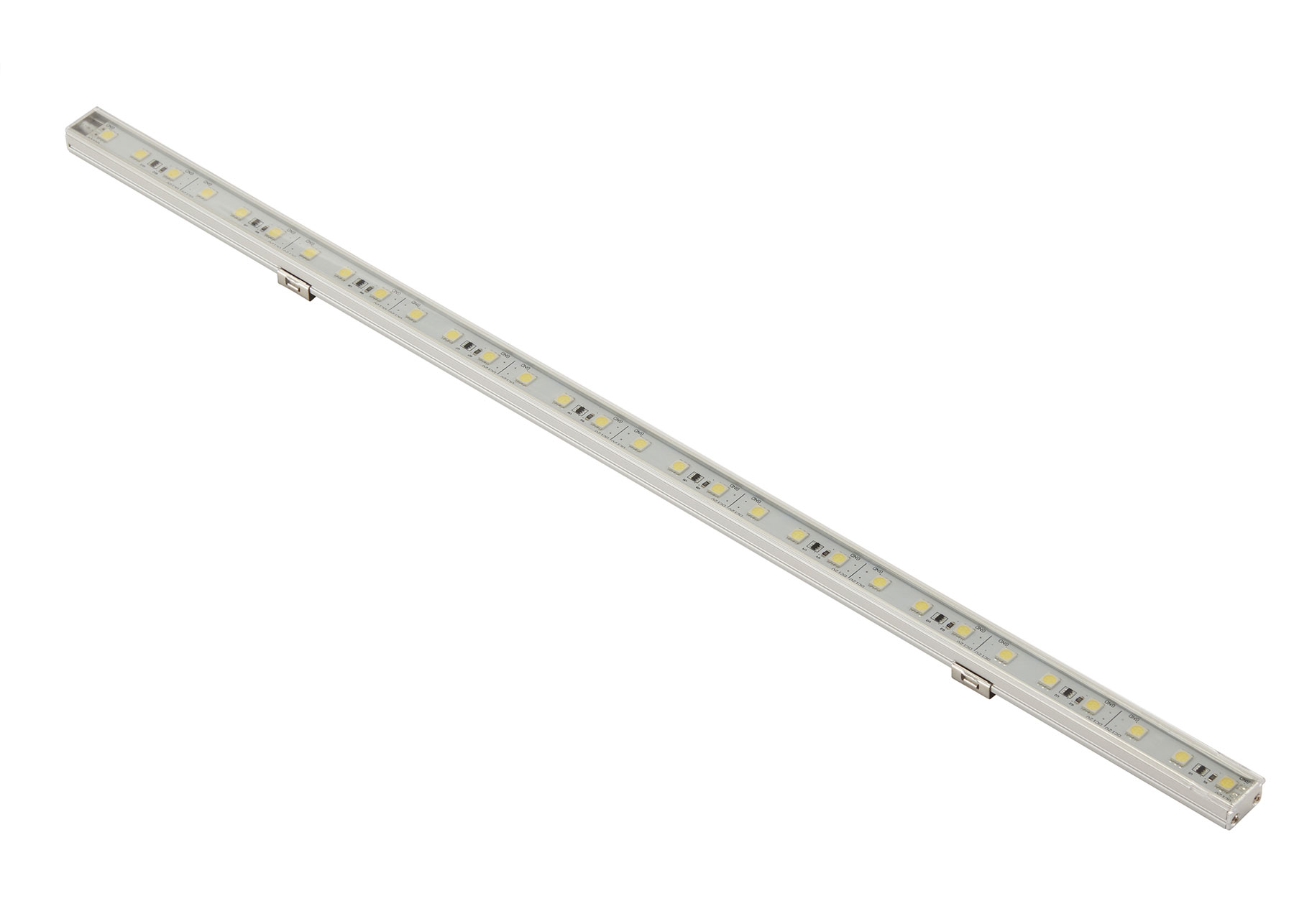

| ILP500 | High Power Waterproof LED Strip Light - 500mm - White, 12V | IP65 | 12 | 0.57A @ 12V | 300 | None | White | Clear | 6000 | No | No | N/A | 0.126 | 8(H) X 500(L) X 16(D) |
| ILP500/7M | High Power Waterproof LED Strip Light - 500mm - White, 12V, 7m Cable | IP65 | 12 | 0.57A @ 12V | 7000 | None | White | Clear | 6000 | No | No | N/A | 0.365 | 8(H) X 520(L) X 16(D) |
| ILP500D | High Power Waterproof LED Strip Light - 500mm - White, 24V | IP65 | 24 | 0.35A @ 24V | 300 | None | White | Clear | 6000 | No | No | N/A | 0.126 | 8(H) X 500(L) X 16(D) |
| ILP500S/08 | High Power Waterproof LED Strip Light - 500mm - White, 12V, 800mm Cable with Superseal Connector | IP65 | 12 | 0.57A @ 12V | 800 | Superseal | White | Clear | 6000 | No | No | 8(H) X 520(L) X 16(D) |
Download Product Information
- ILP500 Product Spec Sheet Download
- ILP500/7M Product Spec Sheet Download
- ILP500D Product Spec Sheet Download
- ILP500S/08 Product Spec Sheet Download
- ILP500 Technical Drawing Download
- ILP500/7M Technical Drawing Download
- ILP500D Technical Drawing Download
- ILP500S/08 Technical Drawing Download
To download product materials, please login or register for an account.
