- Slimline design.
- Surface mount.
- Light stays on for 131 seconds after the PIR is activated.
- ILV650 is available in 12V and 24V.
- Other voltage and switching options available in other lengths of the ILV Series.
- Some variants made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | LIGHT COLOUR TEMPERATURE (°KELVINS) | INTEGRAL SWITCH | PIR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

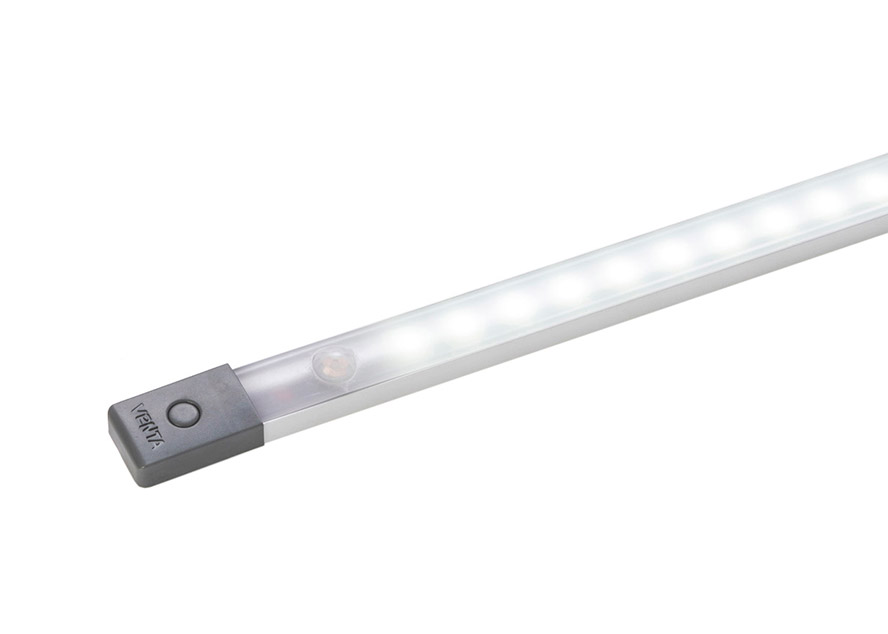

| ILV650M | High Power LED Strip Light - 712mm, 12V with PIR | IP20 | 12 | 0.6A @ 12V | 1000 | None | White | Clear | 6000 | No | Yes | N/A | 0.181 | 15.5(H) X 720(L) X 25(D) |
| ILV650MD | High Power LED Strip Light - 712mm, 24V with PIR | IP20 | 24 | 0.260A @ 24V | 1000 | None | White | Clear | 6000 | No | Yes | N/A | 0.181 | 15.5(H) X 720(L) X 25(D) |
| ILV650MS | High Power LED Strip Light - 712mm, 12V with PIR and Superseal Connector | IP20 | 12 | 0.6A @ 12V | 1040 | Superseal | White | Clear | 6000 | No | Yes | N/A | 0.185 | 15.5(H) X 720(L) X 25(D) |
Download Product Information
- ILV650M Product Spec Sheet Download
- ILV650MD Product Spec Sheet Download
- ILV650MS Product Spec Sheet Download
- ILV650M Technical Drawing Download
- ILV650MD Technical Drawing Download
- ILV650MS Technical Drawing Download
To download product materials, please login or register for an account.
