- Slimline design.
- Surface mount.
- 12V with a switch.
- Other voltage and switching options available in other lengths of the ILV Series.
- Some variants made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | LIGHT COLOUR TEMPERATURE (°KELVINS) | INTEGRAL SWITCH | PIR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

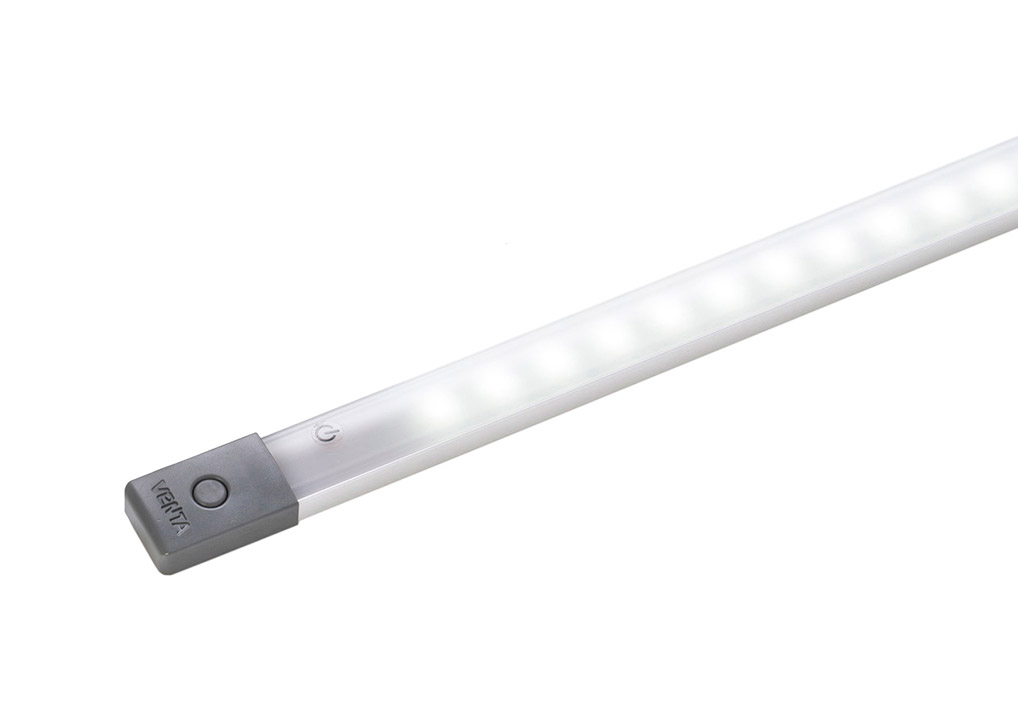

| ILV250S | High Power LED Strip Light - 310mm, 12V Switched | IP20 | 12 | 0.11A @ 12V | 1000 | None | White | Clear | 6000 | Yes | No | N/A | 0.078 | 9(H) X 310(L) X 25(D) |
| ILV250SS | High Power LED Strip Light - 310mm, 12V Switched with Superseal Connector | IP20 | 12 | 0.11A @ 12V | 1040 | Superseal | White | Clear | 6000 | Yes | No | N/A | 0.082 | 15.5(H) X 310(L) X 25(D) |
