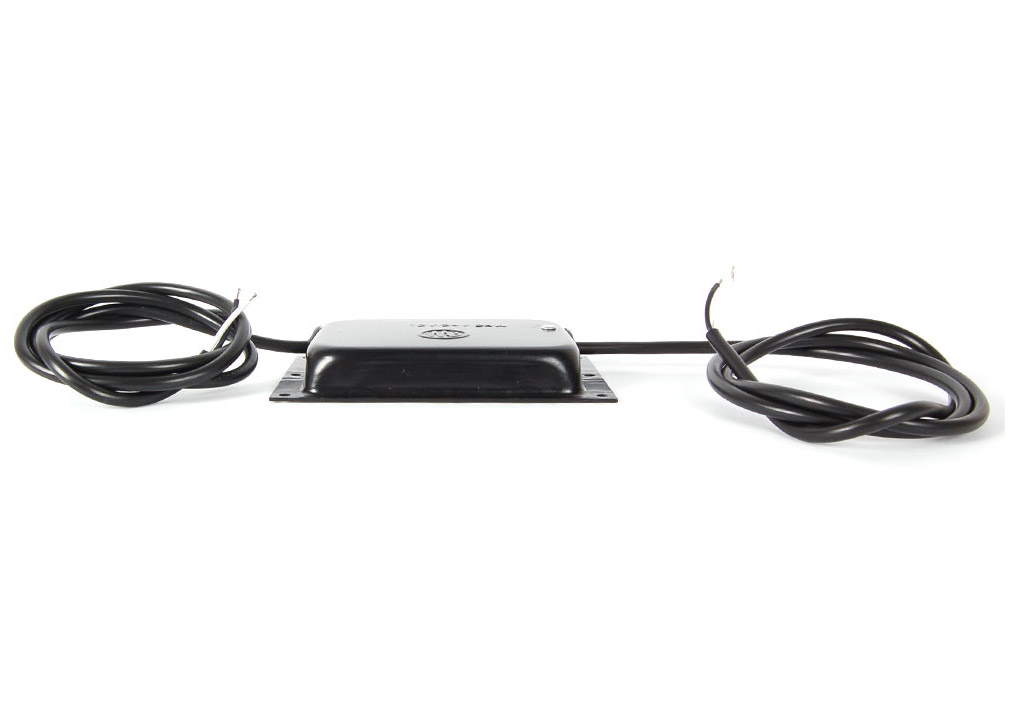

LMI1 Side
LMI1 Side
LMI1 Back
LMI1 Side

Intelligent Load Module - Single Channel

PART NO: LMI1

Features

  • Simulates the current draw for standard halogen direction indicator.
  • Monitors the state of the LED lamp.
  • Robust construction.
  • Fully sealed against water ingress.
  • Single and double channel versions available.
  • Warranty: 3 Years
  • Approvals: ECE R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

Part Number Product Name IP RATING VOLTAGE (V) DC CURRENT DRAW (AMPS) CABLE LENGTH (MM) CONNECTORS DIAMETER (MM) WEIGHT (KG) Dimensions (MM)
LMI1 Intelligent Load Module - Single Channel, 1m Cable IP67 12/24 2.16A @ 12V, 1.08A @ 24V 1000 None N/A 0.328 90(H) X 130(L) X 20(D)

Download Product Information

To download product materials, please login or register for an account.
