- High & low beam, front position, indicator and DRL.
- Warranty: 3 Years
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

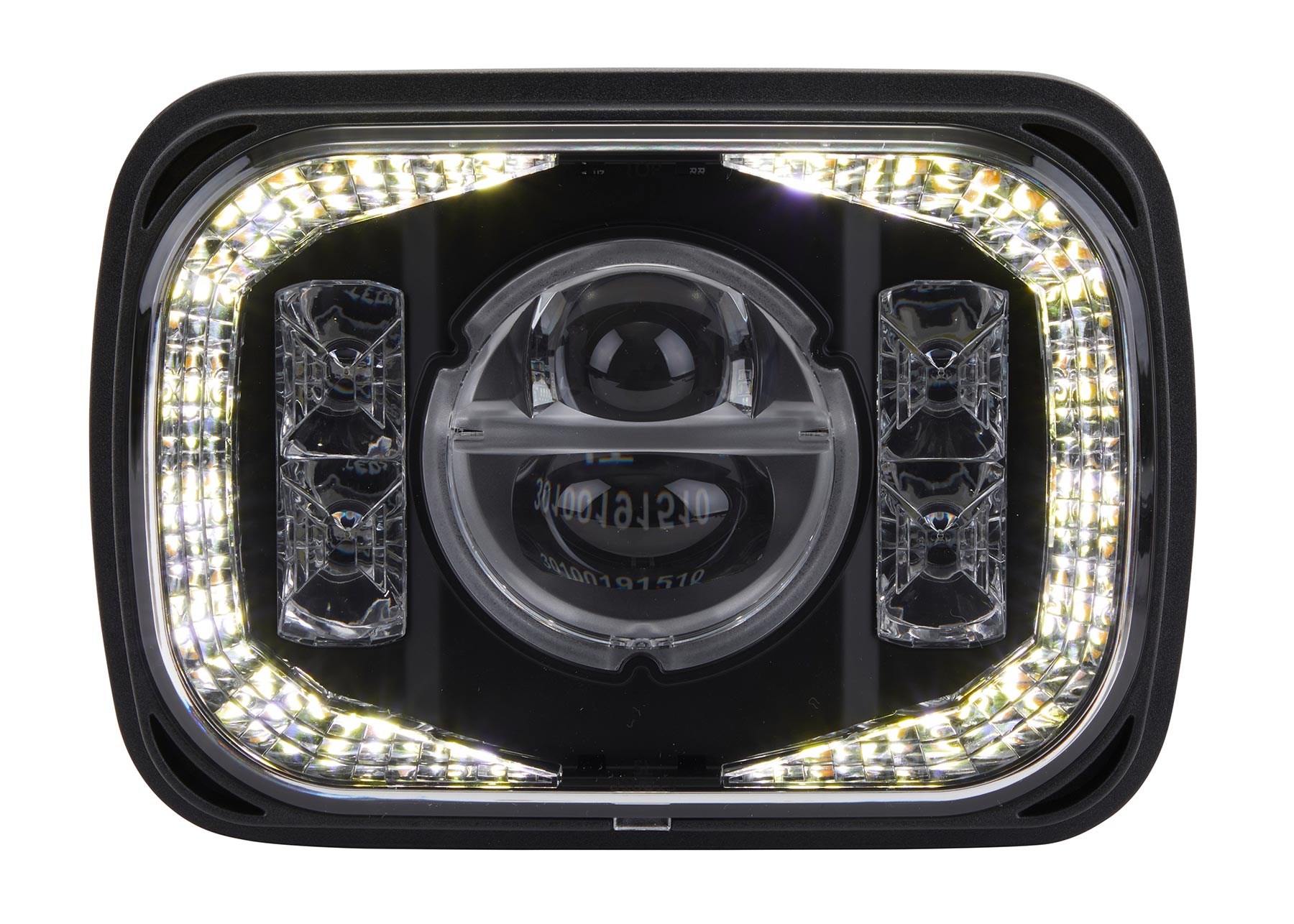

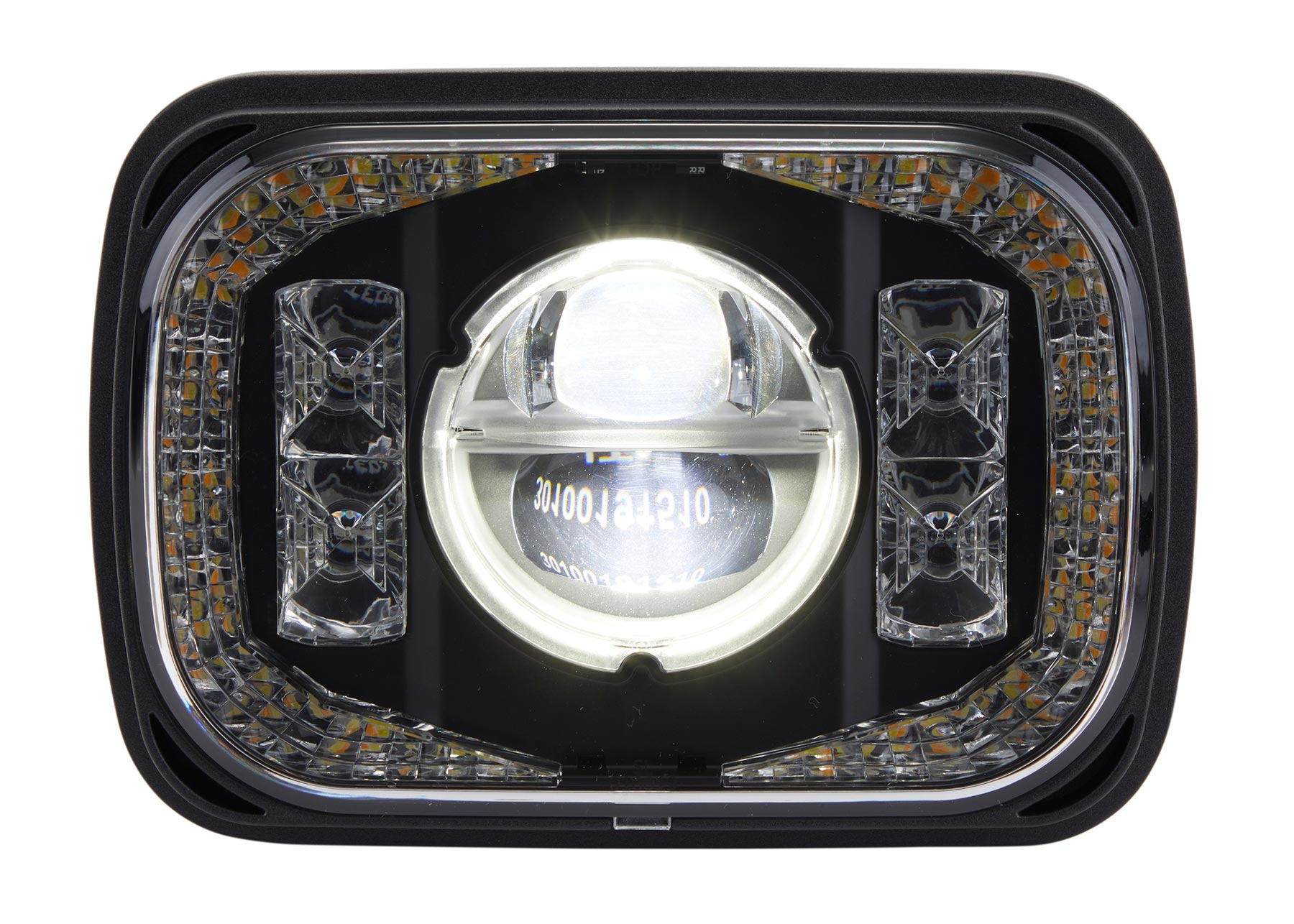

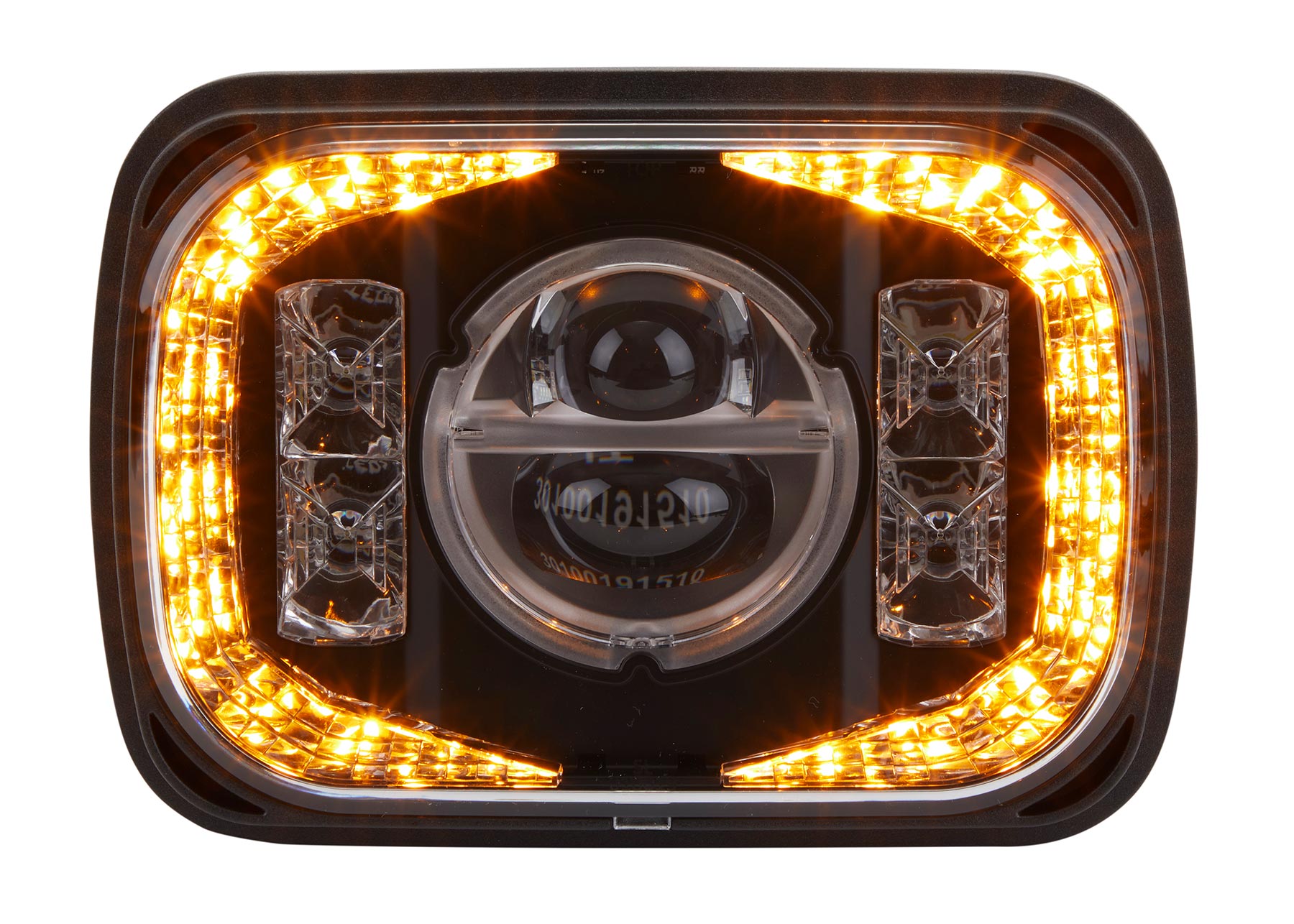

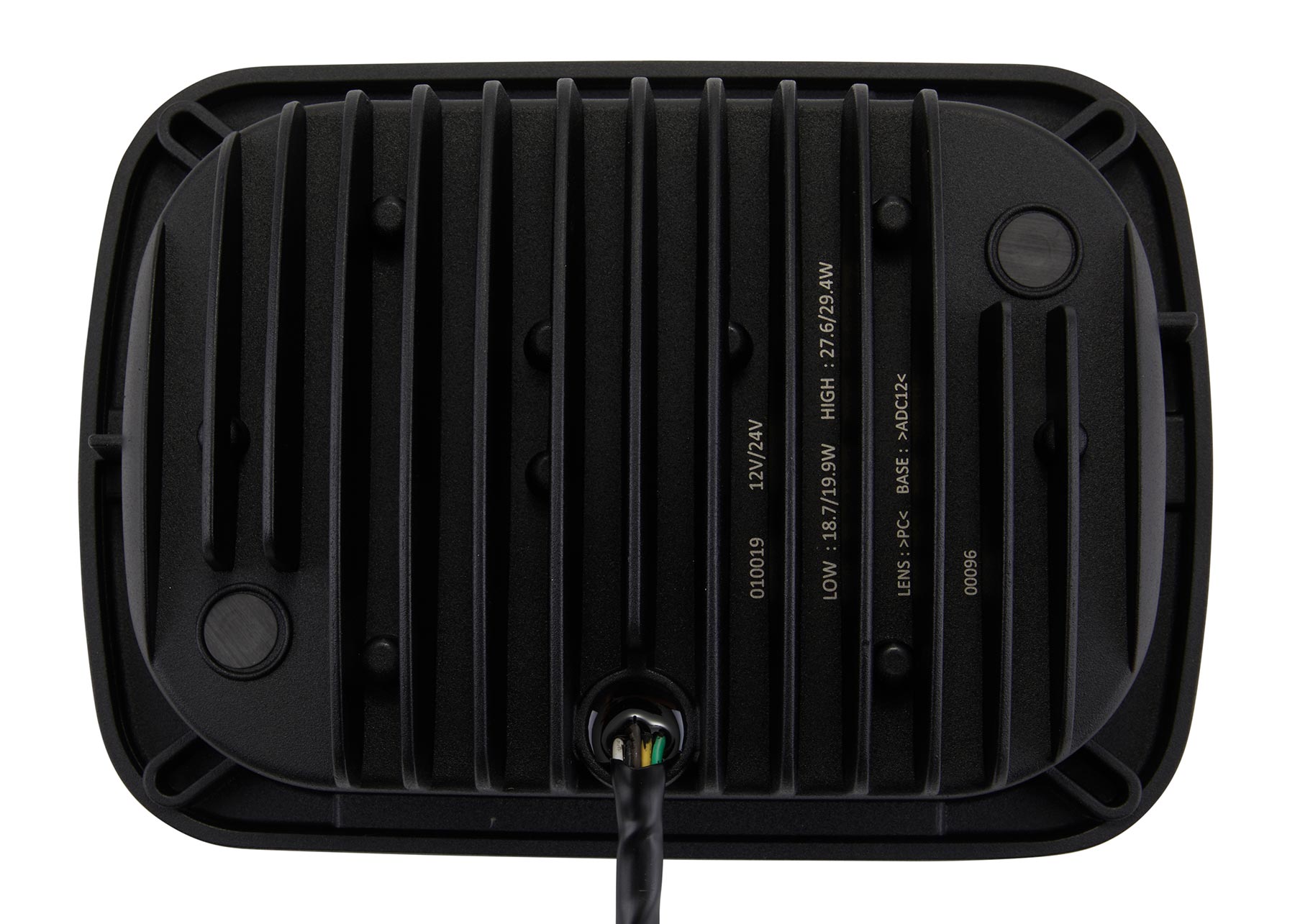

| RL.7.KILWT.M | LED Front Combination Light with High Beam / Low Beam / Position / Indicator / DRL | IP67 | 12/24 | High Beam: 2.09A @ 13.2V, 1.05A @28V, Low Beam: 1.42A @ 13.2V, 0.71A @ 28V, Position: 0.08A @ 13.5V, 0.06A @ 28V, Indicator: 0.61A @ 13.5V, 0.31A @28V, DRL: 0.41A @ 13.5V, 0.21A @28V | 360 | None | Amber/White | Clear | N/A | 1.347 | 142(H) X 200(L) X 82(D) |
Download Product Information
To download product materials, please login or register for an account.
