- Camera with night vision LEDs.
- Viewing angle: 120°.
- Image type: 1/3\, 1/4\ Colour CCD/CMOS.
- TV system: NTSC/PAL.
- Vibration rate: 10G.
- Effective pixels: N: 512*492 pixels P: 512*582 pixels.
- Horizontal resolution: 600TVL.
- Video output: 1.0vp-p, 75Ohm.
- BLC: Back light compensation (Auto).
- White balance: Auto White Balance (Auto).
- Minimum illumination: 0Lux (LED ON).
- S/N ratio: ?48dB.
- Electronic shutter: 1/60~1/100,000 Sec.
- Built-in lens: f: 2.8mm.
- Robust aluminium shell.
- Warranty: 3 Years
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|

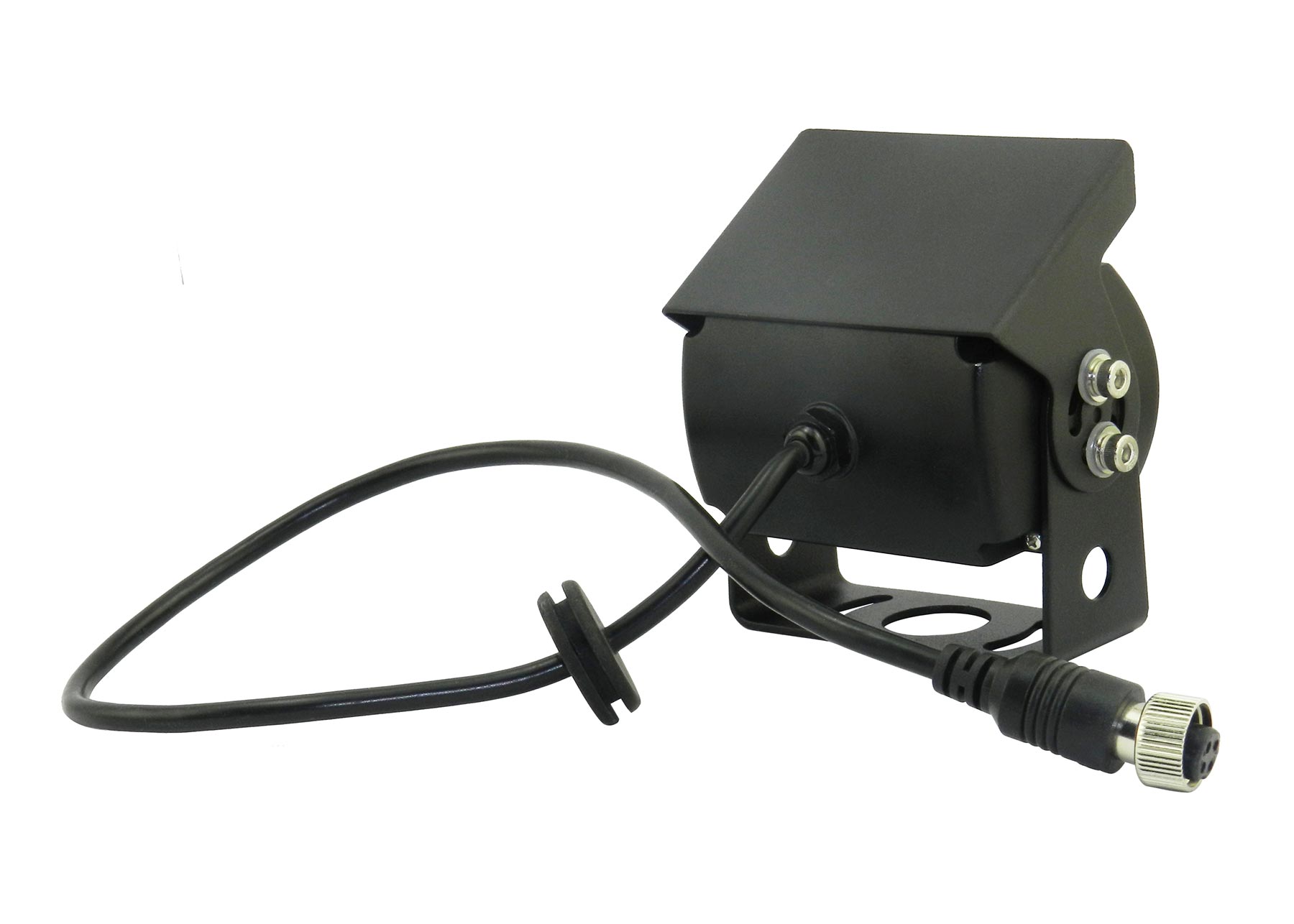

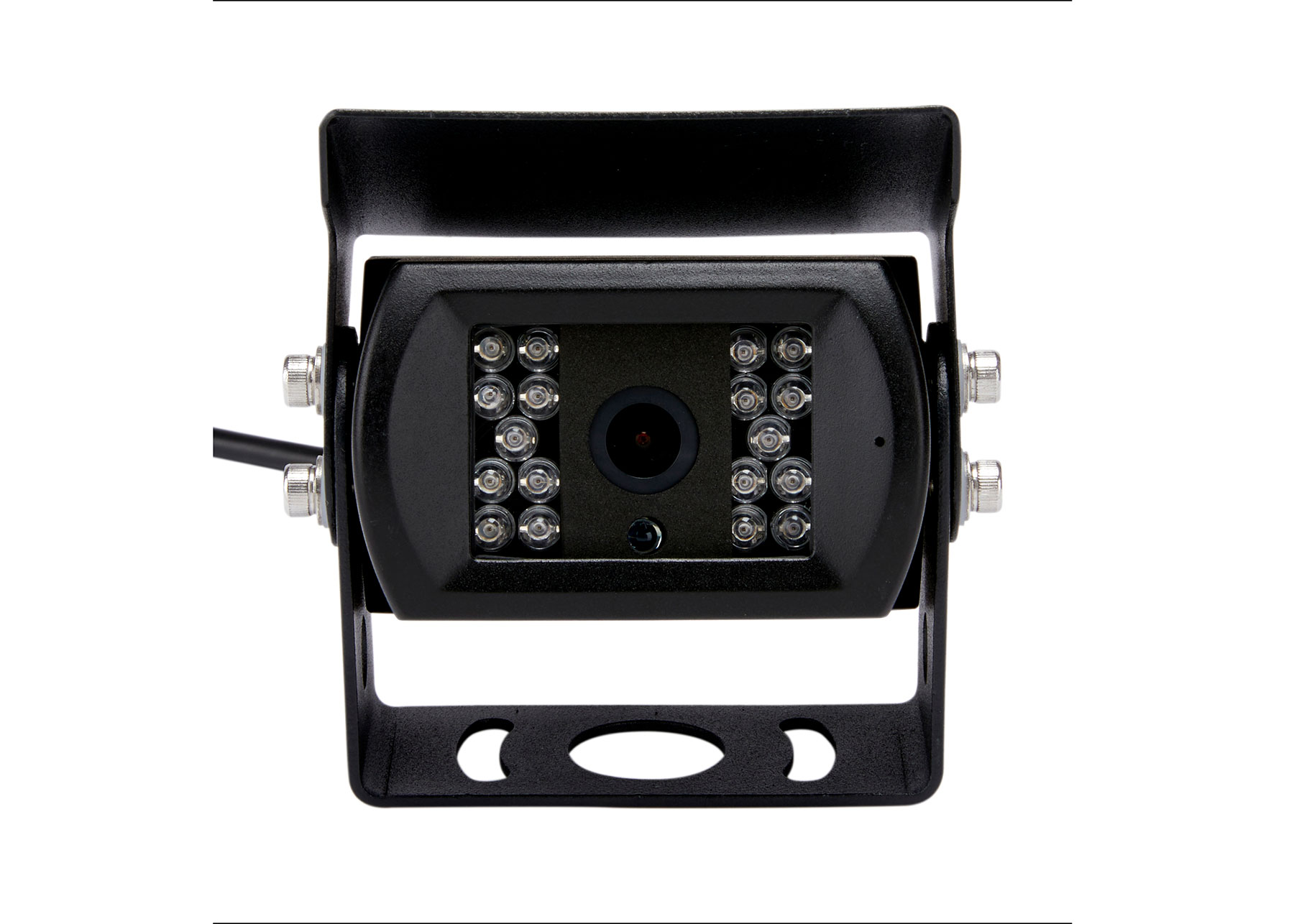

| RSC10 | Night Vision Reverse Camera | IP68 | 12/24 | 0.25A @ 12V, 0.125A @ 24V | 20000 | None | N/A | 0.3 | 77(H) X 86.5(L) X 75(D) |
Download Product Information
- RSC10 Product Spec Sheet Download
To download product materials, please login or register for an account.
