RL122AW
RL122AW

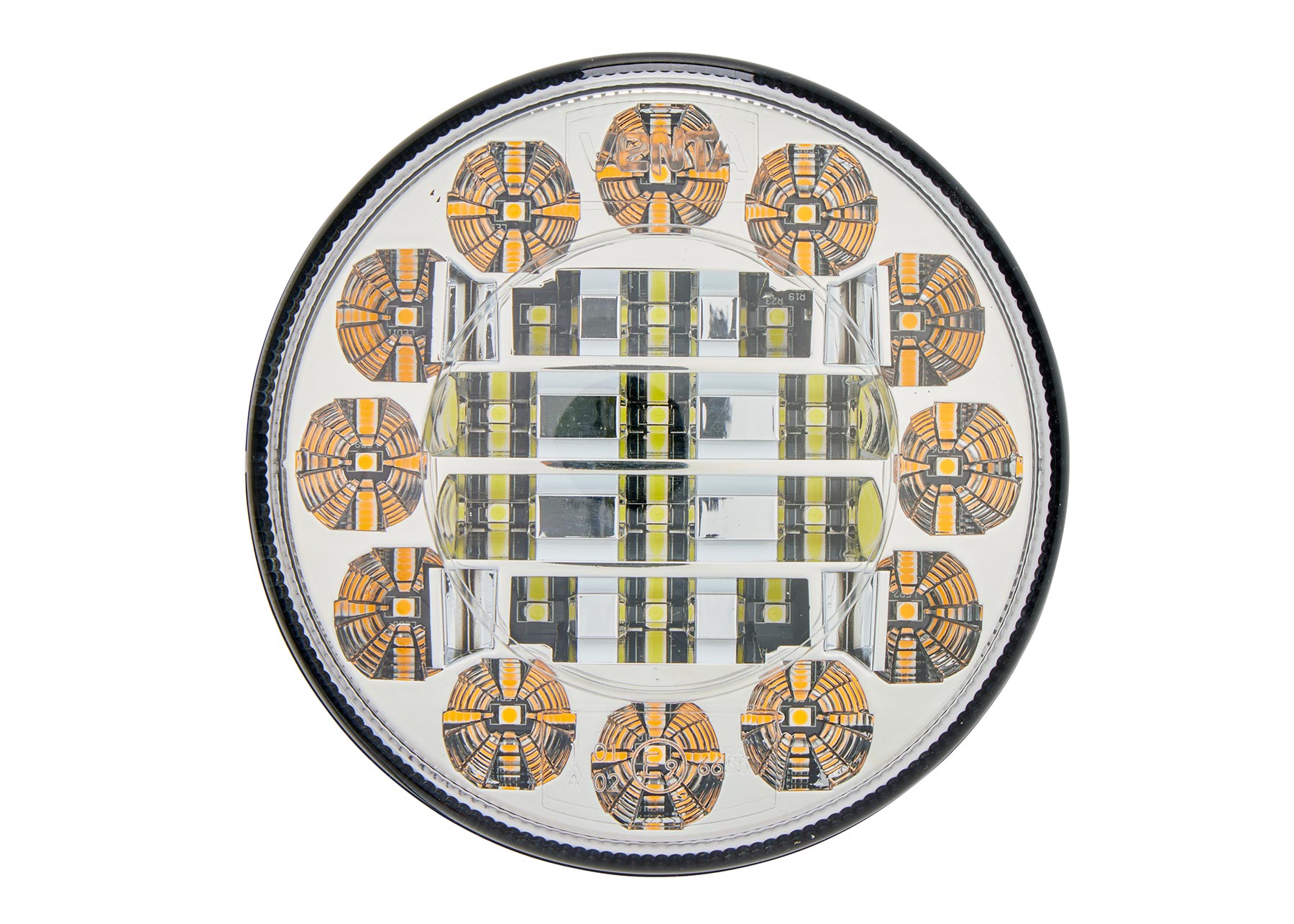

RL122AW Front
RL122AW Front

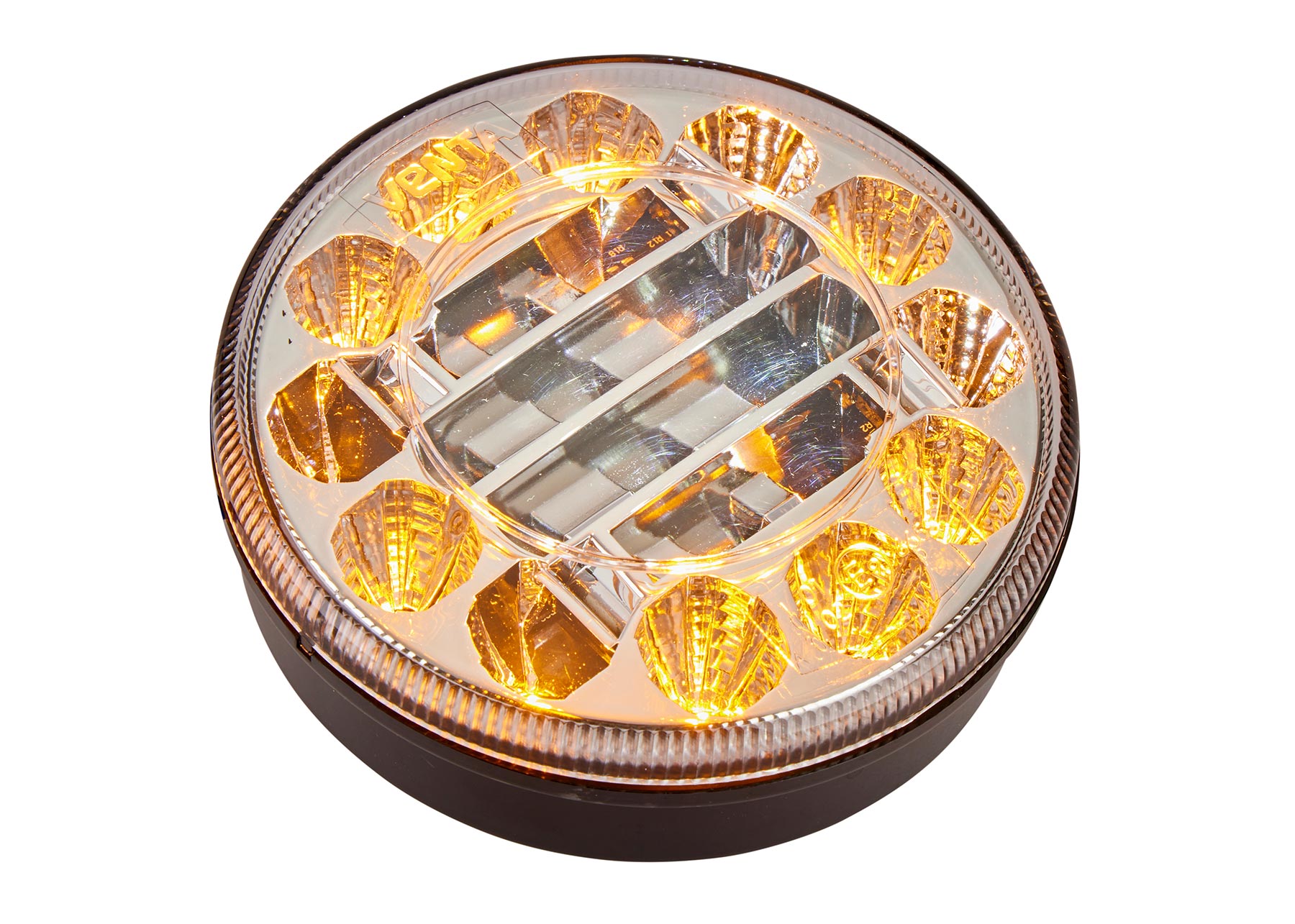

RL122AW Angled Illuminated
RL122AW Angled Illuminated

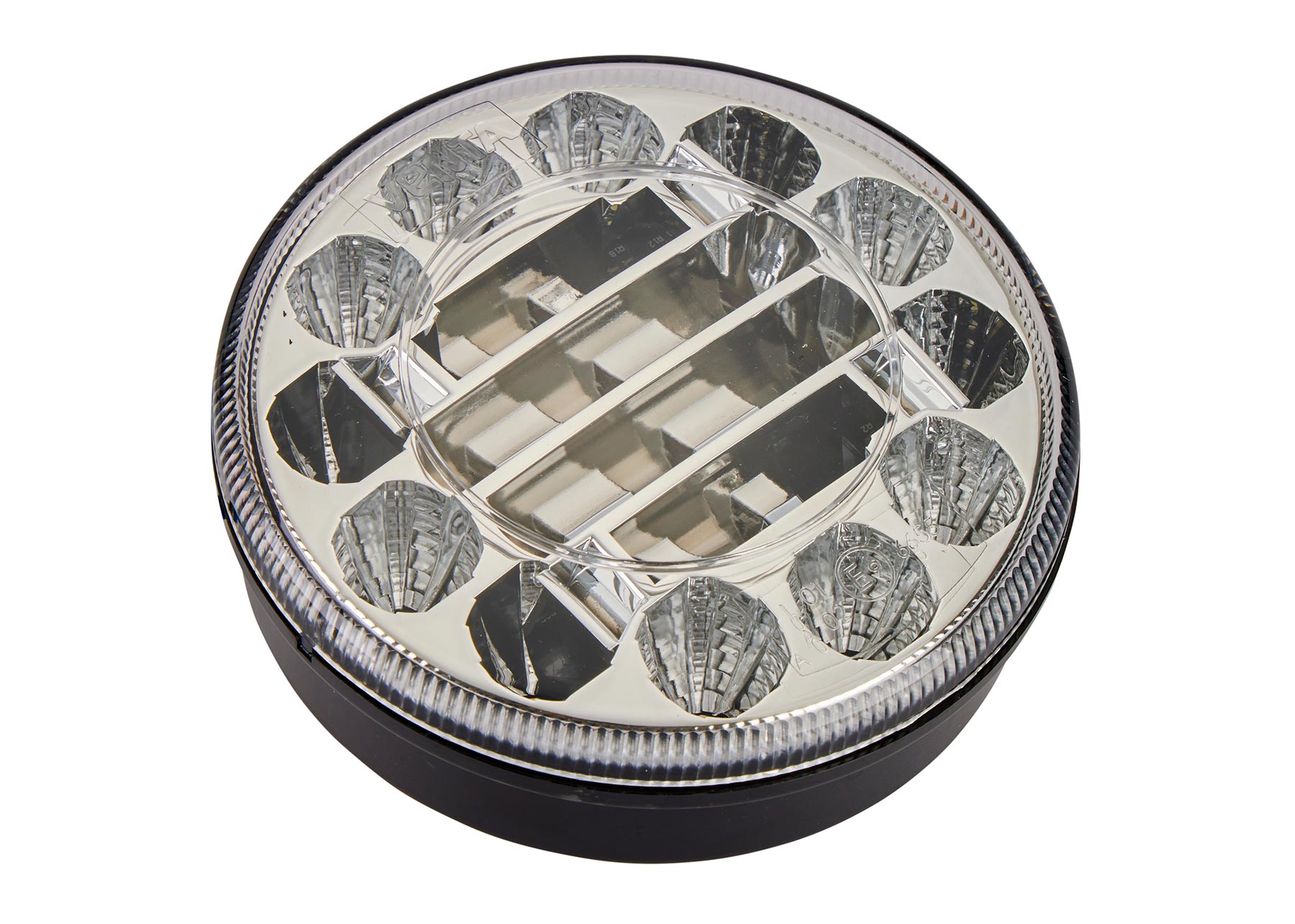

RL122AW Angled
RL122AW Angled

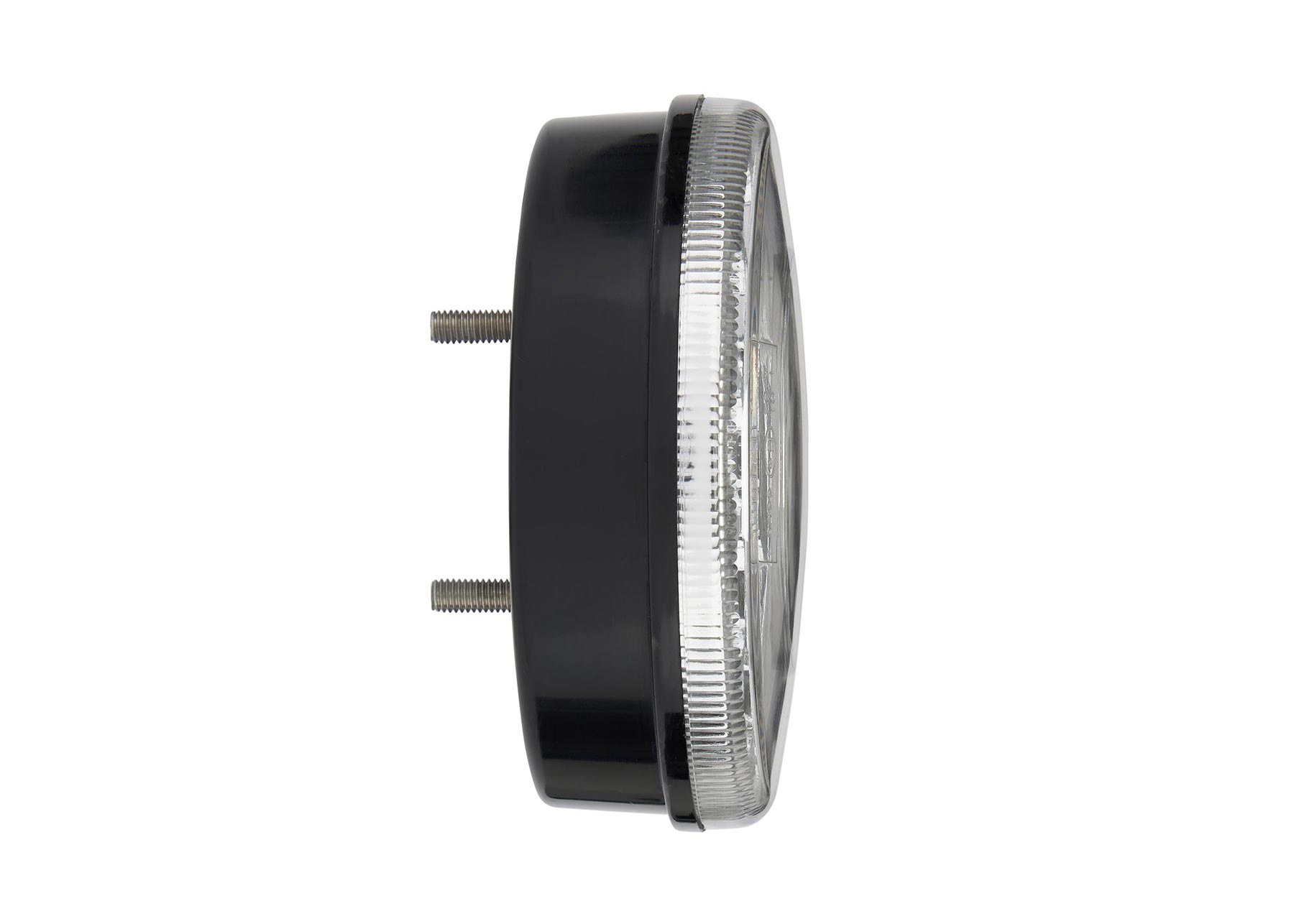

RL122AW Side
RL122AW Side

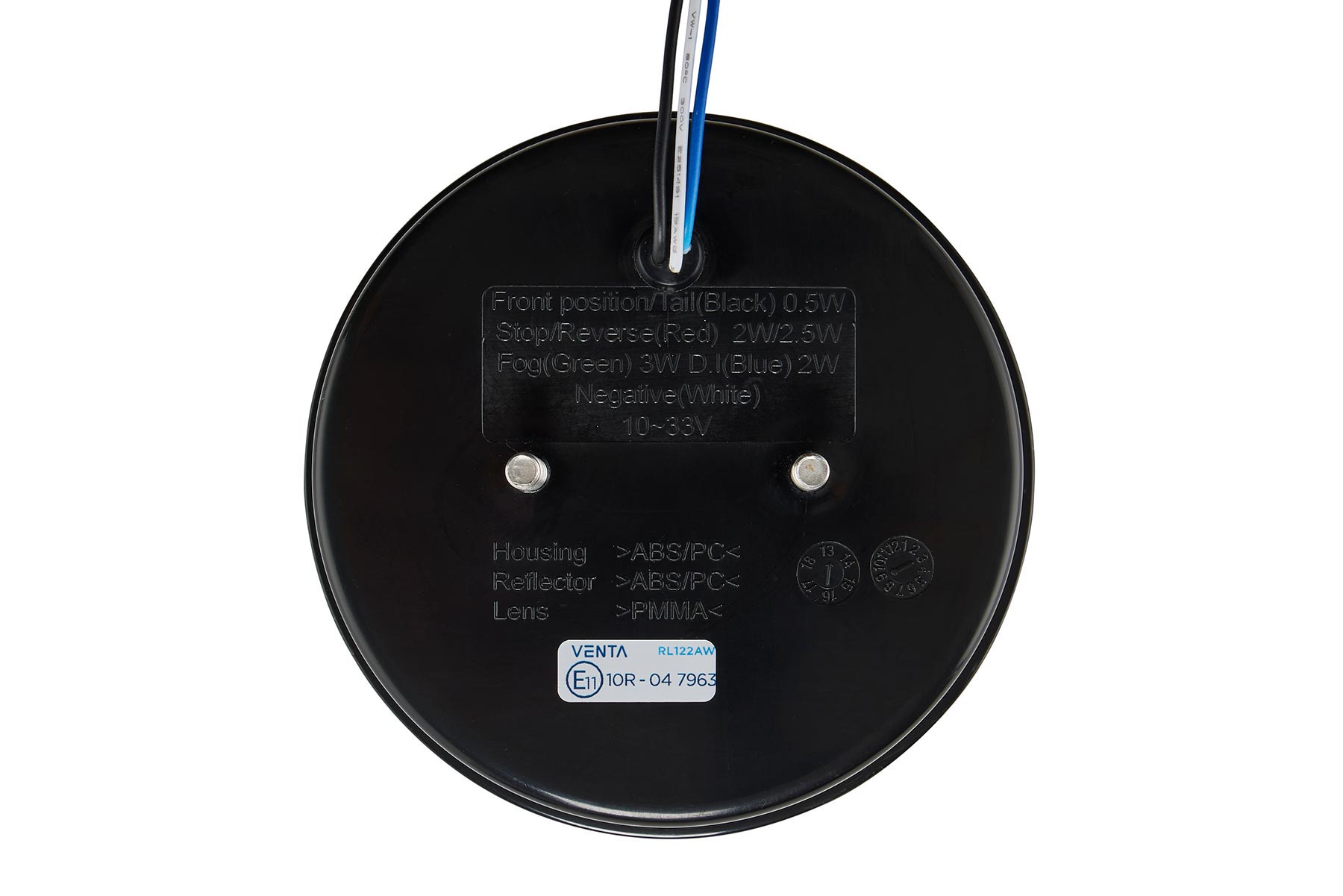

RL122AW Back
RL122AW Back
RL122AW Front
RL122AW Angled Illuminated
RL122AW Angled
RL122AW Side
RL122AW Back

RL122 Series LED Front Light - Position / Indicator

PART NO: RL122AW

Features

  • Front position / indicator functions.
  • Surface mount design.
  • Dual voltage.
  • Twin M6 stud mount.
  • Stop / tail / indicator and fog / reverse options available in the same series.
  • Warranty: 3 Years
  • Approvals: ECE R6, R7, R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

Part Number Product Name IP RATING VOLTAGE (V) DC CURRENT DRAW (AMPS) CABLE LENGTH (MM) CONNECTORS LIGHT COLOUR LENS COLOUR DIAMETER (MM) WEIGHT (KG) Dimensions (MM)
RL122AW 122mm LED Front Light - Position / Indicator IP67 12/24 Position: 0.01A @12V, 0.005A @ 24V, Indicator: 0.15A @12V, 0.075A @ 24V 230 None Amber/White Clear 122 0.224 43(D)

Download Product Information

To download product materials, please login or register for an account.
