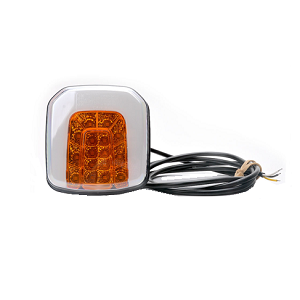

RL145AW
RL145AW

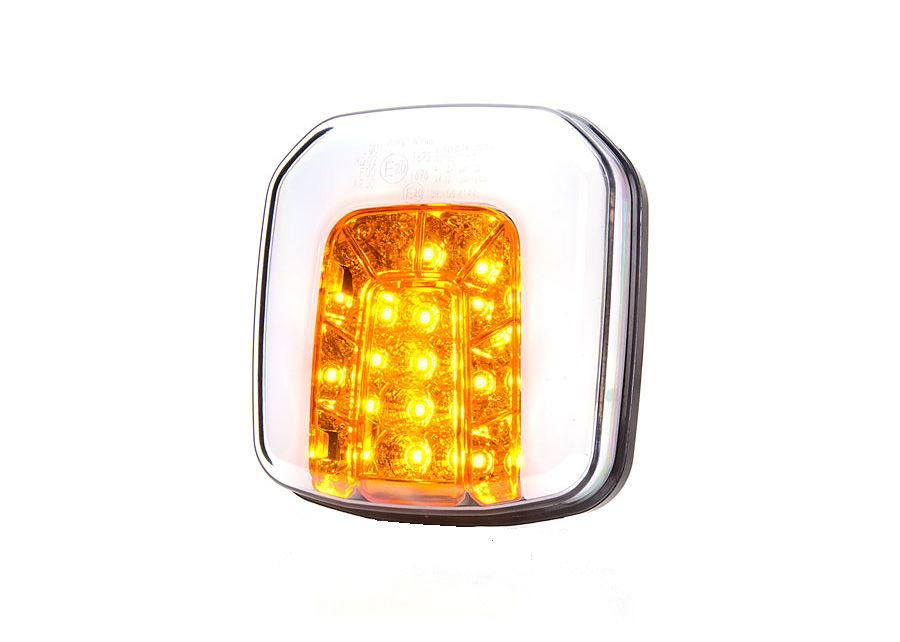

RL145AW Illuminated
RL145AW Illuminated

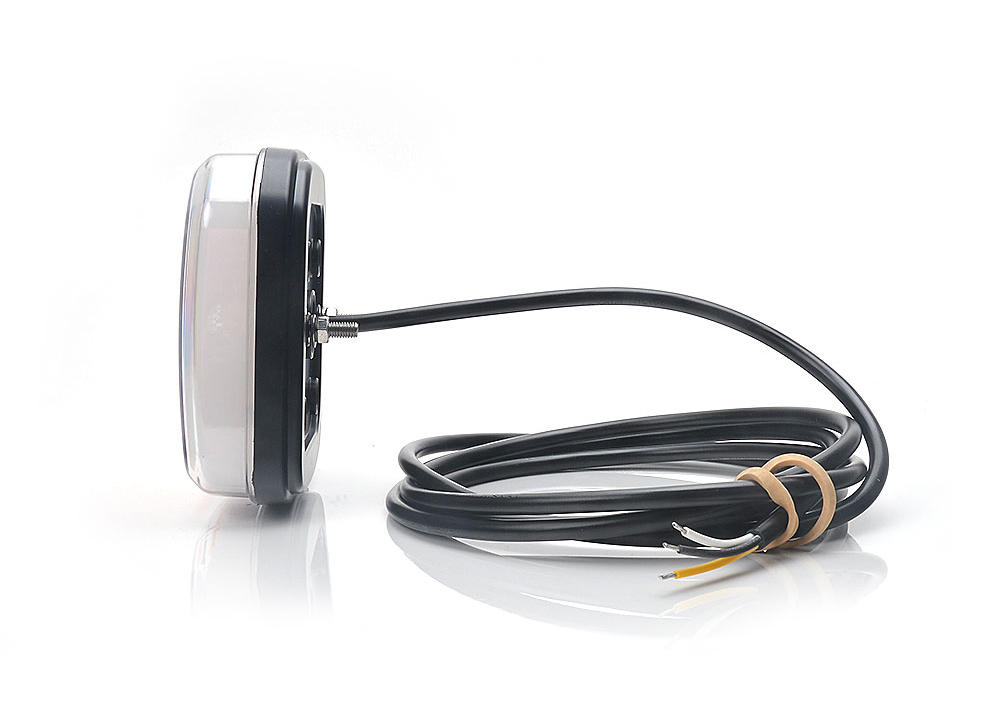

RL145AW Side
RL145AW Side

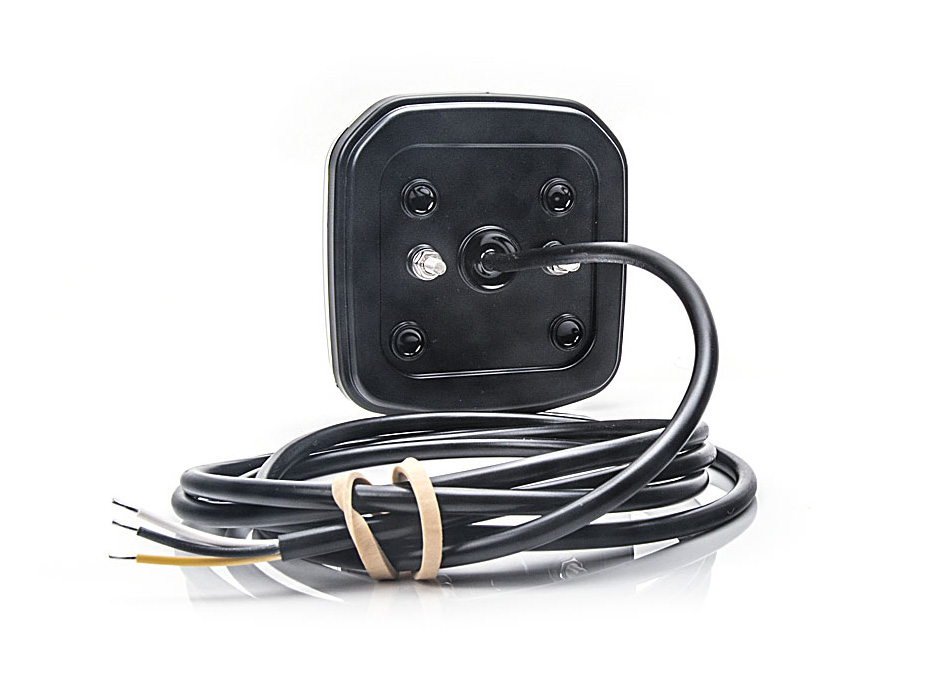

RL145AW Back
RL145AW Back
RL145AW Illuminated
RL145AW Side
RL145AW Back

RL145 Series LED Front Light - Position / Indicator

PART NO: RL145AW

Features

  • Unique homogeneous front position lamp giving identity.
  • LED direction indicator function.
  • Dual voltage.
  • No visible fixings.
  • Stop / tail / indicator option available in the same series.
  • Warranty: 3 Years
  • Approvals: ECE R6, R7, R10.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

Part Number Product Name IP RATING VOLTAGE (V) DC CURRENT DRAW (AMPS) CABLE LENGTH (MM) CONNECTORS LIGHT COLOUR LENS COLOUR DIAMETER (MM) WEIGHT (KG) Dimensions (MM)
RL145AW LED Front Light - Position / Indicator IP68 12/24 Position: 0.09A @ 12V, 0.004A @ 24V, Indicator: 0.32A @ 12V, 0.155A @ 24V 2000 None Amber/White Amber/Clear N/A 0.313 102(H) X 108(L) X 38(D)

Download Product Information

To download product materials, please login or register for an account.
