- Progressive indicator.
- Must be mounted horizontally.
- Crash resistant polycarbonate lens.
- 50,000hr LED lifetime.
- Warranty: 3 Years
- Approvals: ECE R3, R4, R6, R7, R10, R23, R38.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

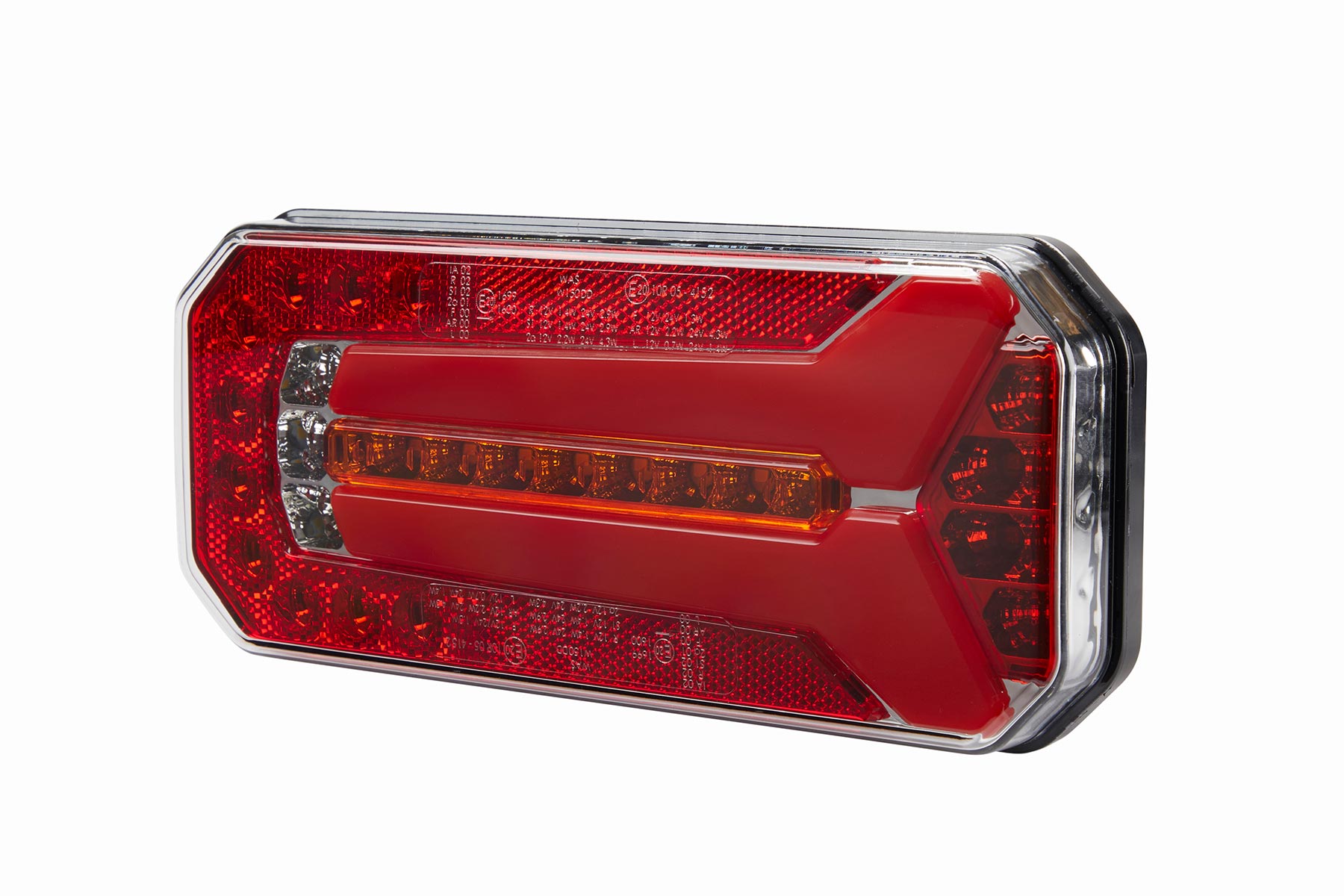

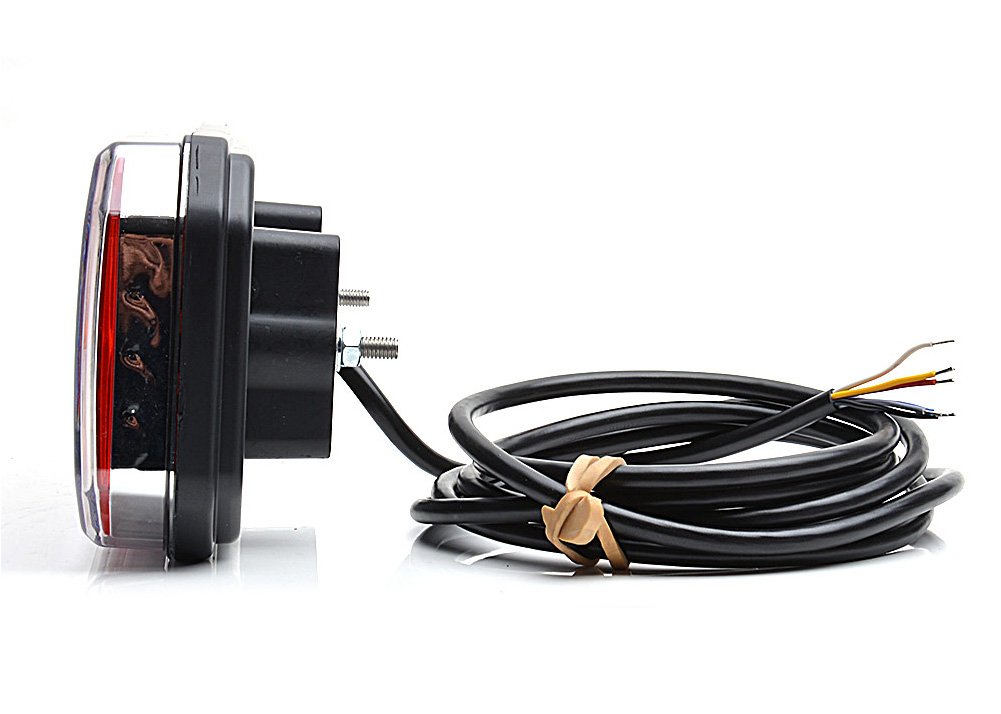

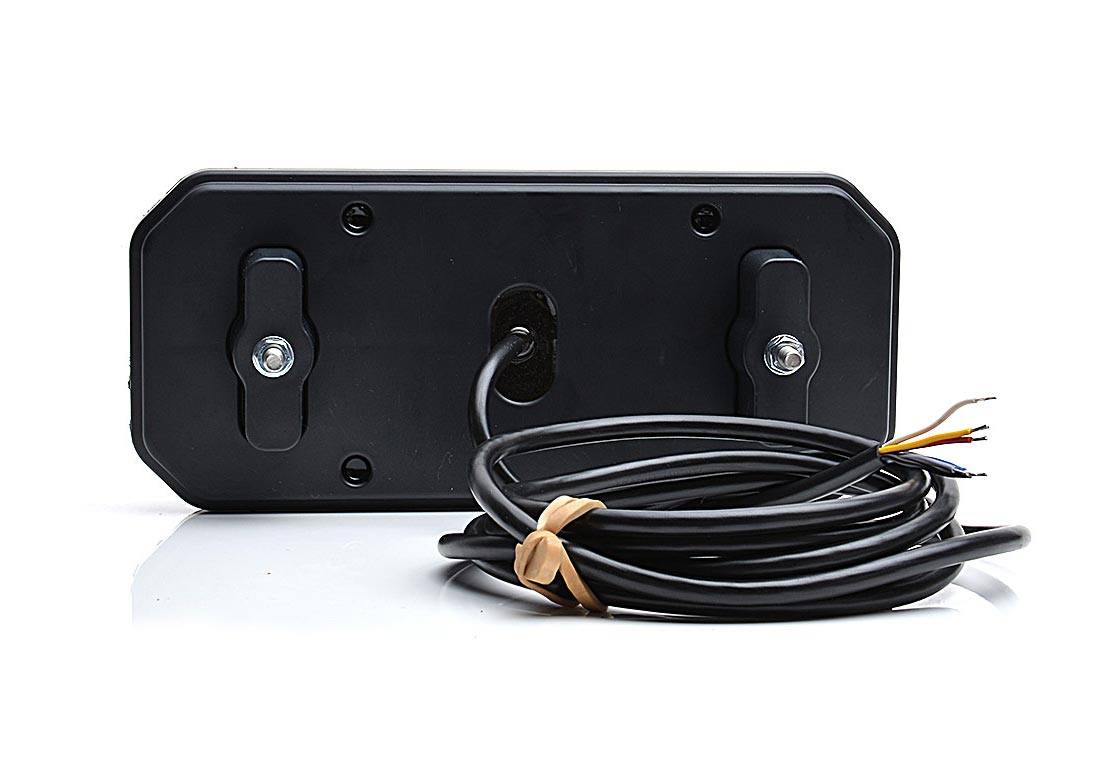

| RL.150.BTIFR.M | LED Rear Combination Light - Stop / Tail / Progressive Indicator / Fog / Reverse / Reflector | IP68 | 12/24 | Stop: 0.24A @ 12V, 0.12A @ 24V, Tail: 0.12A @ 12V, 0.06A @ 24V, Indicator: 0.36A @ 12V, 0.18A @ 24V, Reverse: 0.36A @ 12V, 0.18A @ 24V, Fog: 0.11A @ 12V, 0.05A @ 24V | 2000 | None | Red/White/Amber | Red/Amber/Clear | N/A | 0.667 | 104(H) X 230(L) X 40(D) |
