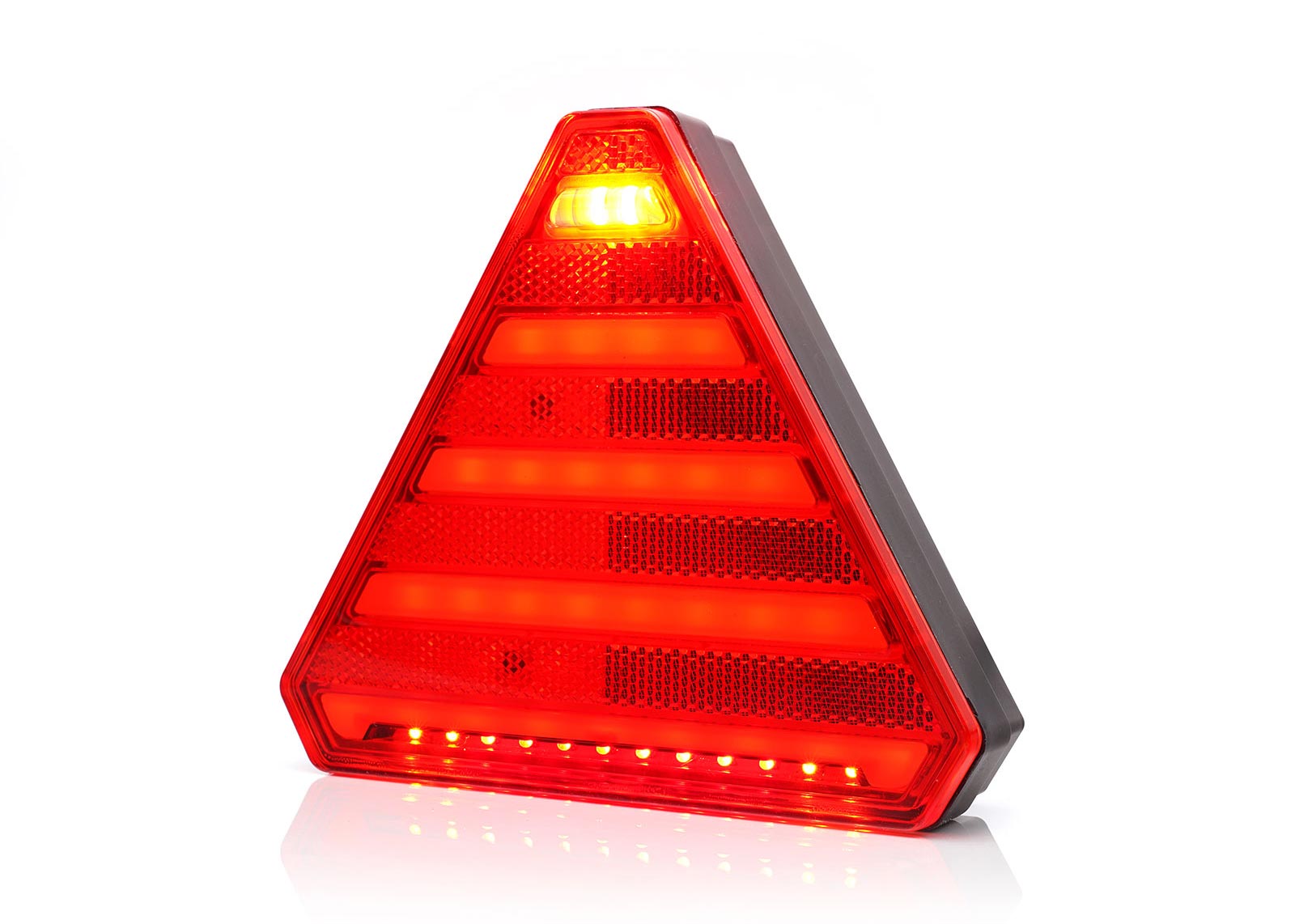

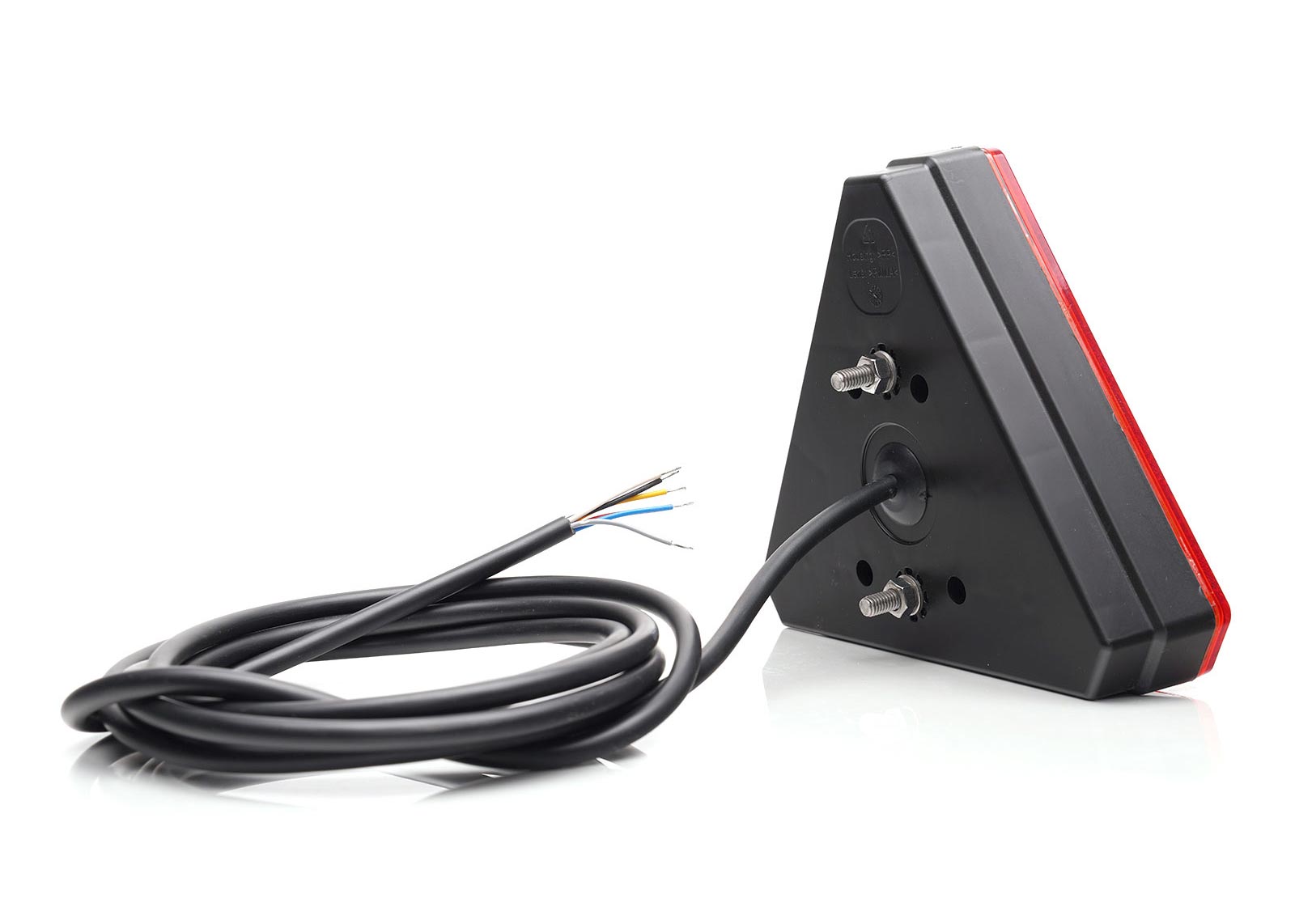

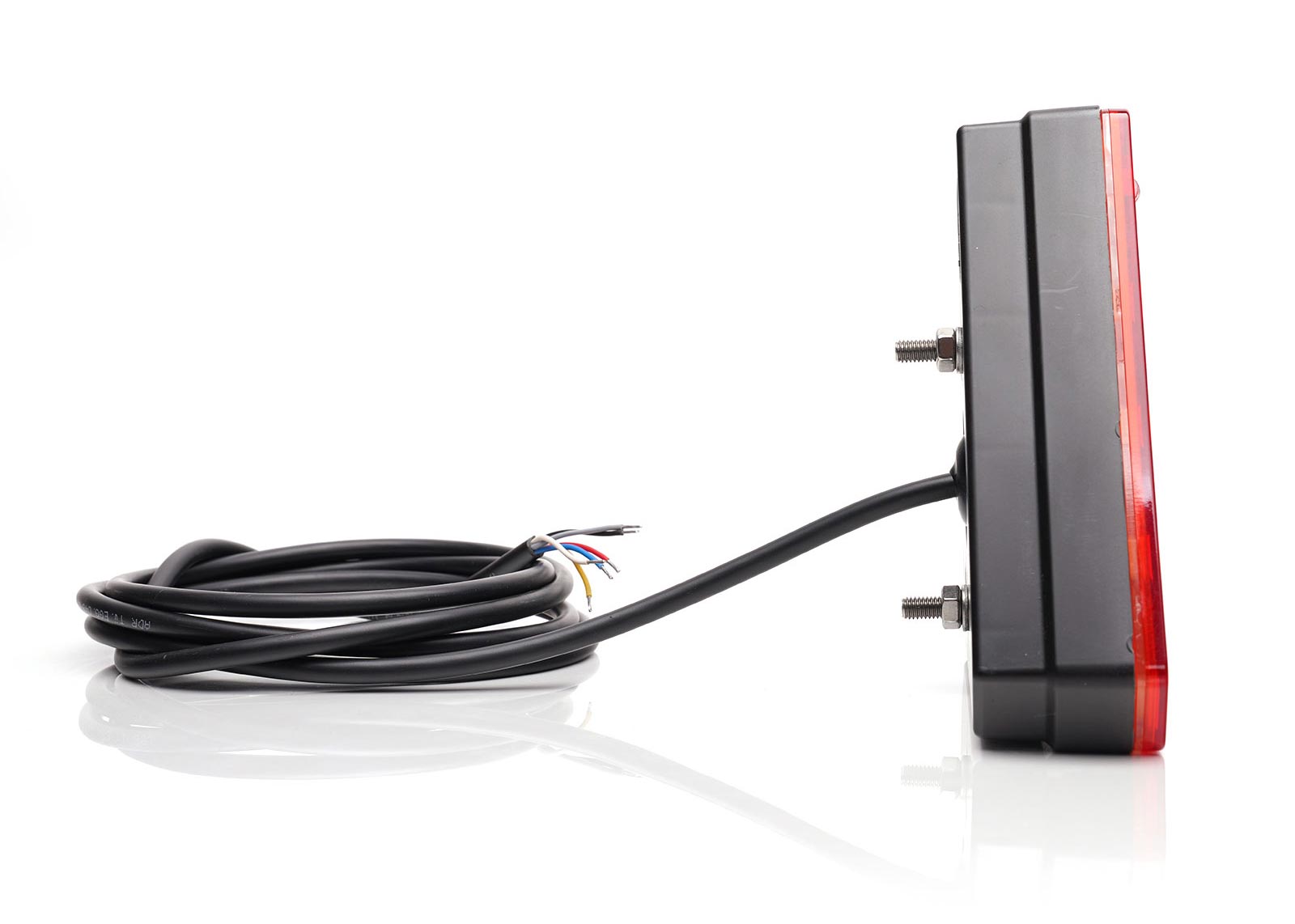

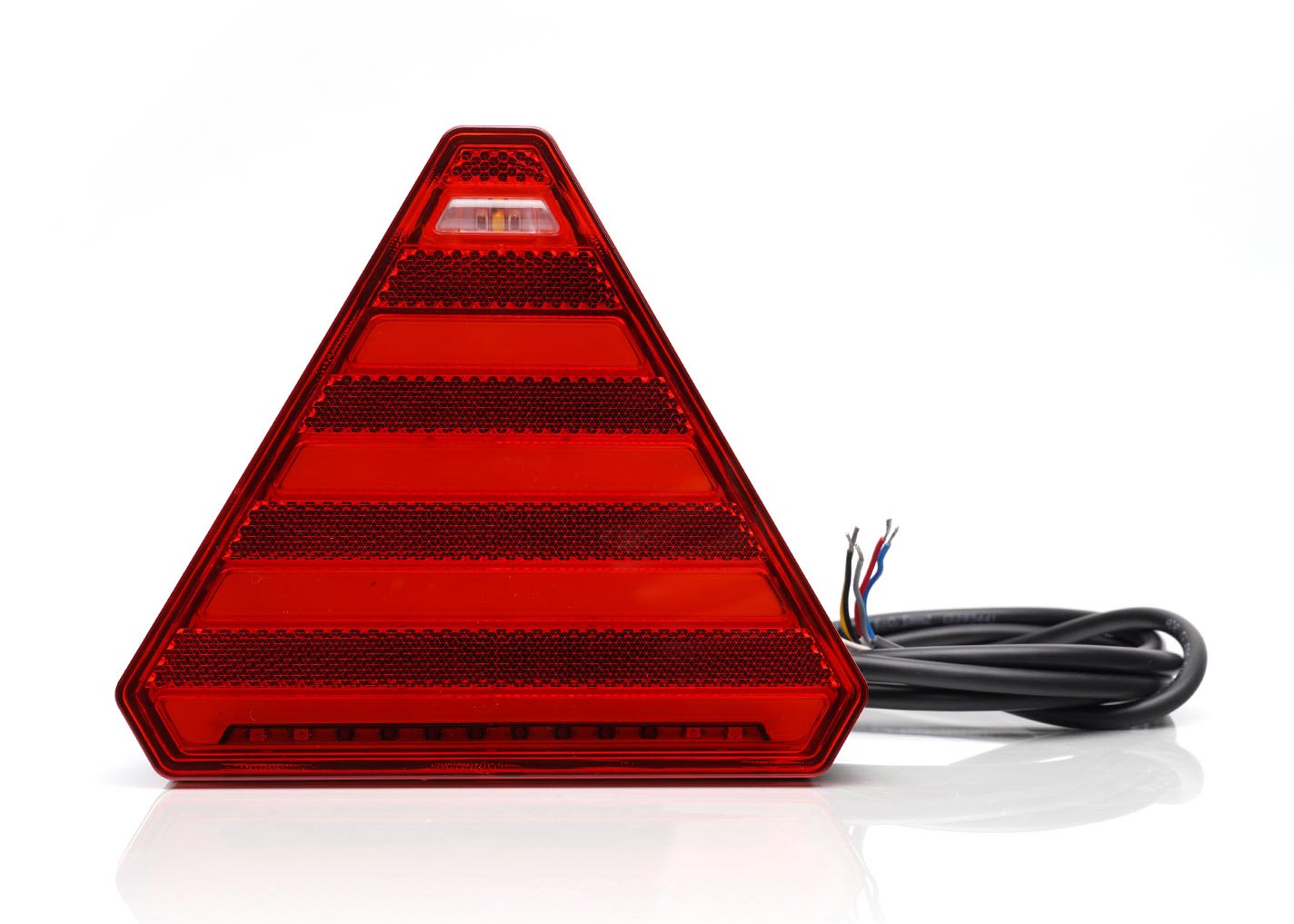

- For use on trailers only.
- Ideally suited where space is limited, particularly useful on tipper trailers and car transporters.
- All rear light functions in one unit - stop / tail / indicator / fog / reverse / reflector removing the cost of having separate units.
- Signature dotless tail and indicator lights are highly visible to improve safety on the road.
- The triangular shape, clean design with no visible fixing holes provides a sleek, modern look for your vehicle.
- Available with or without pre-terminated connectors.
- Some variants made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R4, R10, R148, R150.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL1619 | LED Triangular Trailer Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector | IP69K | 12/24 | Stop: 0.58A @ 12V, 0.29A @ 24V, Tail: 0.5A @ 12V, 0.29A @ 24V, Indicator: 1.83A @ 12V, 0.92A @ 24V, Fog: 0.54A @ 12V, 0.27A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V | 2000 | None | Red/White/Amber | Red/Clear | N/A | 0.582 | 143(H) X 163(L) X 53.5(D) |
| RL161901 | LED Triangular Trailer Rear Combination Light with Superseal Connector | IP69K | 12/24 | Stop: 0.58A @ 12V, 0.29A @ 24V, Tail: 0.5A @ 12V, 0.29A @ 24V, Indicator: 1.83A @ 12V, 0.92A @ 24V, Fog: 0.54A @ 12V, 0.27A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V | 2000 | Superseal | Red/Amber | Red/Clear | N/A | 0.582 | 143(H) X 163(L) X 53.5(D) |
| RL161902 | LED Triangular Trailer Rear Combination Light - Stop / Tail / Indicator / Fog / Reverse / Reflector | IP69K | 12/24 | Stop: 0.58A @ 12V, 0.29A @ 24V, Tail: 0.5A @ 12V, 0.29A @ 24V, Indicator: 1.83A @ 12V, 0.92A @ 24V, Fog: 0.54A @ 12V, 0.27A @ 24V, Reverse: 0.5A @ 12V, 0.25A @ 24V | 2000 | Deutsch | Red/White/Amber | Red/Clear | N/A | 0.582 | 143(H) X 163(L) X 53.5(D) |
Download Product Information
- RL1619 Product Spec Sheet Download
- RL161901 Product Spec Sheet Download
- RL161902 Product Spec Sheet Download
- RL1619 Technical Drawing Download
- RL161901 Technical Drawing Download
- RL161902 Technical Drawing Download
- RL1619 R10 Approval Download
- RL1619 R4 Approval Download
- RL1619 R150 Approval Download
- RL1619 R148 Approval Download
To download product materials, please login or register for an account.
