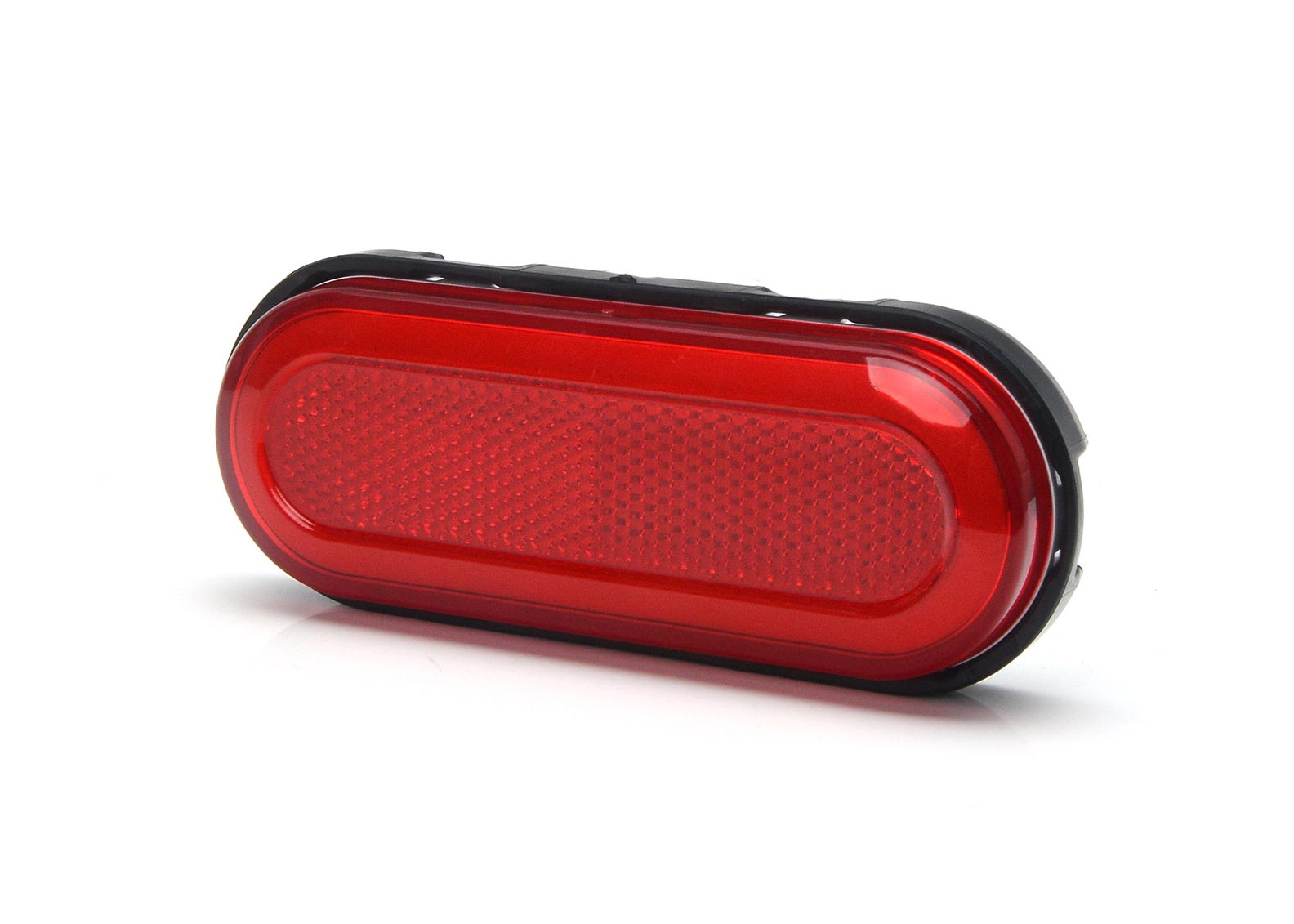

- Modern, dotless side marker light with an integrated reflector.
- Approved for vertical and horizontal mounting.
- ADR-approved version available.
- Supplied pre-terminated with a Superseal connector as standard for fast and simple installation.

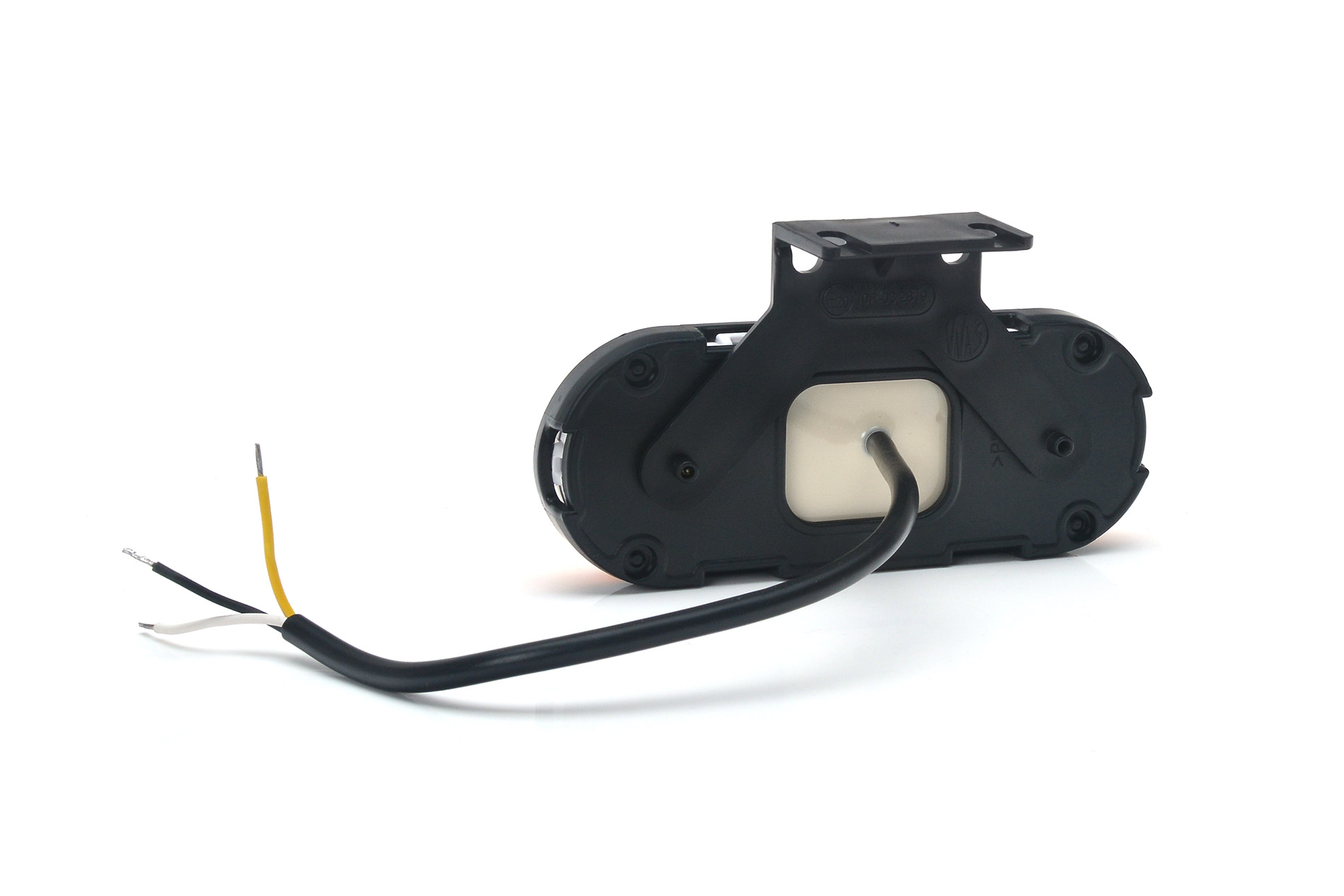

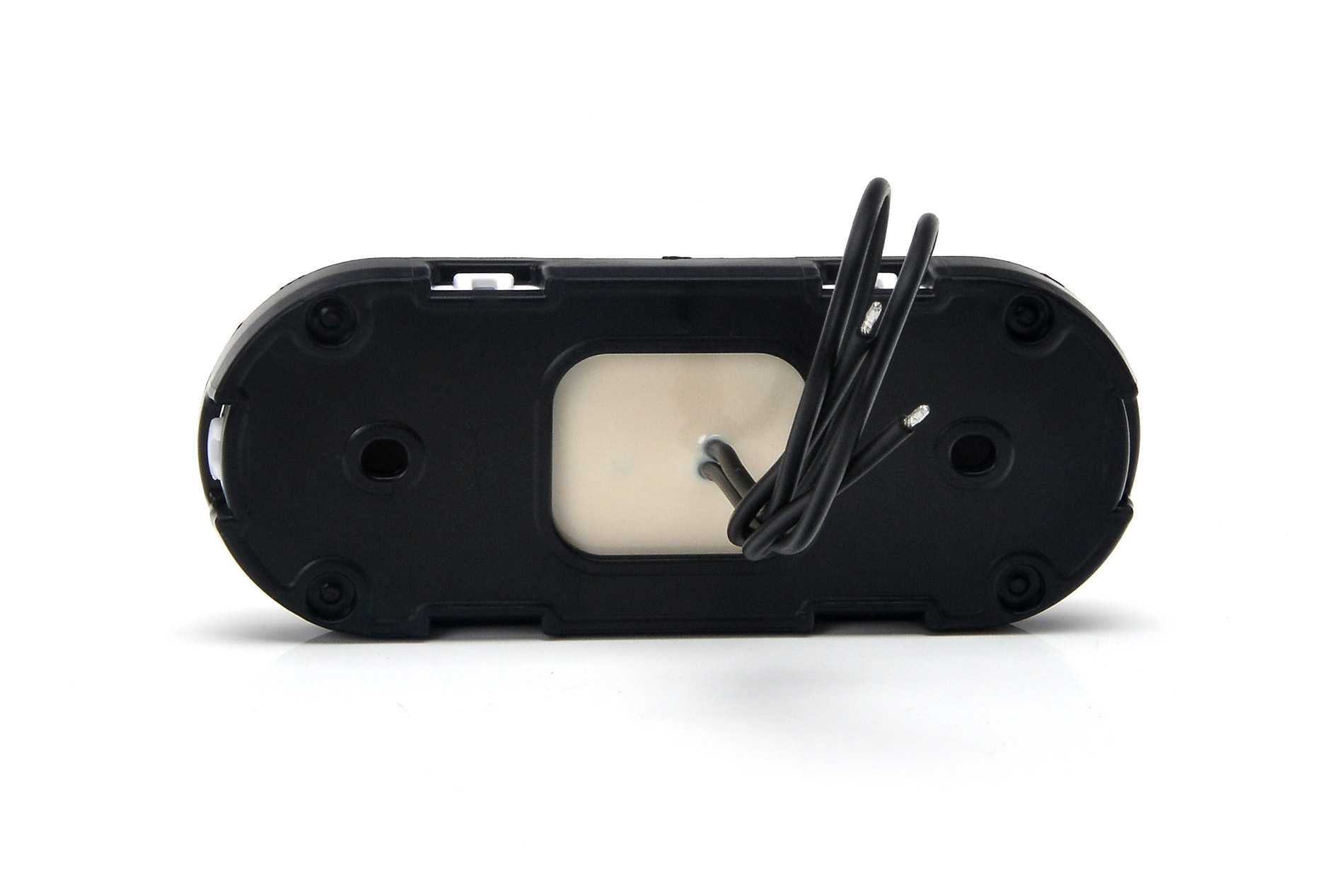

- Screws go through the back plate only and not the lamp, maintaining the integrity of the seal.
- Side, side with direction indicator and front marker light options also available.
- Warranty: 3 Years
- Approvals: ECE R3, R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RL198003 | Dotless LED Rear Marker Light with Reflector and Superseal Connector | IP68 | 12/24 | 0.058A @ 12V, 0.063A @ 24V | 250 | Superseal | Red | Red | N/A | 0.097 | 49(H) X 124(L) X 20(D) |
