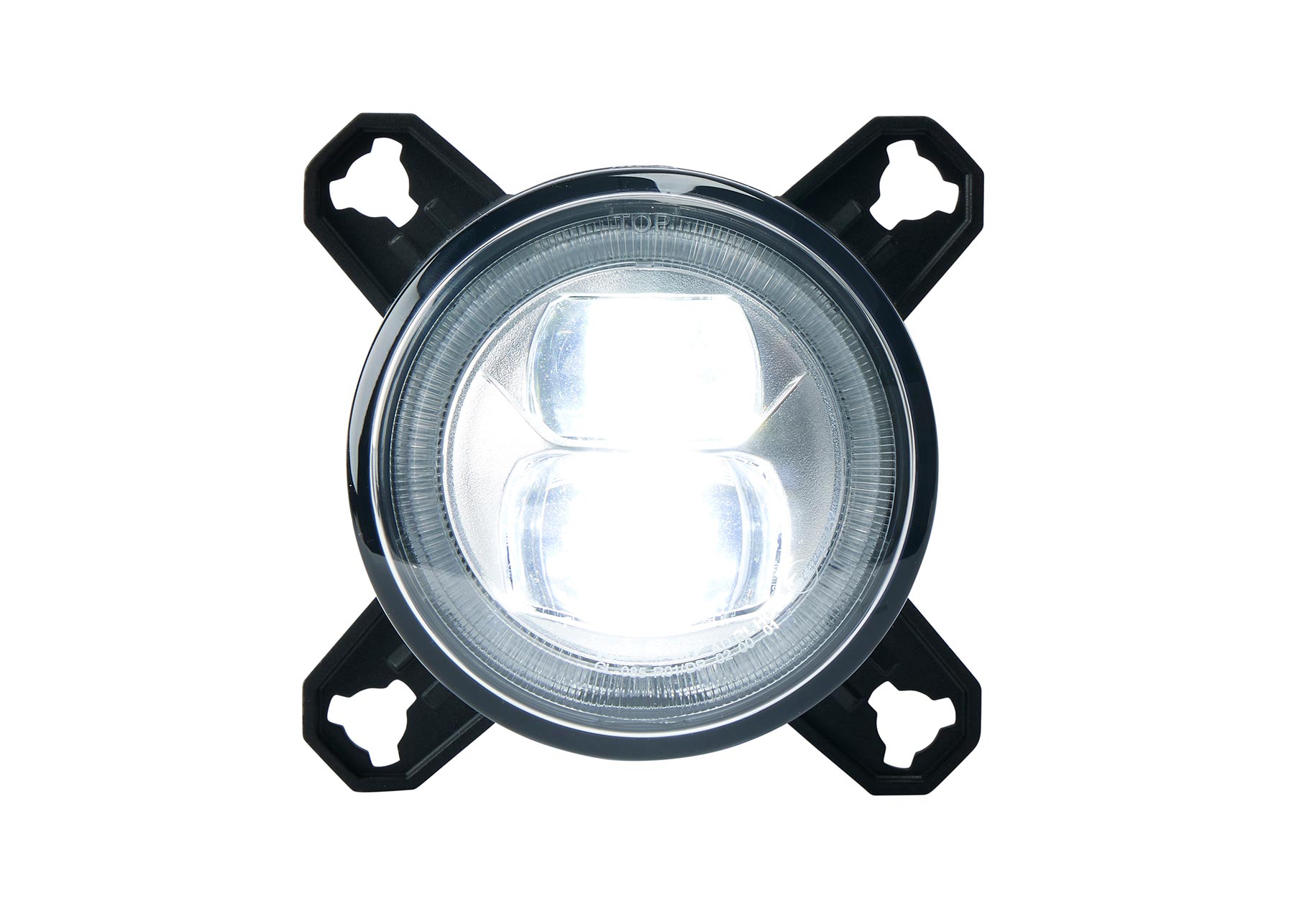

RL.G90.LWT.M Dipped Beam
RL.G90.LWT.M Dipped Beam

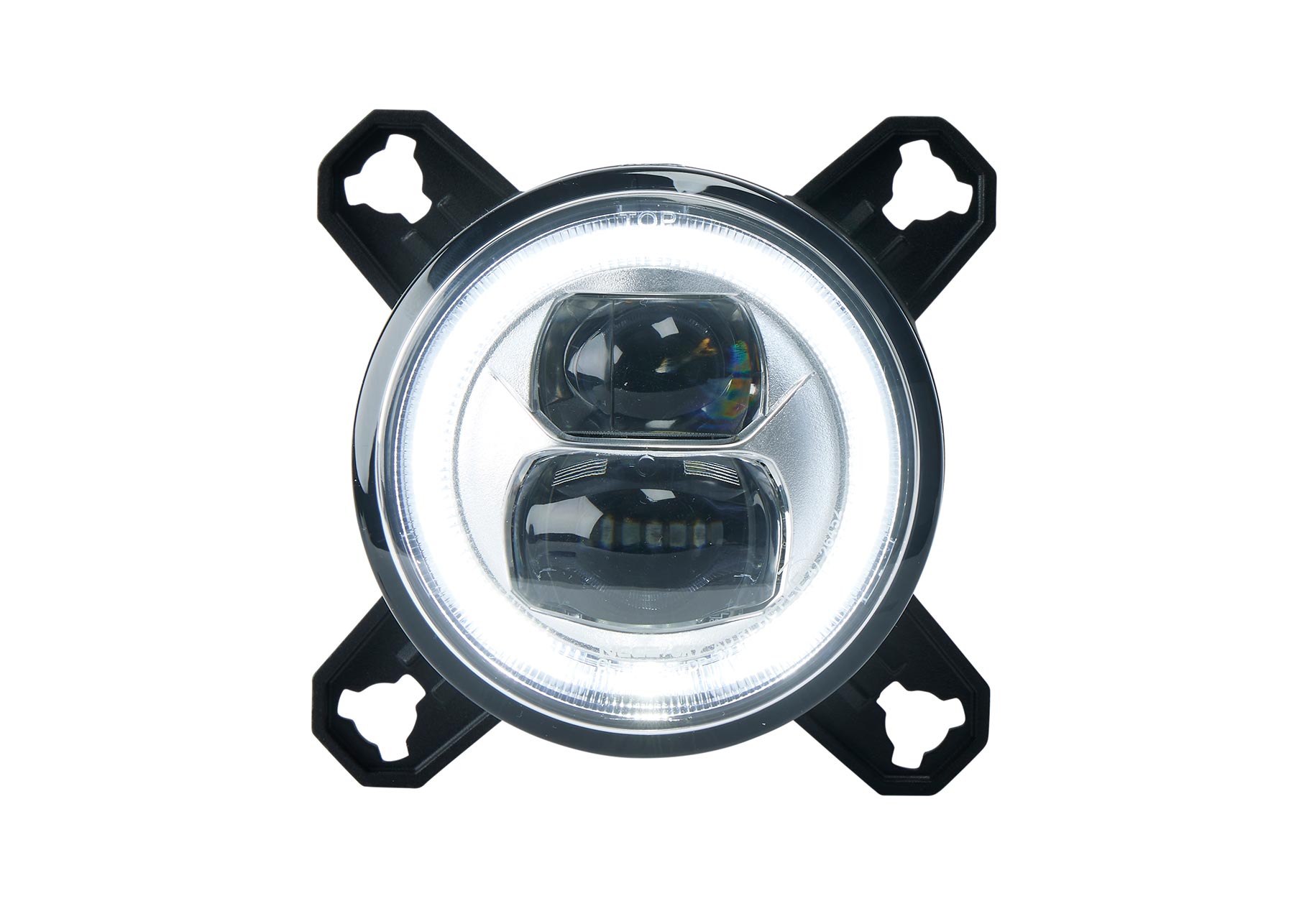

RL.G90.LWT.M DRL
RL.G90.LWT.M DRL

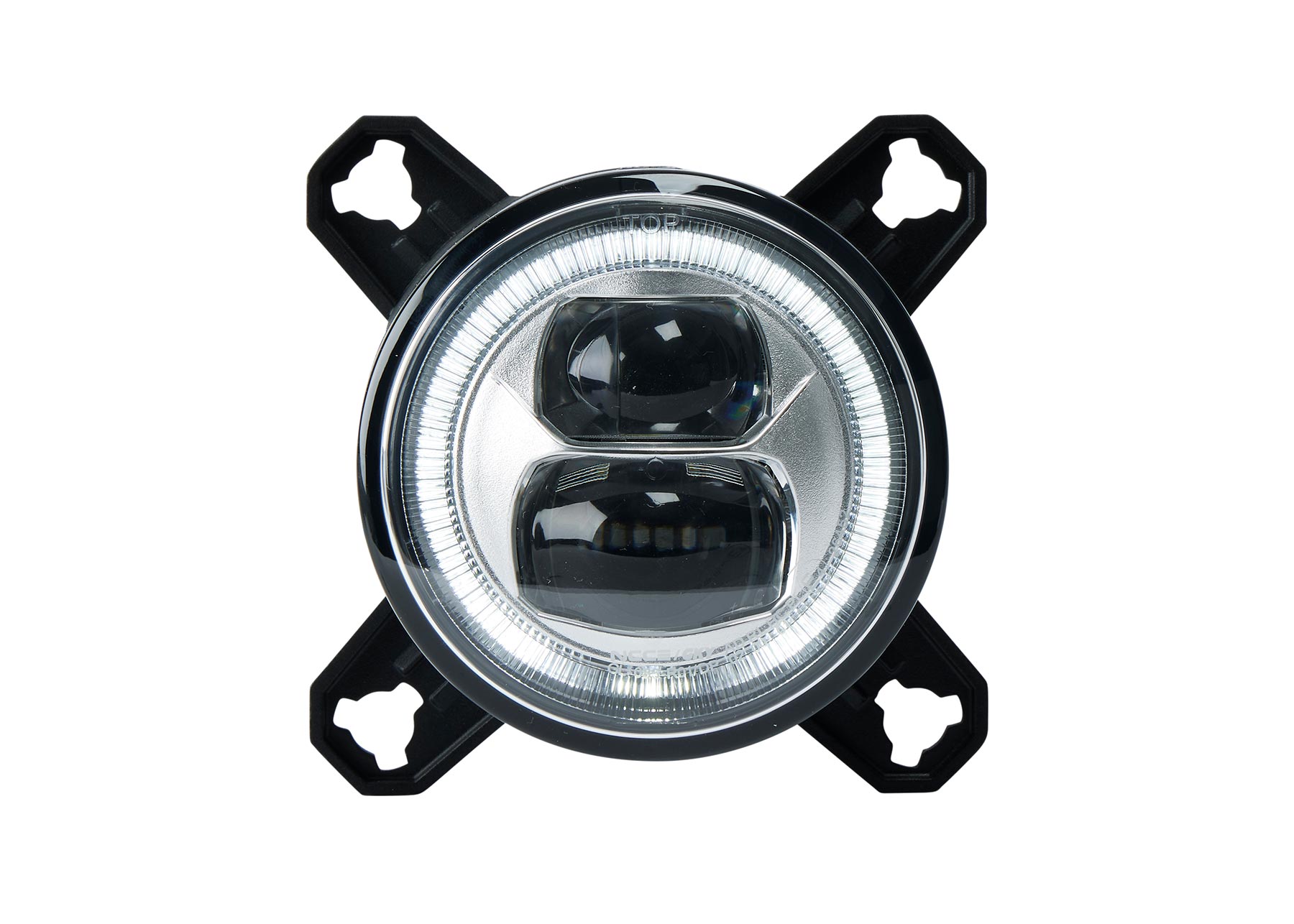

RL.G90.LWT.M Position Light
RL.G90.LWT.M Position Light

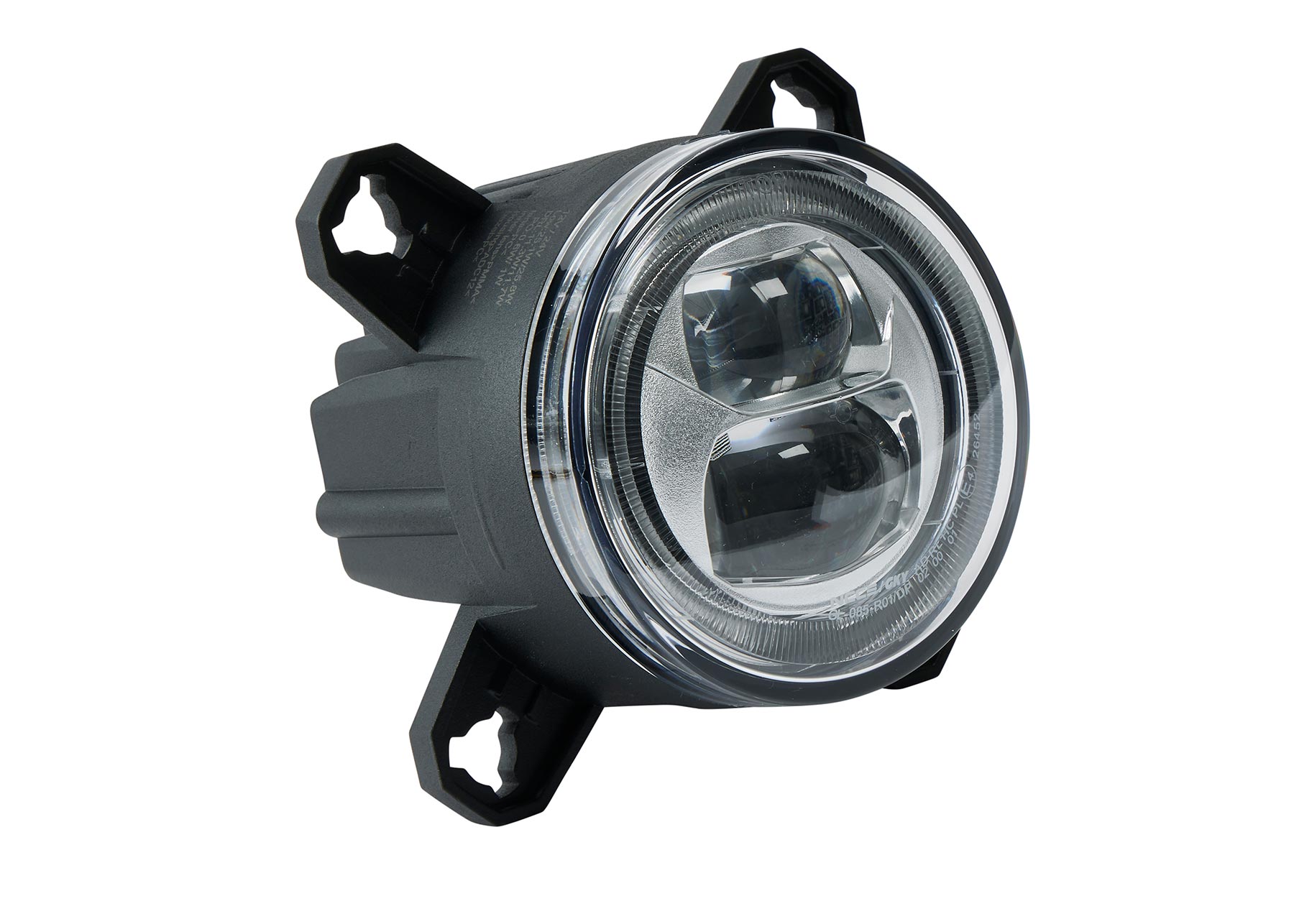

RL.G90.LWT.M Angled
RL.G90.LWT.M Angled

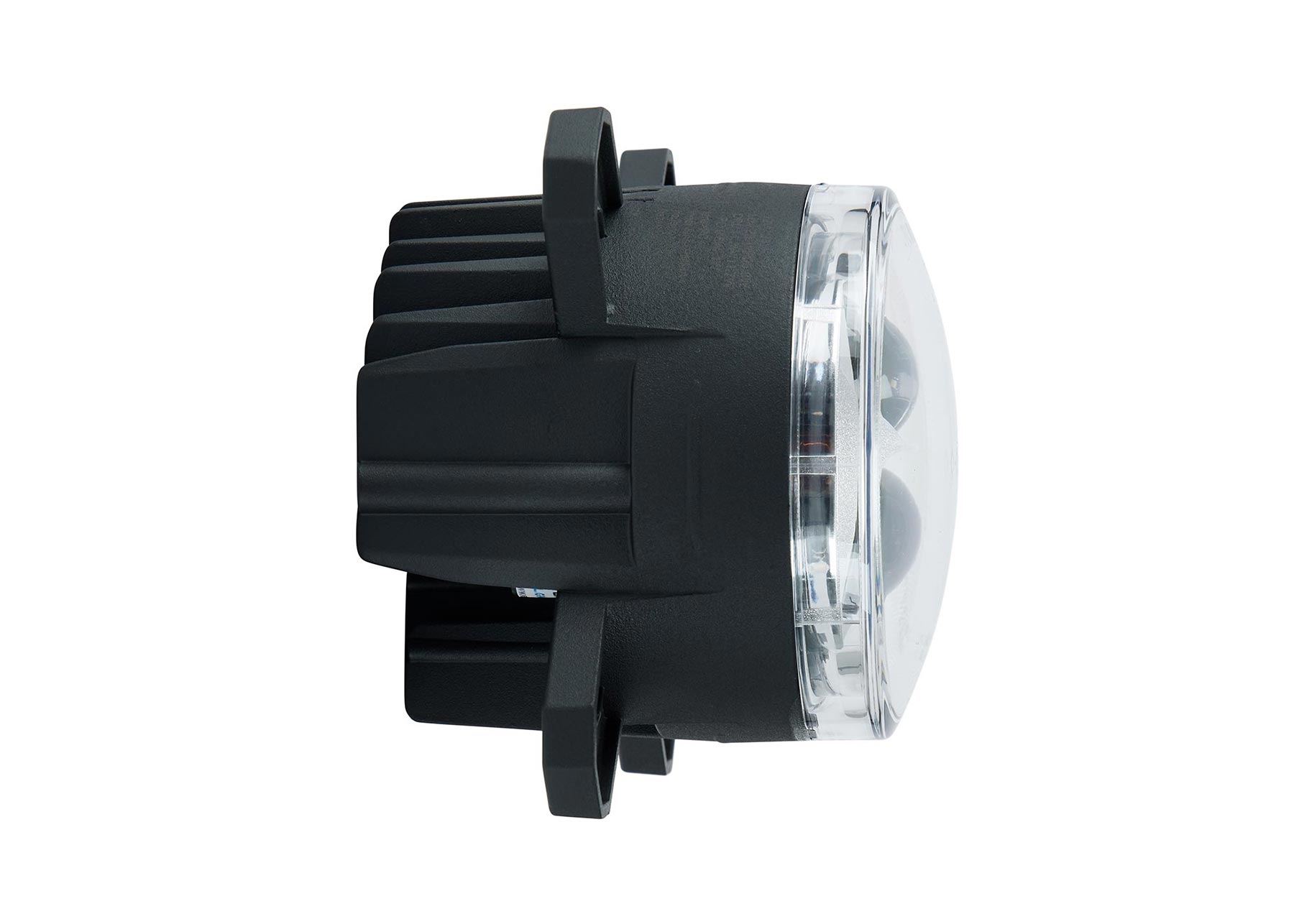

RL.G90.LWT.M Side
RL.G90.LWT.M Side

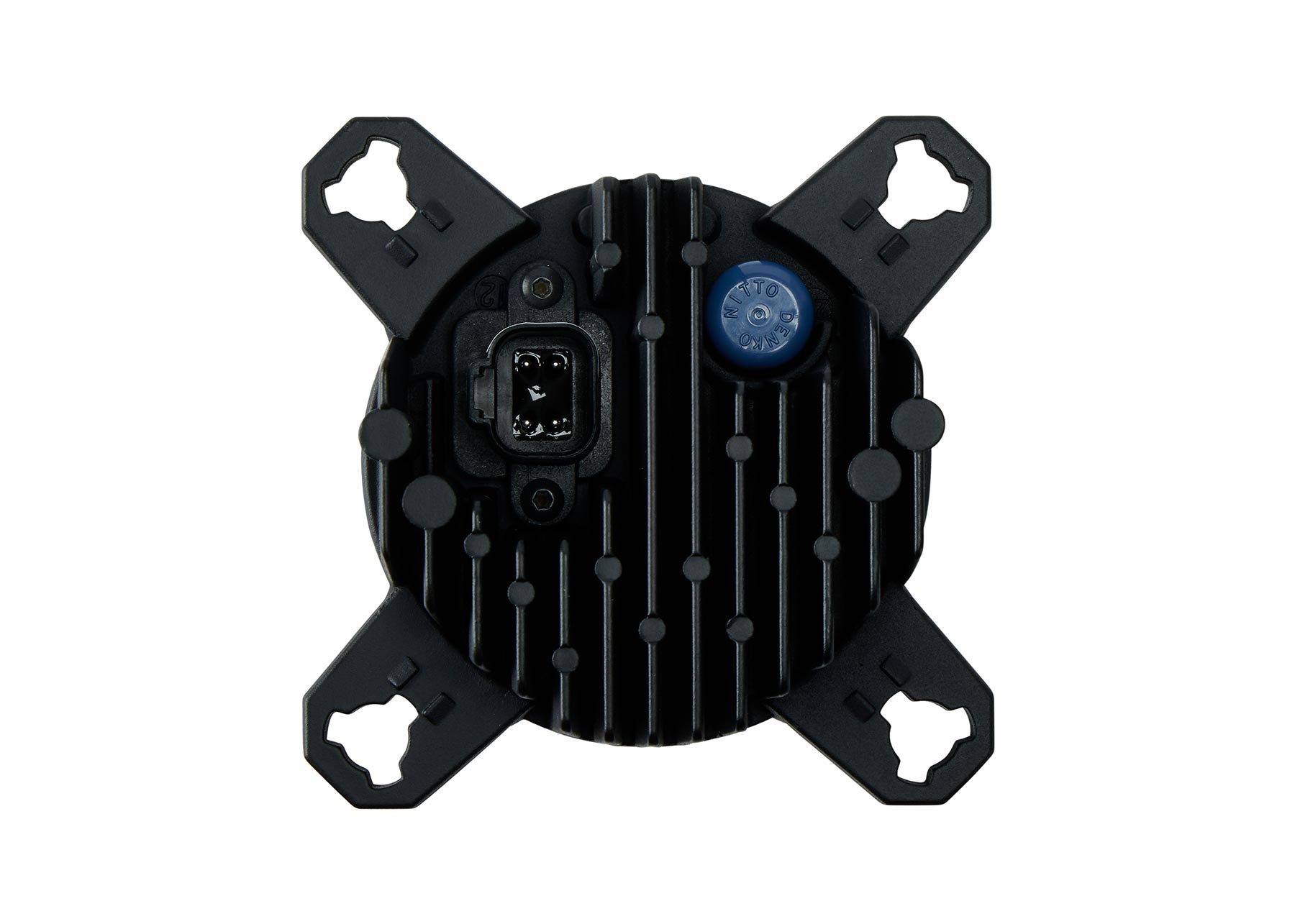

RL.G90.LWT.M Back
RL.G90.LWT.M Back
RL.G90.LWT.M Dipped Beam
RL.G90.LWT.M DRL
RL.G90.LWT.M Position Light
RL.G90.LWT.M Angled
RL.G90.LWT.M Side
RL.G90.LWT.M Back

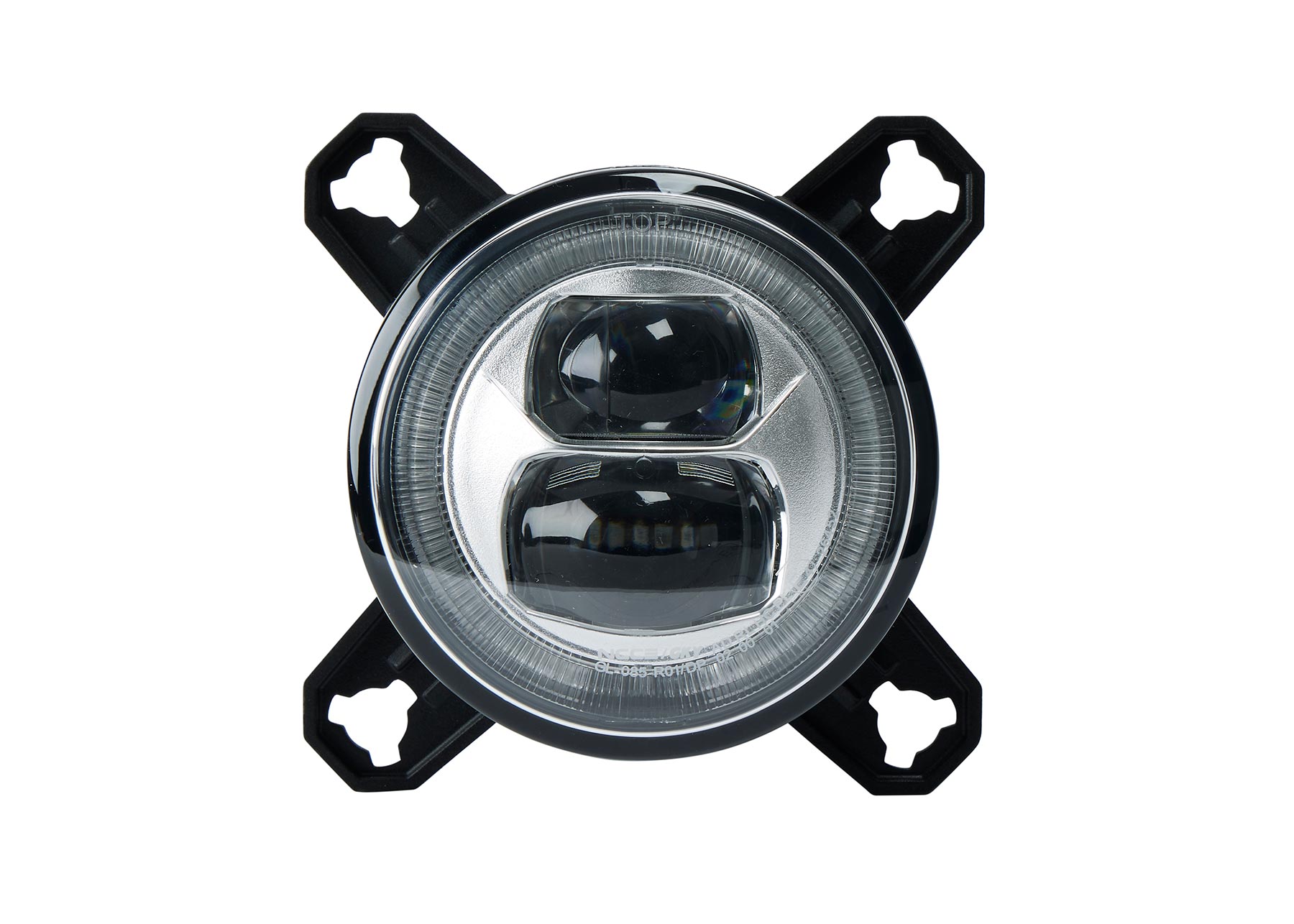

RL.G90 Series 90mm LED Headlight with Dipped Beam / DRL / Position - Right Hand Drive

PART NO: RL.G90.LWT.M

Features

  • 90mm diameter.
  • Dipped beam, daytime running light and position functions.
  • Robust polycarbonate lens.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10, R87, R112, SAE.

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

Part Number Product Name IP RATING VOLTAGE (V) DC CURRENT DRAW (AMPS) CABLE LENGTH (MM) CONNECTORS LIGHT COLOUR LENS COLOUR DIAMETER (MM) WEIGHT (KG) Dimensions (MM)
RL.G90.LWT.M 90mm LED Headlight with Dipped Beam / DRL / Position - Right Hand Drive IP69K 8-33 Dipped Beam: 1.55A @ 13.5V, 0.77A @ 28V, DRL: 0.7A @ 13.5V, 0.35A @ 28V, Position: 0.03A @ 13.5V, 0.028A @ 28V N/A Deutsch White Clear 90 0.538 92(D)

Download Product Information

  • RL.G90.LWT.M Product Spec Sheet Download
  • RL.G90.LWT.M Technical Drawing Download

To download product materials, please login or register for an account.
