- Robust flexible housing.
- Dual polarity for foolproof installation.
- Available with Superseal connectors.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

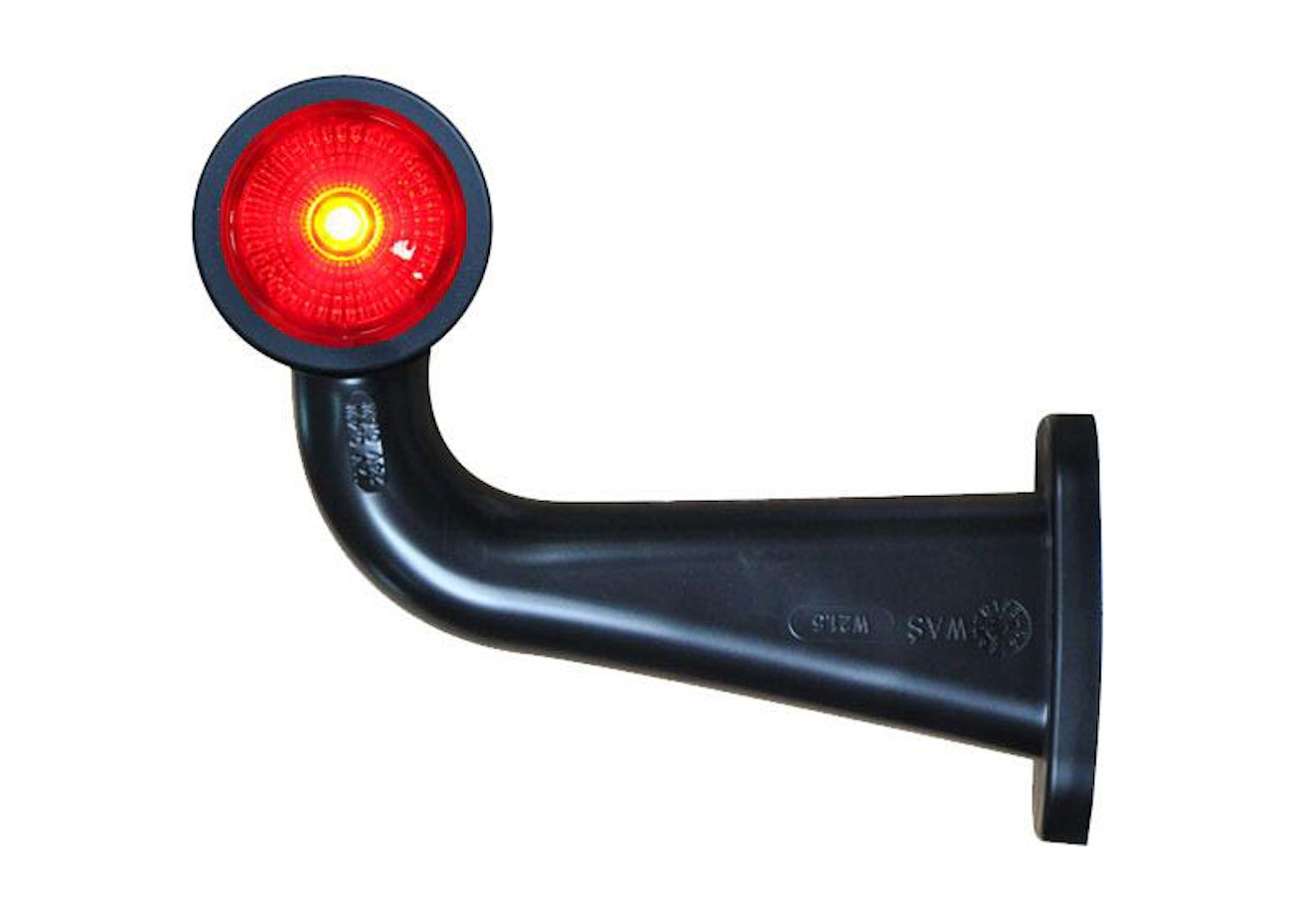

| SLM297L | 90° LED Outline Marker Light - Front / Rear - Left Side | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 220 | None | Red/White | Red/Clear | N/A | 0.246 | 158(H) X 182(L) X 49(D) |
| SLM297L.DC | 90° LED Outline Marker Light - Front / Rear - Left Side with Deutsch Connector | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 265 | Deutsch | Red/White | Red/Clear | N/A | 0.252 | 158(H) X 182(L) X 49(D) |
| SLM297LS/1.2 | 90° LED Outline Marker Light - Front / Rear - Left Side with Superseal Connector, 1.2m Cable | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 1240 | Superseal | Red/White | Red/Clear | N/A | 0.294 | 158(H) X 182(L) X 49(D) |

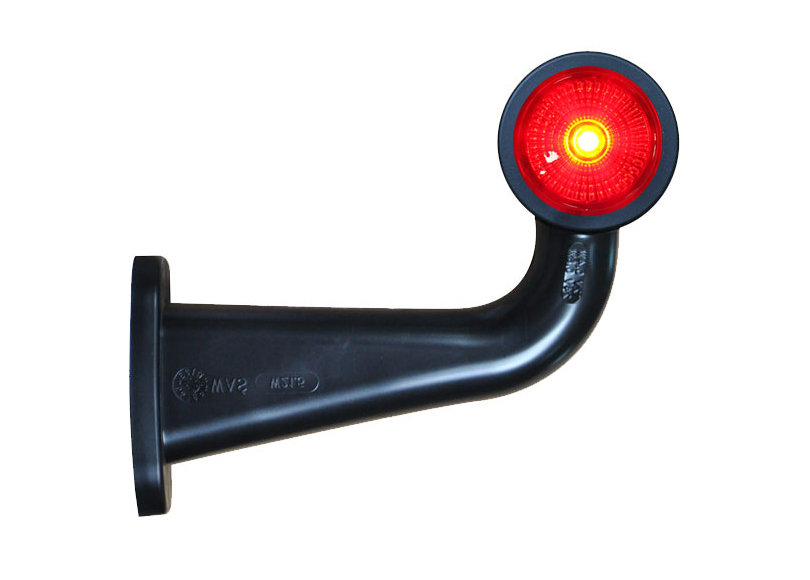

| SLM297R | 90° LED Outline Marker Light - Front / Rear - Right Side | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 220 | None | Red/White | Red/Clear | N/A | 0.246 | 158(H) X 182(L) X 49(D) |
| SLM297R.DC | 90° LED Outline Marker Light - Front / Rear - Right Side with Deutsch Connector | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 265 | Deutsch | Red/White | Red/Clear | N/A | 0.252 | 158(H) X 182(L) X 49(D) |
| SLM297RS/1.4 | 90° LED Outline Marker Light - Front / Rear - Right Side with Superseal Connector, 1.4m Cable | IP68 | 12/24 | 0.120A @ 12V, 0.120A @ 24V | 1440 | Superseal | Red/White | Red/Clear | N/A | 0.319 | 158(H) X 182(L) X 49(D) |
Download Product Information
- SLM297L Product Spec Sheet Download
- SLM297L.DC Product Spec Sheet Download
- SLM297LS/1.2 Product Spec Sheet Download
- SLM297R Product Spec Sheet Download
- SLM297R.DC Product Spec Sheet Download
- SLM297RS/1.4 Product Spec Sheet Download
- SLM297L Technical Drawing Download
- SLM297L.DC Technical Drawing Download
- SLM297LS/1.2 Technical Drawing Download
- SLM297R Technical Drawing Download
- SLM297R.DC Technical Drawing Download
- SLM297RS/1.4 Technical Drawing Download
To download product materials, please login or register for an account.
