- Slimline surface mount design.
- Fully homologated for vertical and horizontal mounting.
- Side and front marker light options also available.
- Warranty: 3 Years
- Approvals: ECE R3, R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

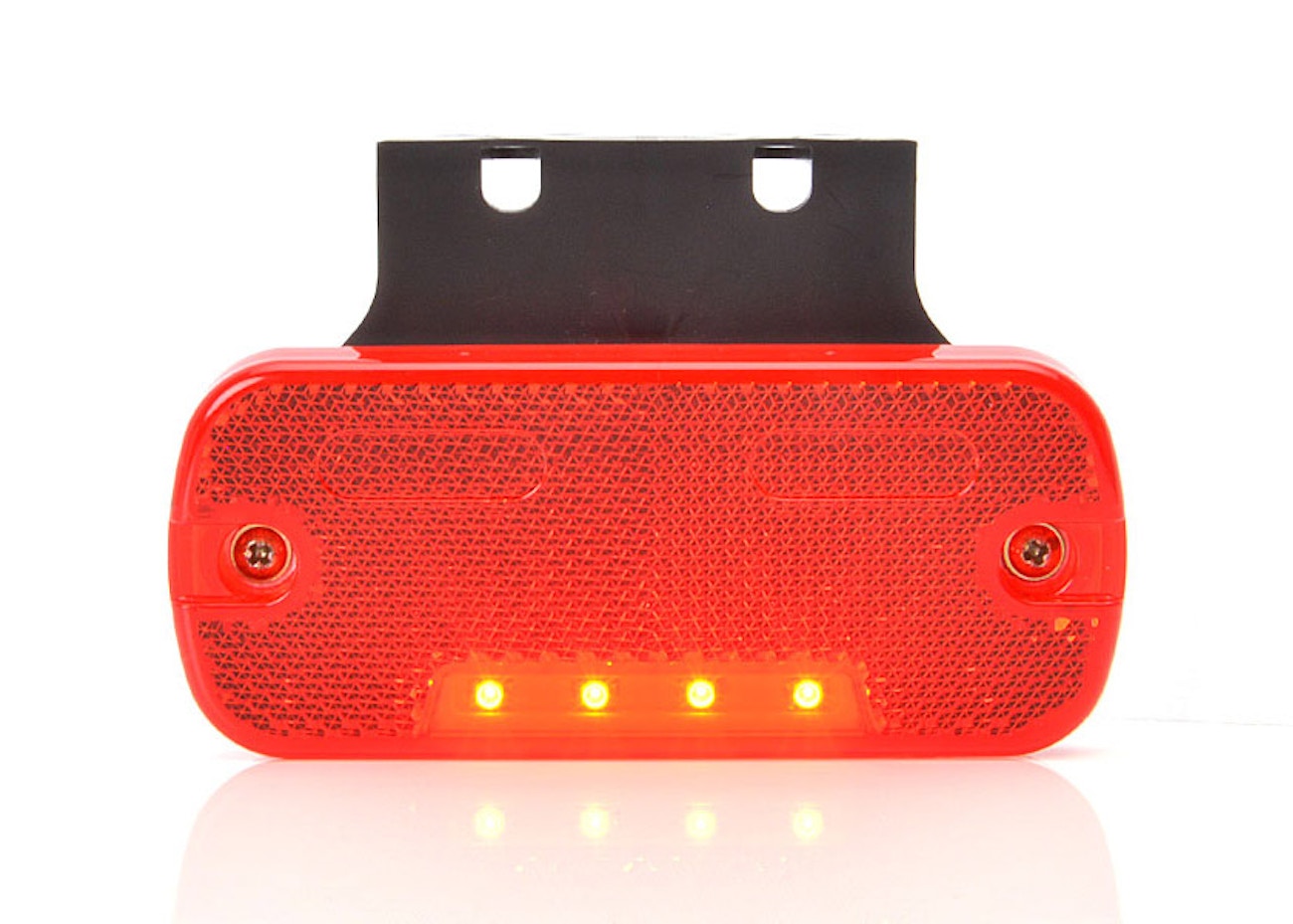

| SM12802 | Slimline, Surface Mount LED Rear Marker Light with Retroreflector | IP68 | 12/24 | 0.033A @ 12V, 0.029A @ 24V | 220 | None | Red | Red | N/A | 0.055 | 45(H) X 105(L) X 12(D) |
| SM12802S | Slimline, Surface Mount LED Rear Marker Light with Retroreflector with Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.029A @ 24V | 250 | Superseal | Red | Red | N/A | 0.064 | 45(H) X 105(L) X 12(D) |
