- Dual polarity for foolproof installation.
- Compact design.
- Approved for mounting both vertically and horizontally.
- Depth of marker light: 25mm. Once mounted, protrudes just 8mm.
- Bracket also available.
- Available with Superseal connectors.
- ADR-approved version available.
- Side and front marker light options also available.
- Warranty: 3 Years
- Approvals: ECE R3, R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

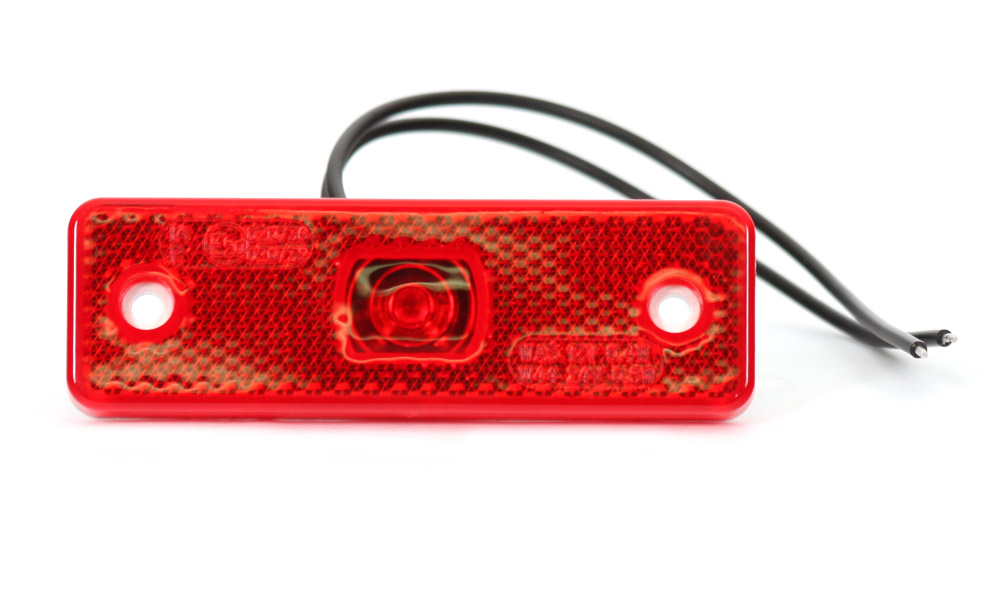

| SM4402 | LED Rear Marker Light | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 220 | None | Red | Red | N/A | 0.029 | 32(H) X 98(L) X 8(D) |

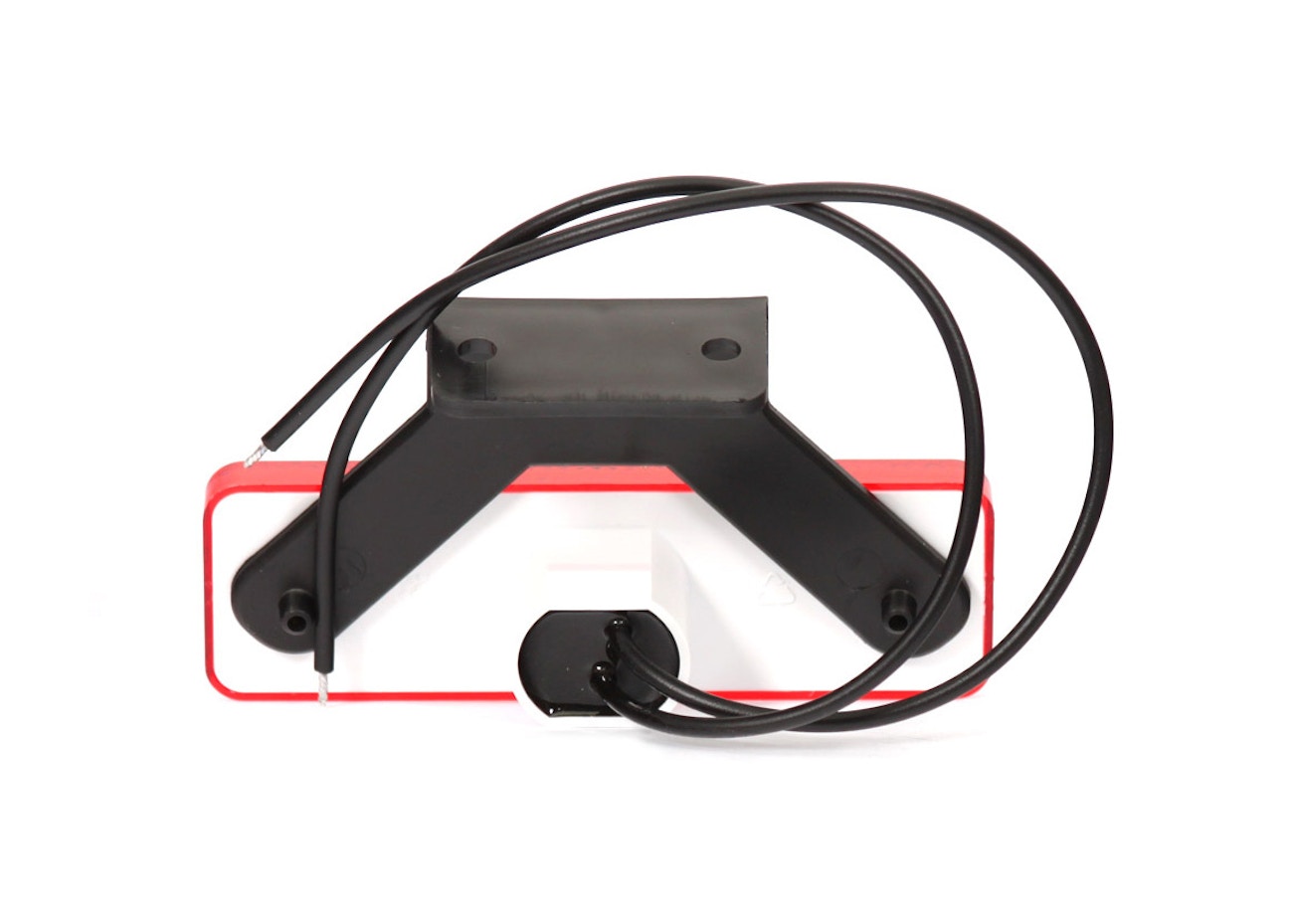

| SM4402H | LED Rear Marker Light with Bracket | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 220 | None | Red | Red | N/A | 0.036 | 65(H) X 98(L) X 8(D) |
| SM4402HS | LED Rear Marker Light with Bracket and Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 290 | Superseal | Red | Red | N/A | 0.046 | 65(H) X 98(L) X 8(D) |
| SM4402S | LED Rear Marker Light with Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 290 | Superseal | Red | Red | N/A | 0.043 | 32(H) X 98(L) X 8(D) |
Download Product Information
- SM4402 Product Spec Sheet Download
- SM4402H Product Spec Sheet Download
- SM4402HS Product Spec Sheet Download
- SM4402S Product Spec Sheet Download
- SM4402 Technical Drawing Download
- SM4402H Technical Drawing Download
- SM4402HS Technical Drawing Download
- SM4402S Technical Drawing Download
To download product materials, please login or register for an account.
