- Dual polarity for foolproof installation.
- Compact design.
- Approved for mounting both vertically and horizontally.
- Depth of marker light: 25mm. Once mounted, protrudes just 8mm.
- Bracket and long bracket options available.
- Available with Superseal connectors.
- ADR-approved version available.
- Front and rear marker light options also available.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R3, R10, R91.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| FastLane | Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM4401 | LED Side Marker Light | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 220 | None | Amber | Amber | N/A | 0.027 | 32(H) X 98(L) X 8(D) | |

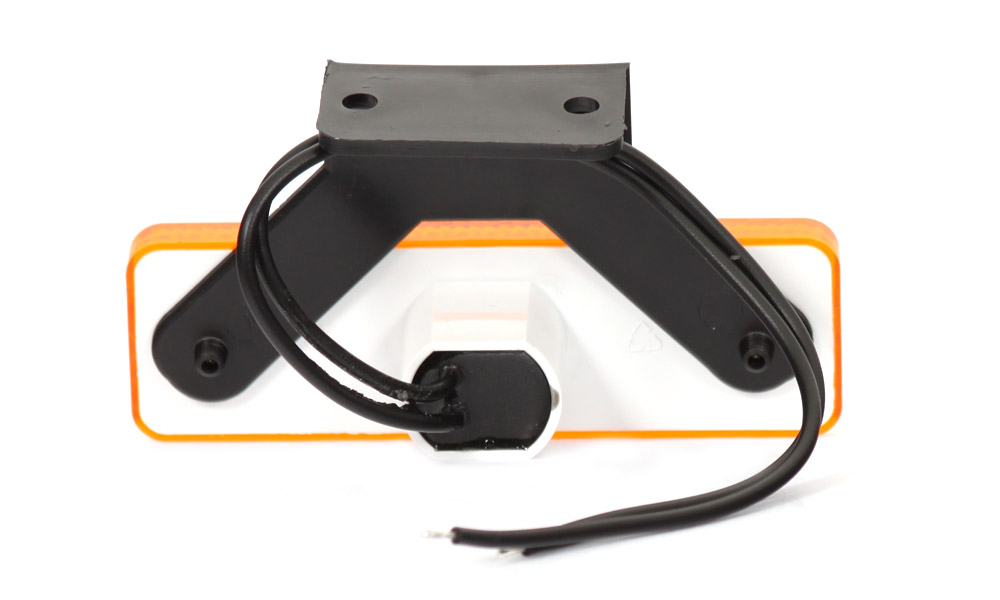

| SM4401H | LED Side Marker Light with Bracket | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 220 | None | Amber | Amber | N/A | 0.036 | 62(H) X 98(L) X 8(D) | |

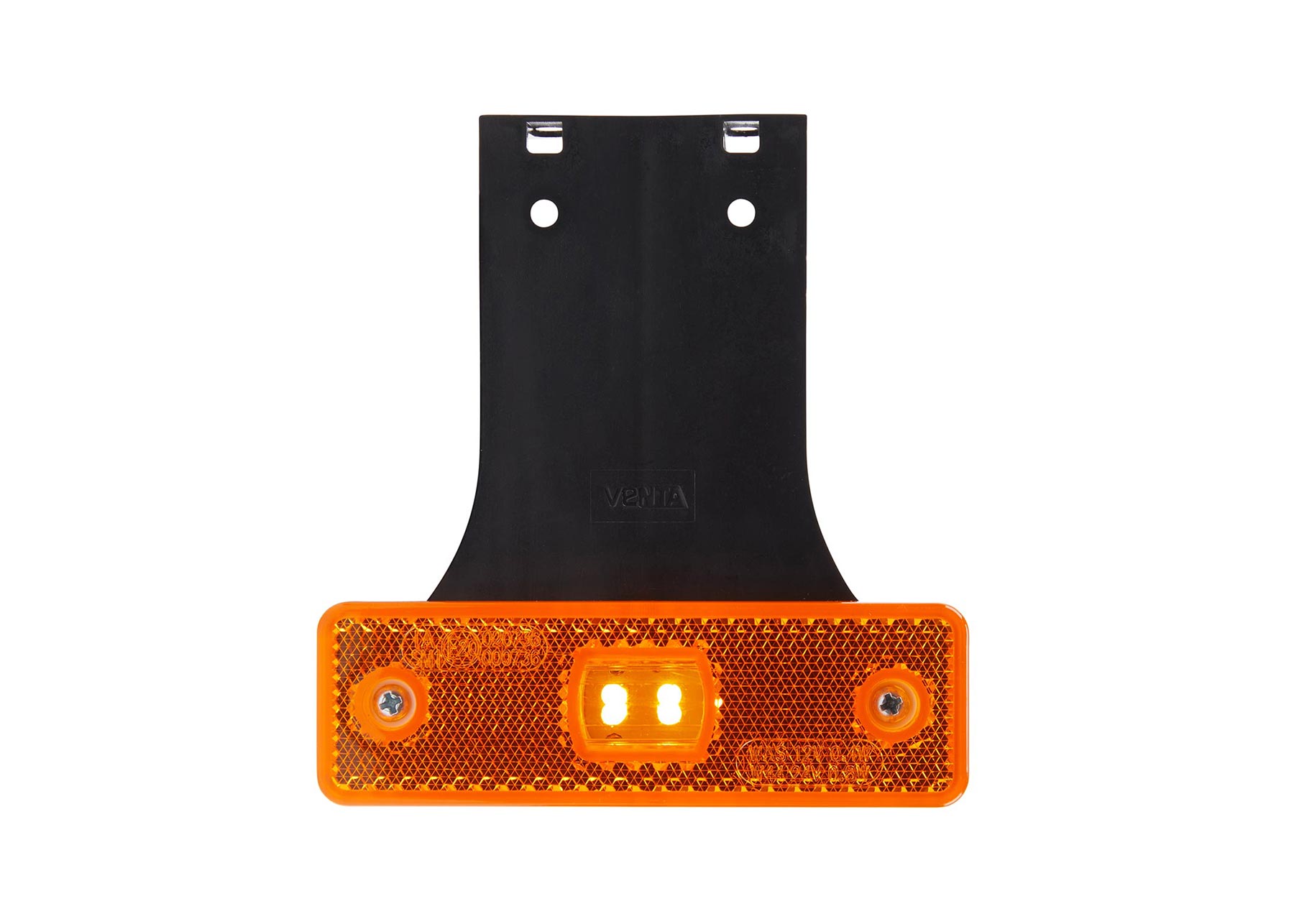

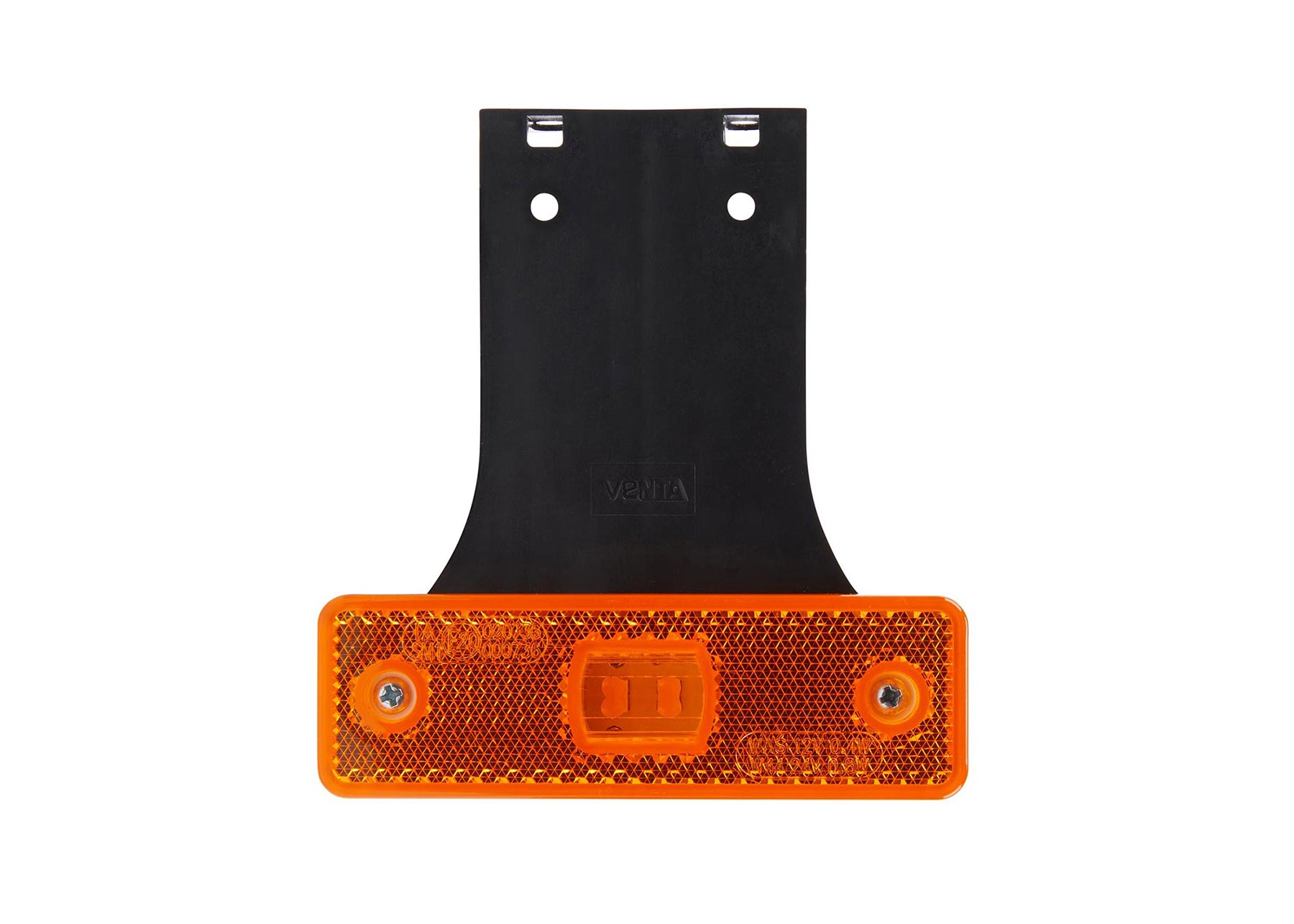

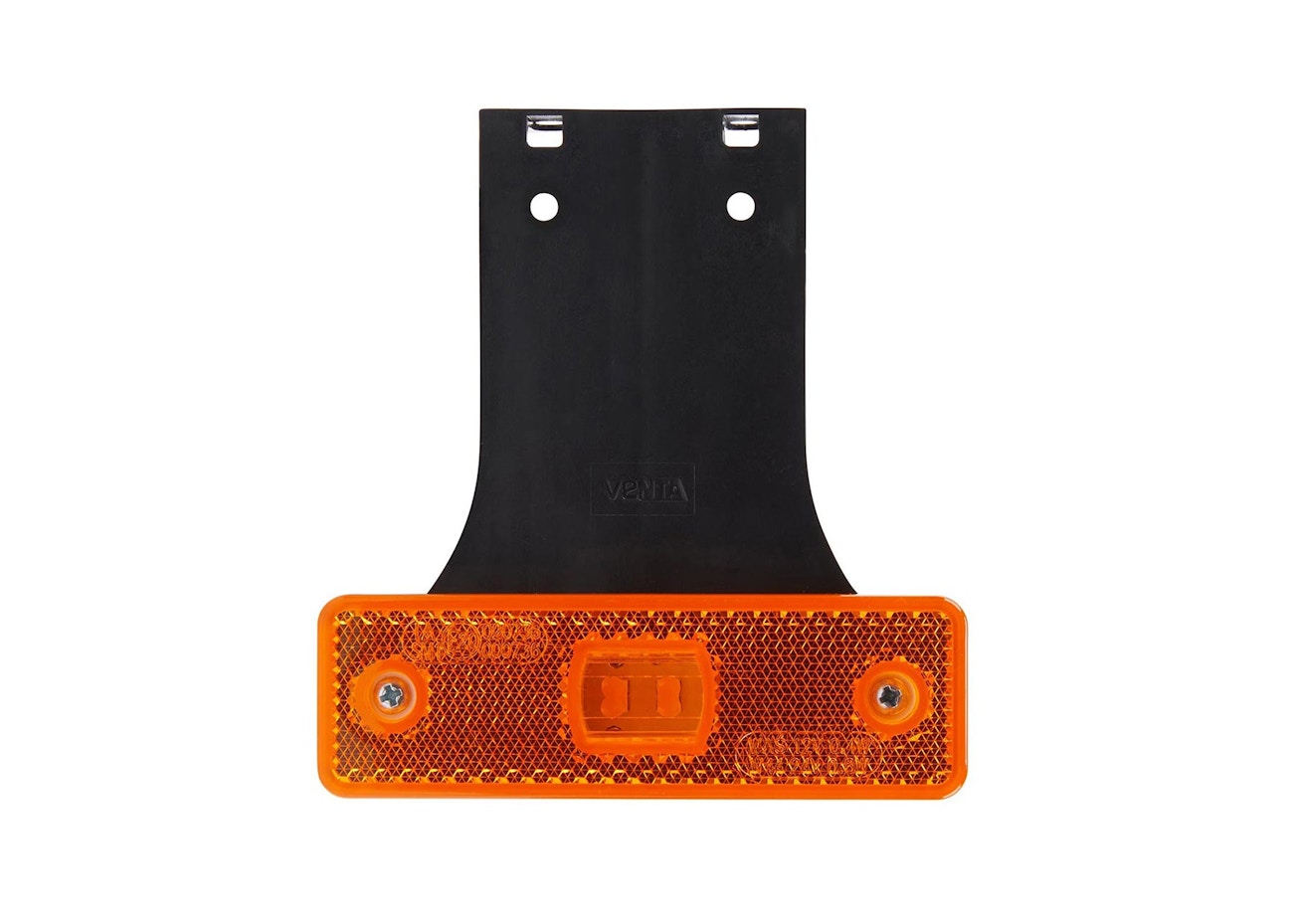

| SM4401HL | LED Side Marker Light with Long Bracket | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 430 | None | Amber | Amber | N/A | 0.053 | 105(H) X 98(L) X 8(D) | |
 | SM4401HLS | LED Side Marker Light with Long Bracket and Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 450 | Superseal | Amber | Amber | N/A | 0.061 | 105(H) X 98(L) X 8(D) |
| SM4401HLS-620 | LED Side Marker Light with Long Bracket with Holes and Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 655 | Superseal | Amber | Amber | N/A | 0.07 | 105(H) X 98(L) X 8(D) | |
| SM4401HS | LED Side Marker Light with Bracket and Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 250 | Superseal | Amber | Amber | N/A | 0.043 | 62(H) X 98(L) X 8(D) | |
| SM4401HSF | LED Side Marker Light with Bracket and Female Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 240 | Superseal | Amber | Amber | N/A | 0.041 | 32(H) X 98(L) X 8(D) | |
| SM4401S | LED Side Marker Light with Superseal Connector | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 500 | Superseal | Amber | Amber | N/A | 0.042 | 32(H) X 98(L) X 8(D) | |
| SM4401S-240 | LED Side Marker Light with Superseal Connector, 240mm Cable | IP68 | 12/24 | 0.033A @ 12V, 0.033A @ 24V | 240 | Superseal | Amber | Amber | N/A | 0.037 | 32(H) X 98(L) X 8(D) |
