- Aesthetic design.
- Surface mount - no cutout required.
- Dual polarity for foolproof installation.
- Available with horizontal mounting bracket.
- Depth of marker light: 12mm. Depth including bracket: 34mm.
- Available with Superseal connectors.
- Side and front marker light options also available.
- Warranty: 3 Years
- Approvals: ECE R3, R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

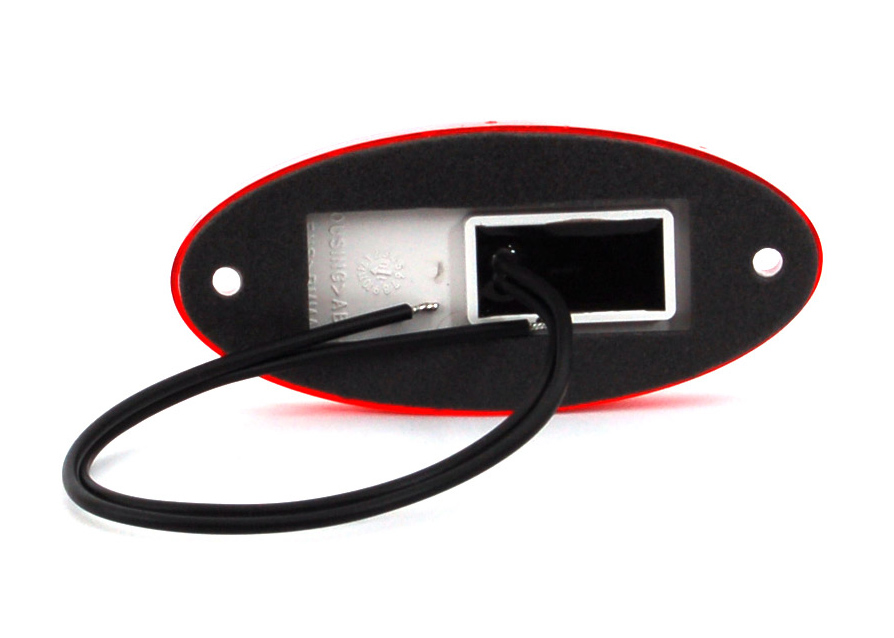

| SM6502 | Oval LED Rear Marker Light | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 220 | None | Red | Red | N/A | 0.033 | 46(H) X 102(L) X 12(D) |

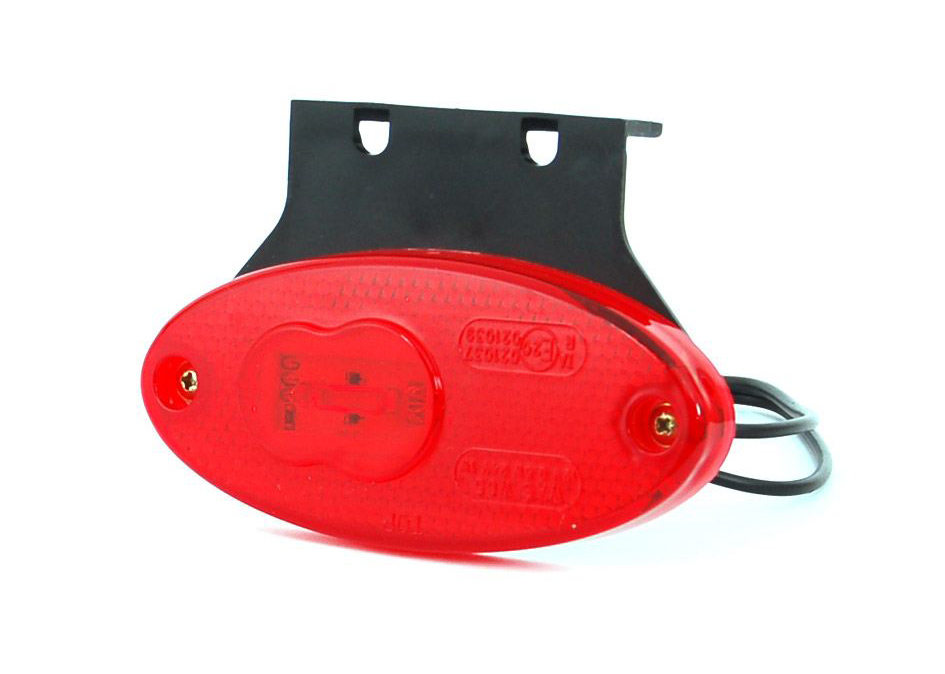

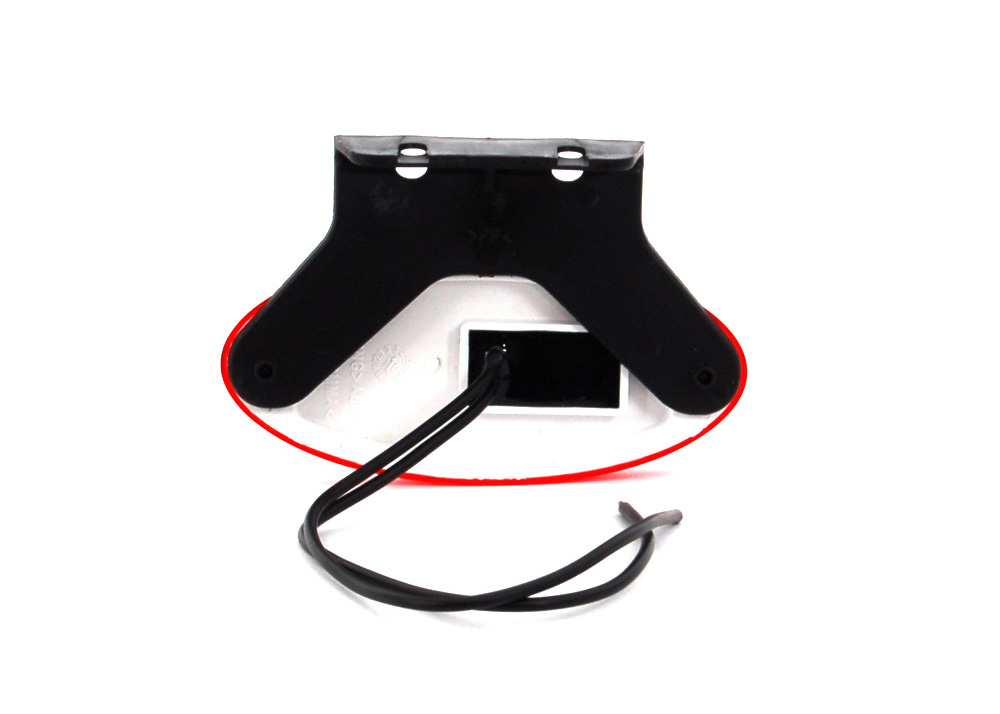

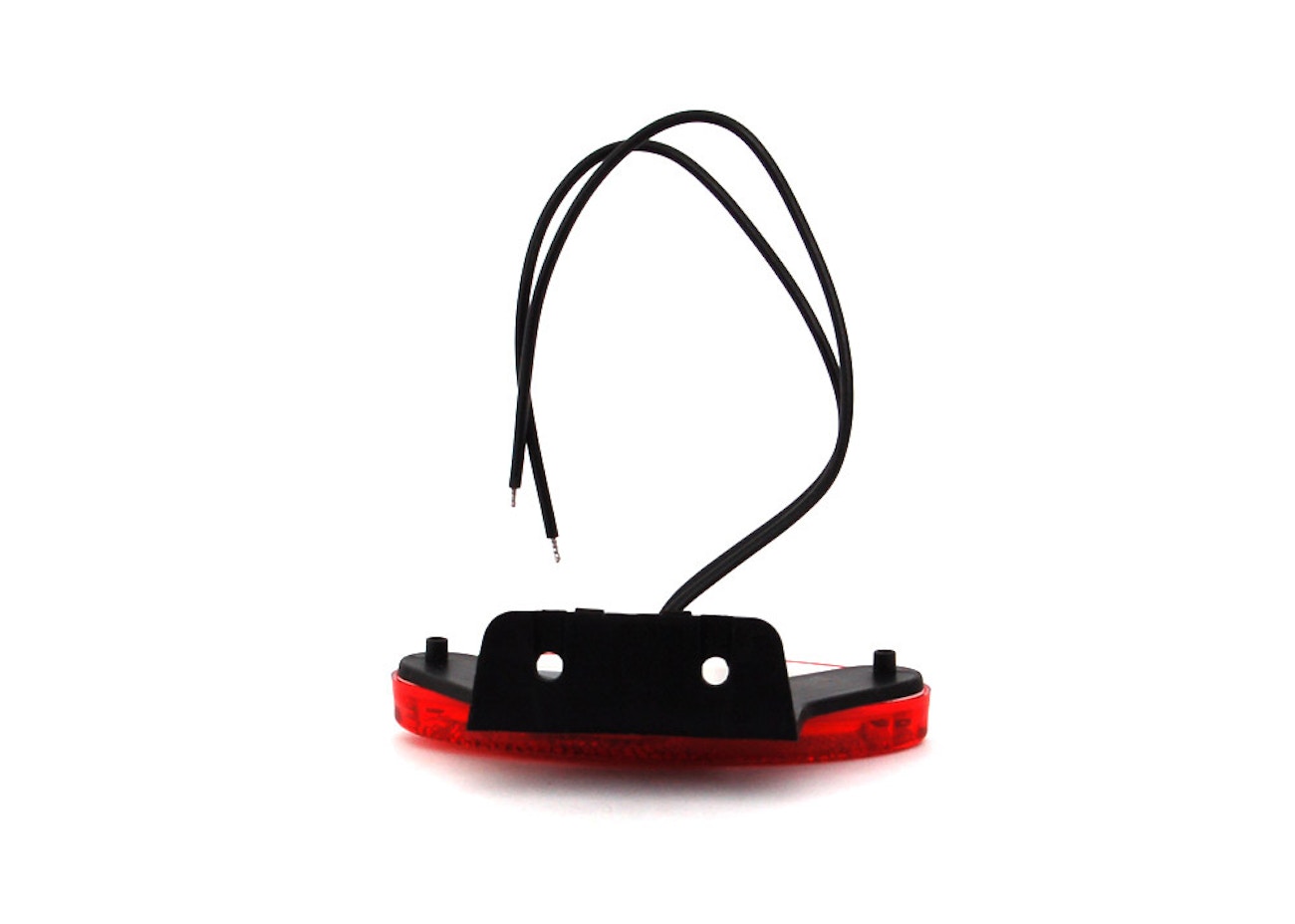

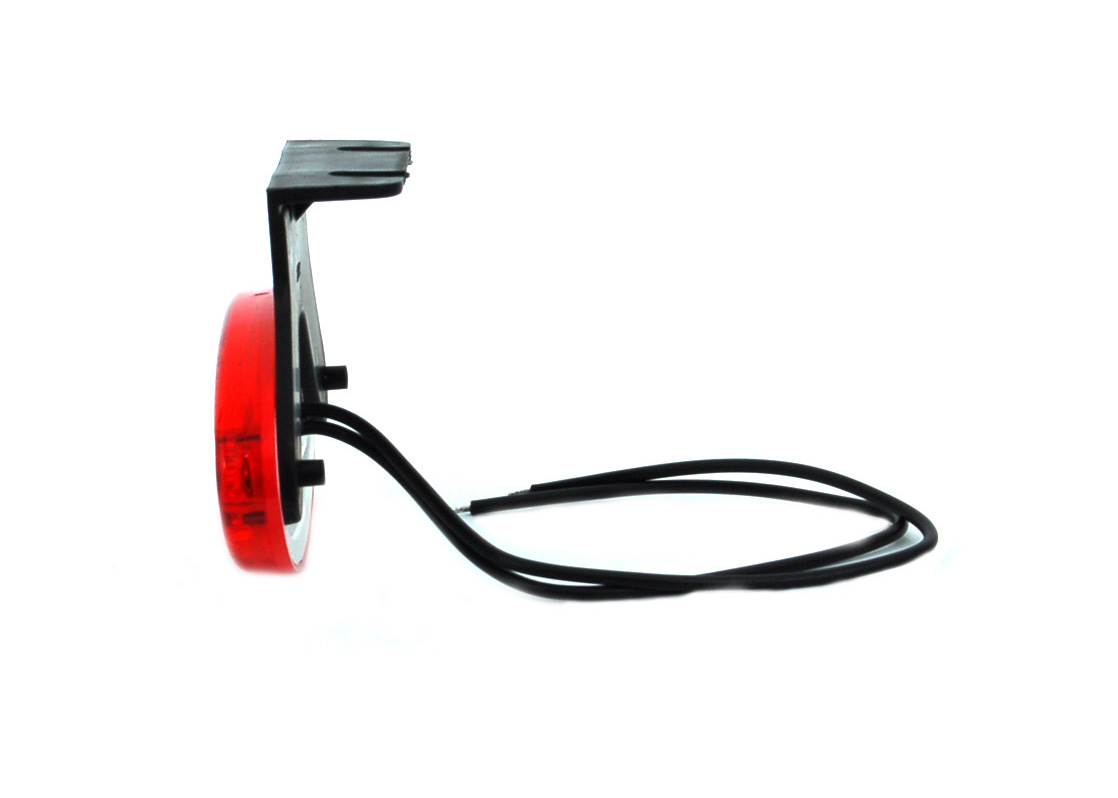

| SM6502H | Oval LED Rear Marker Light with Bracket | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 220 | None | Red | Red | N/A | 0.045 | 68(H) X 102(L) X 34(D) |
| SM6502S | Oval LED Rear Marker Light with Superseal Connector | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 250 | Superseal | Red | Red | N/A | 0.042 | 46(H) X 102(L) X 12(D) |
Download Product Information
- SM6502 Product Spec Sheet Download
- SM6502H Product Spec Sheet Download
- SM6502S Product Spec Sheet Download
- SM6502 Technical Drawing Download
- SM6502H Technical Drawing Download
- SM6502S Technical Drawing Download
To download product materials, please login or register for an account.
