- Aesthetic design.
- Surface mount - no cutout required.
- Dual polarity for foolproof installation.

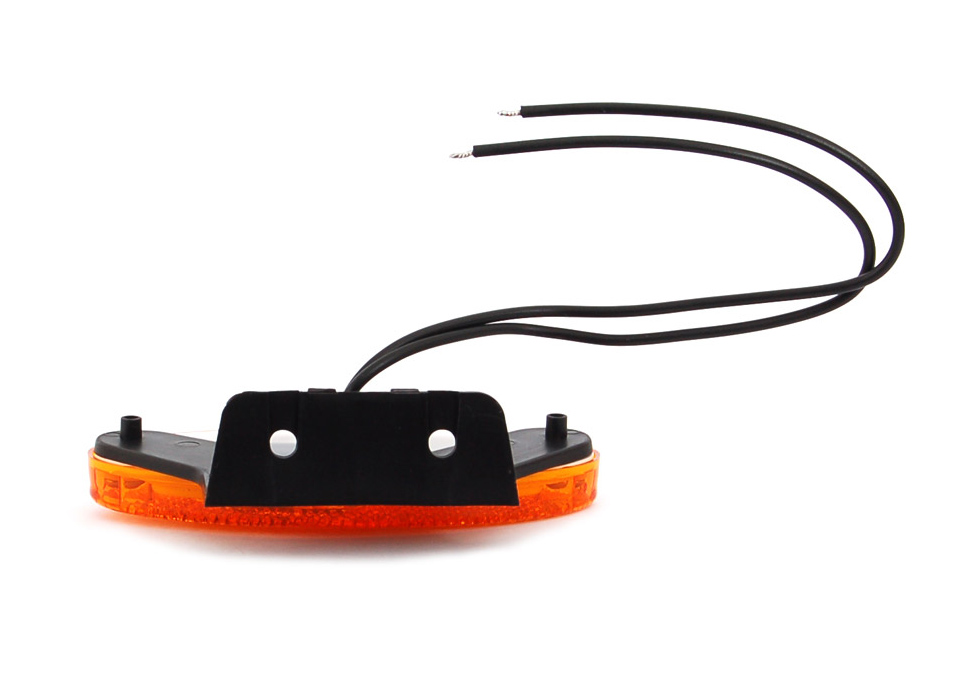

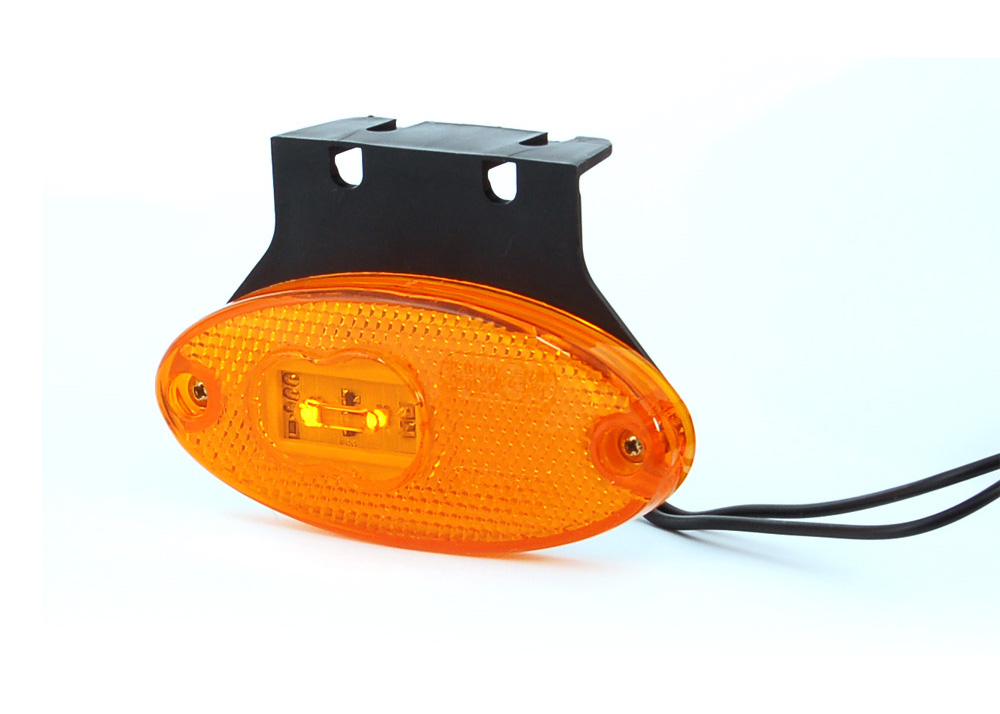

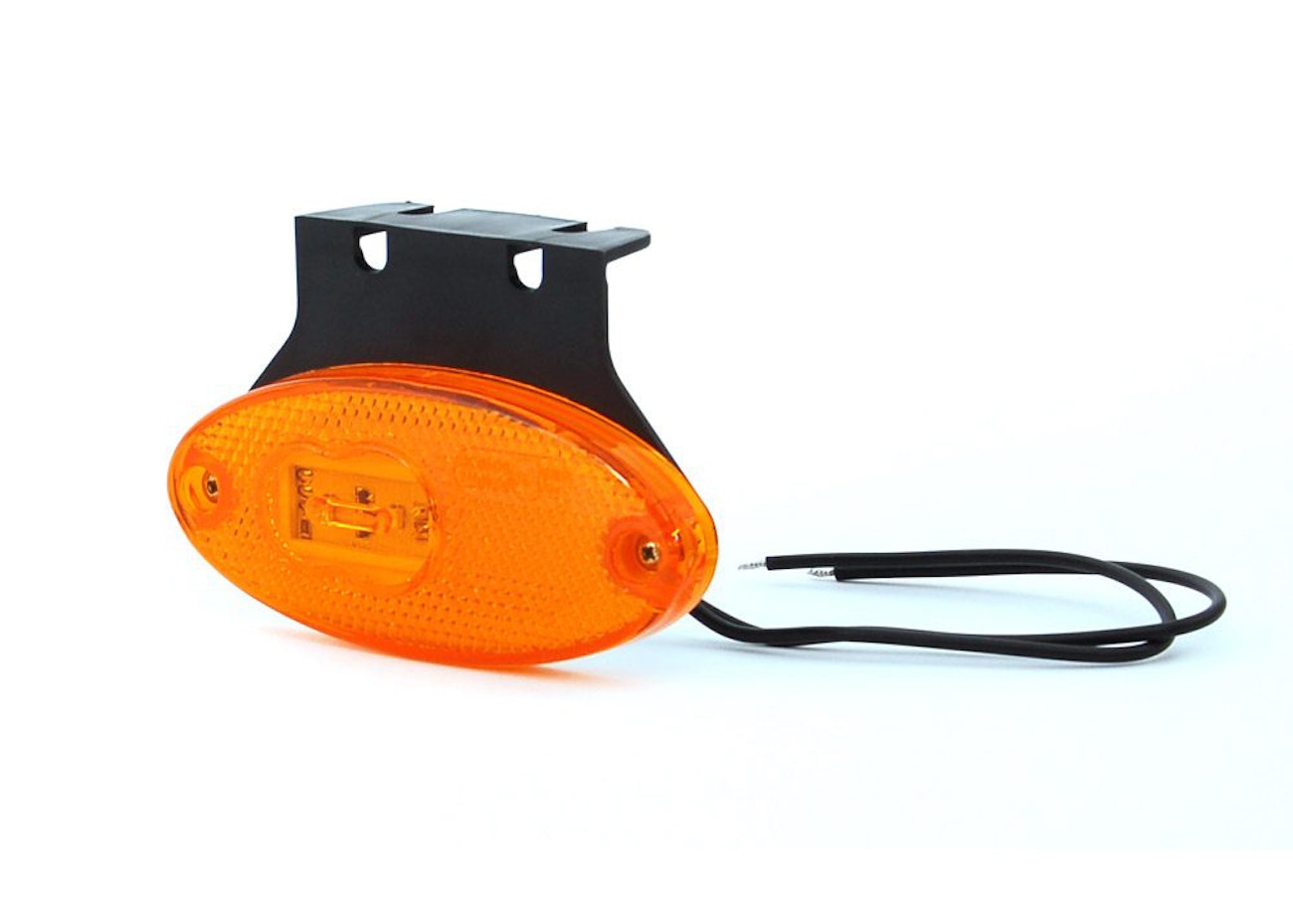

- Comes with horizontal mounting bracket.

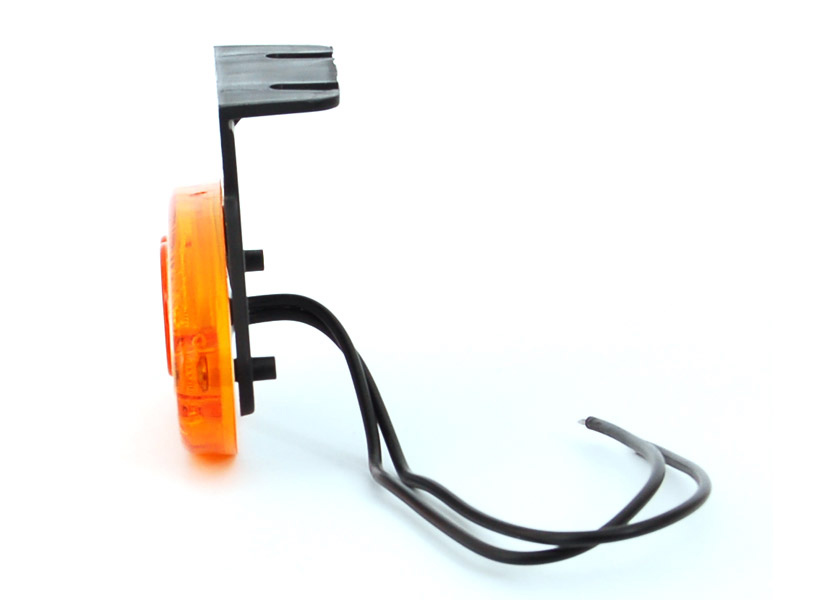

- Depth of marker light: 12mm. Depth including bracket: 34mm.
- Available with Superseal connectors.
- Front and rear marker light options also available.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R3, R10, R91.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SM6501H | Oval LED Side Marker Light with Bracket | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 220 | None | Amber | Amber | N/A | 0.045 | 68(H) X 102(L) X 34(D) |
| SM6501-SMT | Oval LED Side Marker Light | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 220 | None | Amber | Amber | N/A | 0.033 | 46(H) X 102(L) X 12(D) |
| SM6501HS | Oval LED Side Marker Light with Bracket and Superseal Connector | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 250 | Superseal | Amber | Amber | N/A | 0.053 | 68(H) X 102(L) X 34(D) |
| SM6501S | Oval LED Side Marker Light with Superseal Connector | IP68 | 12/24 | 0.04A @ 12V, 0.04A @ 24V | 250 | Superseal | Amber | Amber | N/A | 0.042 | 46(H) X 102(L) X 12(D) |
