- Only 29mm diameter.
- Requires 21mm mounting hole.
- Very quick and easy to install.
- Dual voltage.
- Robust construction.
- Available with Superseal connectors.
- Side, rear and green marker light options also available.
- Warranty: 3 Years
- Approvals: ECE R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| FastLane | Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

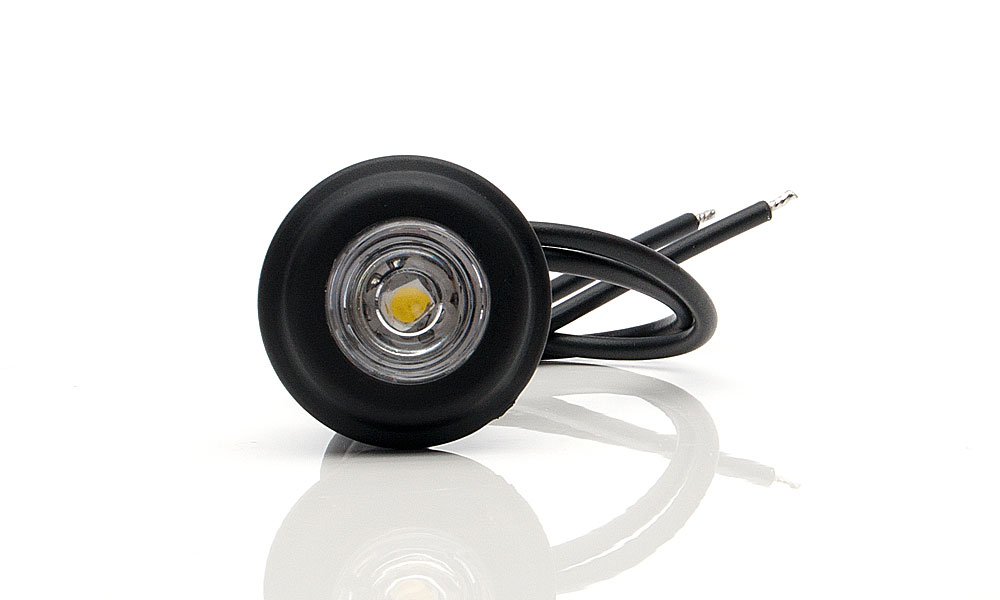

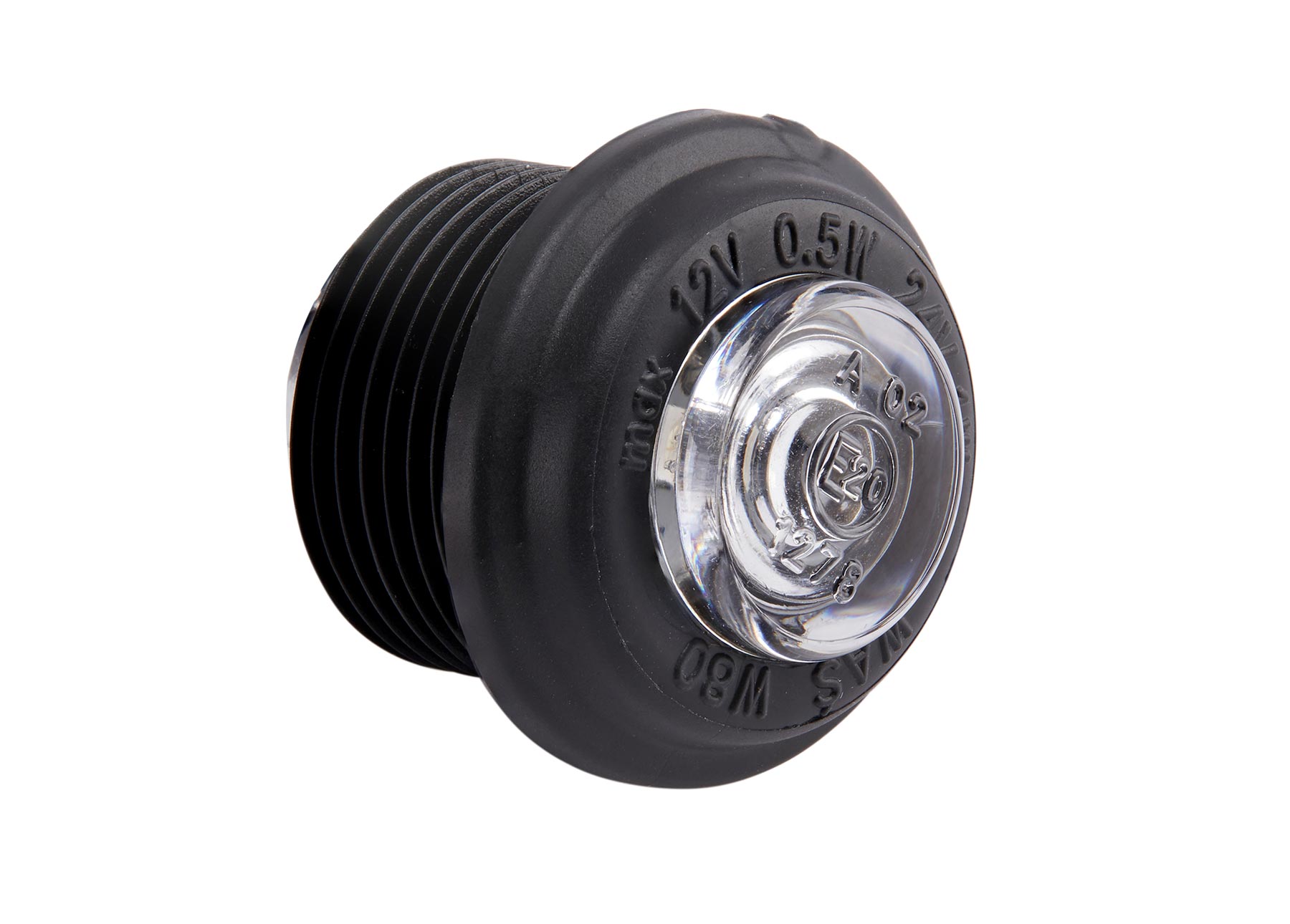

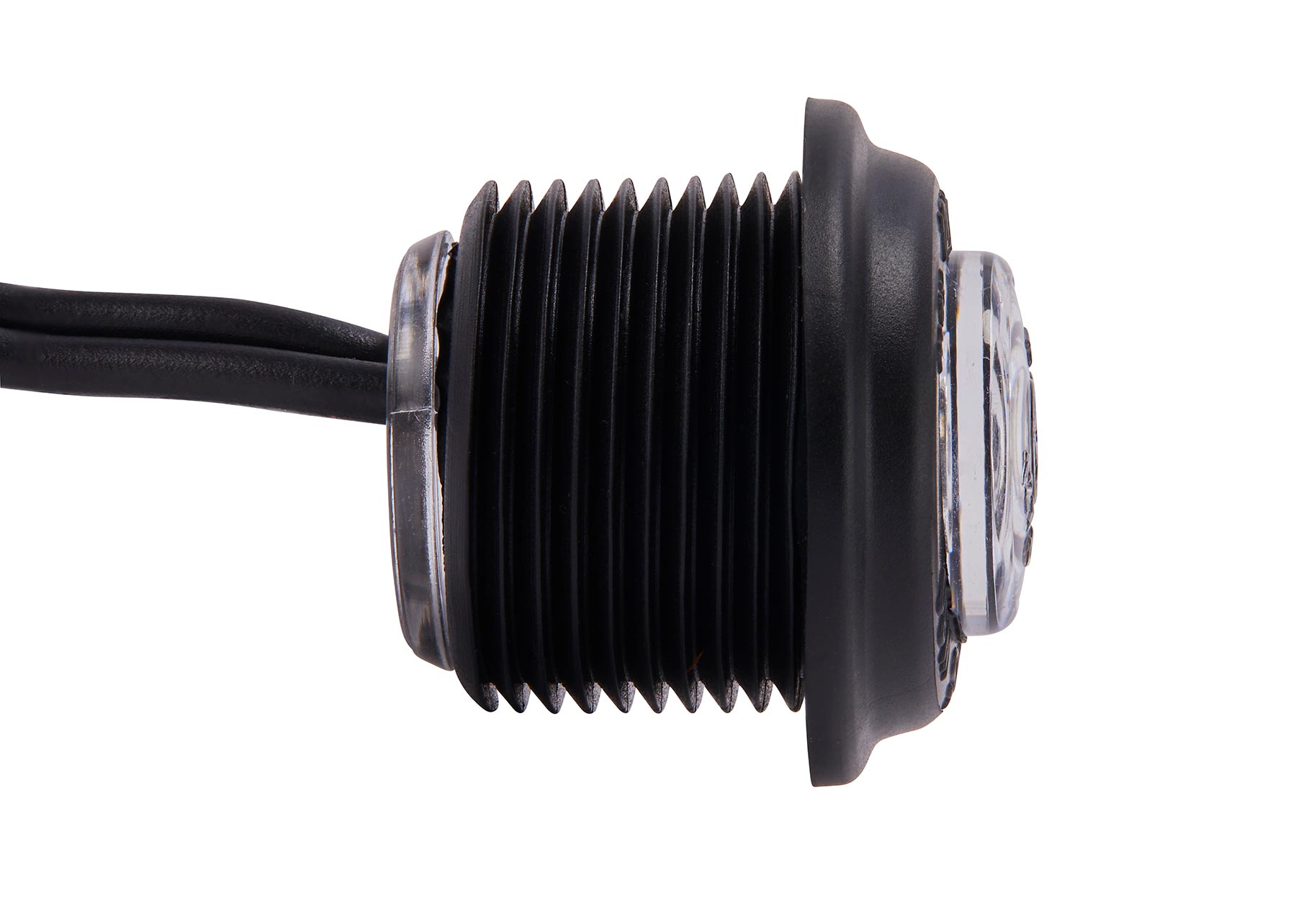

| SM6604 | Push-Fit Recessed LED Front Marker Light | IP68 | 12/24 | 0.02A @ 12V, 0.04A @ 24V | 220 | None | White | Clear | 29 | 0.016 | 27(D) | |
| SM6604/5 | Push-Fit Recessed LED Front Marker Light, 5m Cable | IP68 | 12/24 | 0.02A @ 12V, 0.04A @ 24V | 5000 | None | White | Clear | 29 | 0.224 | 27(D) | |
 | SM6604S | Push-Fit Recessed LED Front Marker Light with Superseal Connector | IP68 | 12/24 | 0.02A @ 12V, 0.04A @ 24V | 250 | Superseal | White | Clear | 29 | 0.027 | 27(D) |
| SM6604S/5 | Push-Fit Recessed LED Front Marker Light with Superseal Connector, 5m Cable | IP68 | 12/24 | 0.02A @ 12V, 0.04A @ 24V | 5040 | Superseal | White | Clear | 29 | 0.228 | 27(D) |
Download Product Information
- SM6604 Product Spec Sheet Download
- SM6604/5 Product Spec Sheet Download
- SM6604S Product Spec Sheet Download
- SM6604S/5 Product Spec Sheet Download
- SM6604 Technical Drawing Download
- SM6604/5 Technical Drawing Download
- SM6604S Technical Drawing Download
- SM6604S/5 Technical Drawing Download
To download product materials, please login or register for an account.
