- Surface mount.
- Approved for vertical and horizontal mounting.
- Available with Superseal connectors.
- Side and front marker light options also available.
- Some variants are made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R7, R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

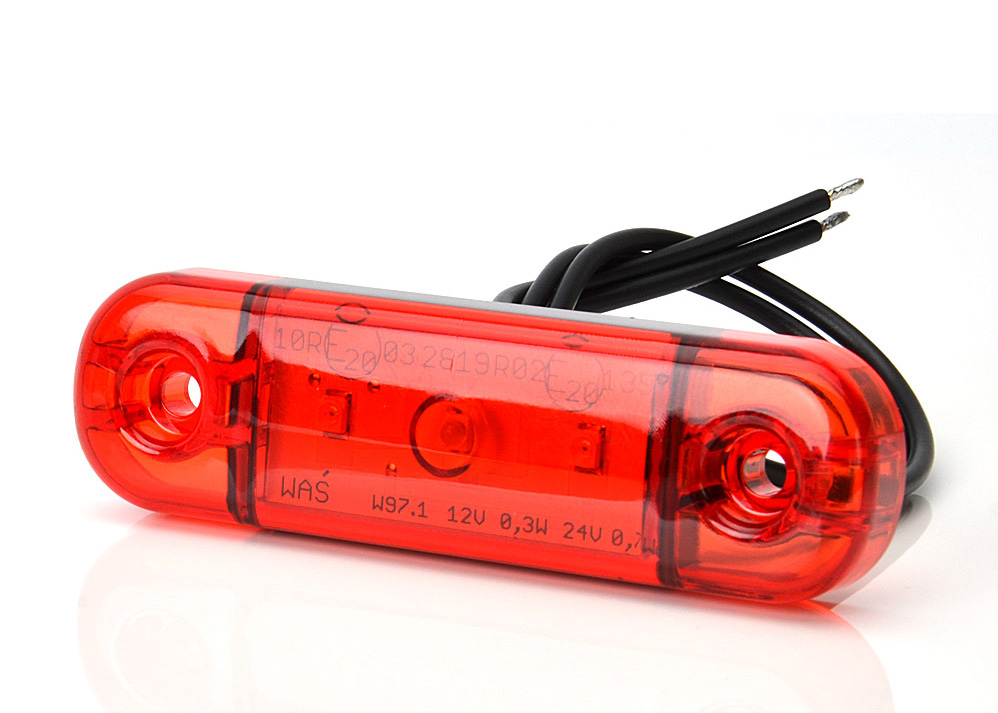

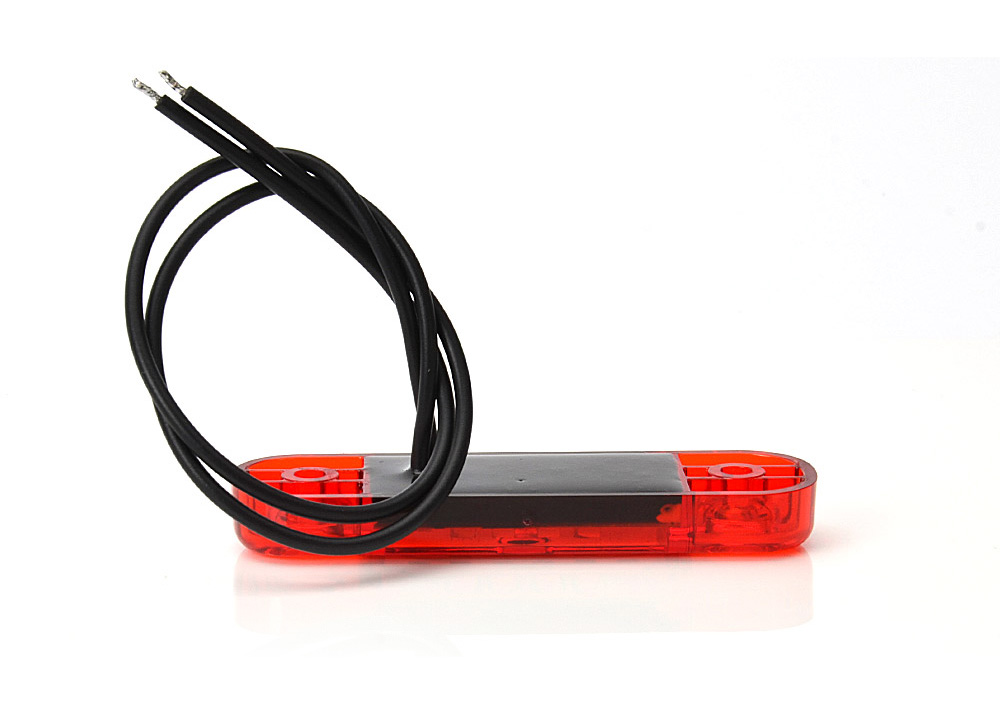

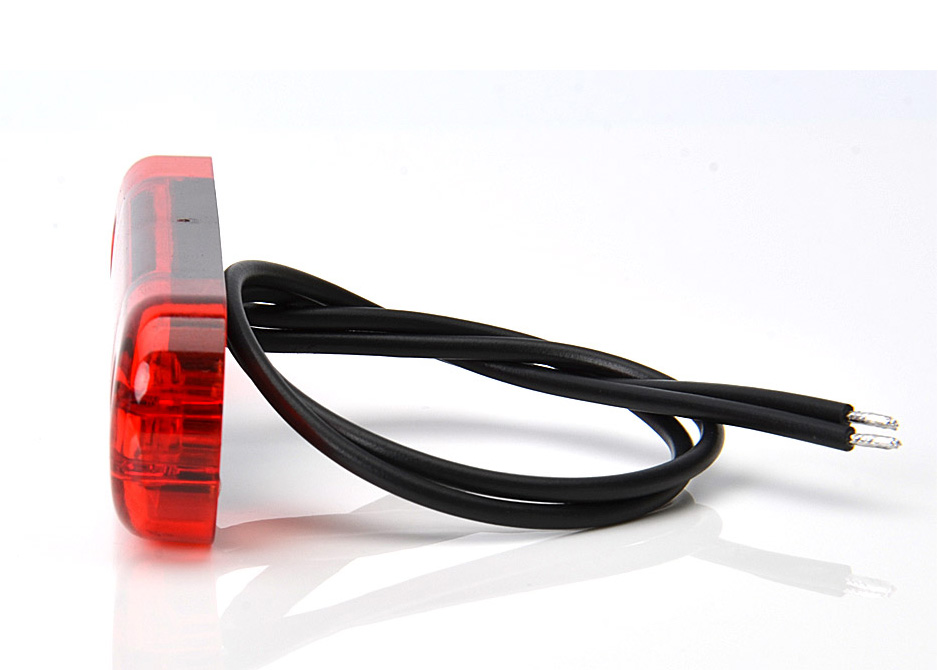

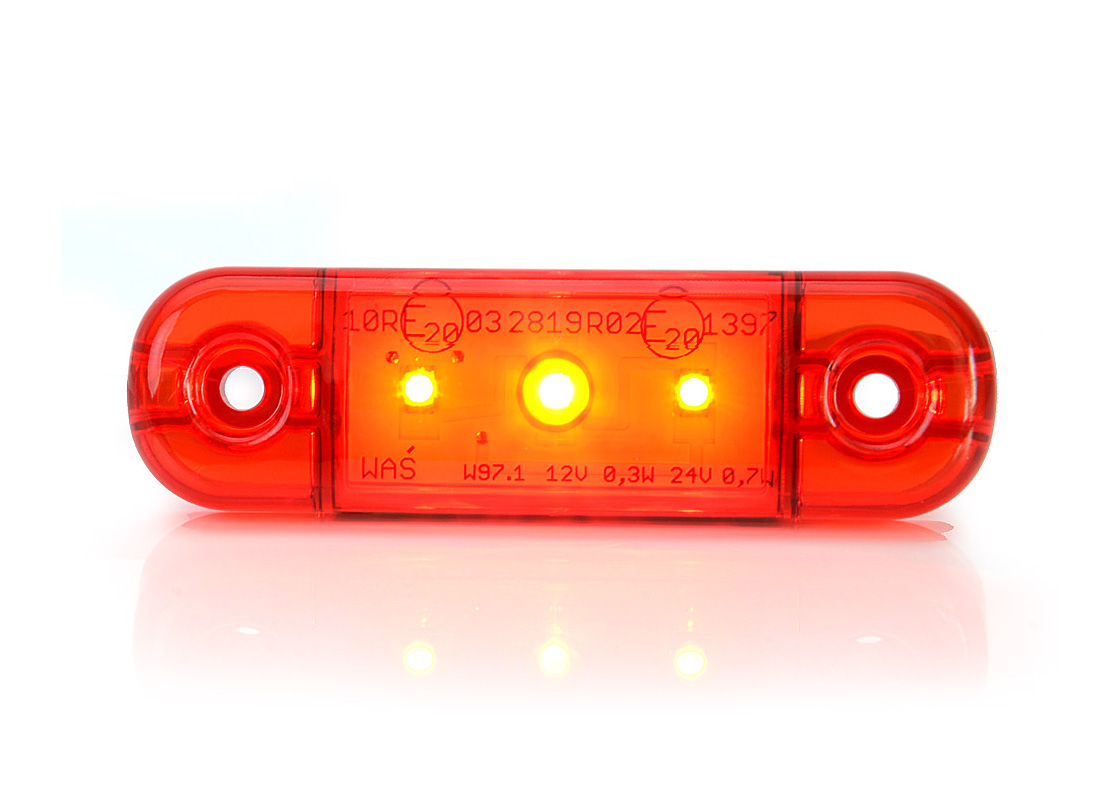

| SM9702 | Compact LED Rear Marker Light | IP68 | 12/24 | 0.025A @ 12V, 0.029A @ 24V | 220 | None | Red | Red | N/A | 0.028 | 24(H) X 84(L) X 10.4(D) |
| SM9702S | Compact LED Rear Marker Light with Superseal Connector | IP68 | 12/24 | 0.025A @ 12V, 0.029A @ 24V | 270 | Superseal | Red | Red | N/A | 0.032 | 24(H) X 84(L) X 10.4(D) |
