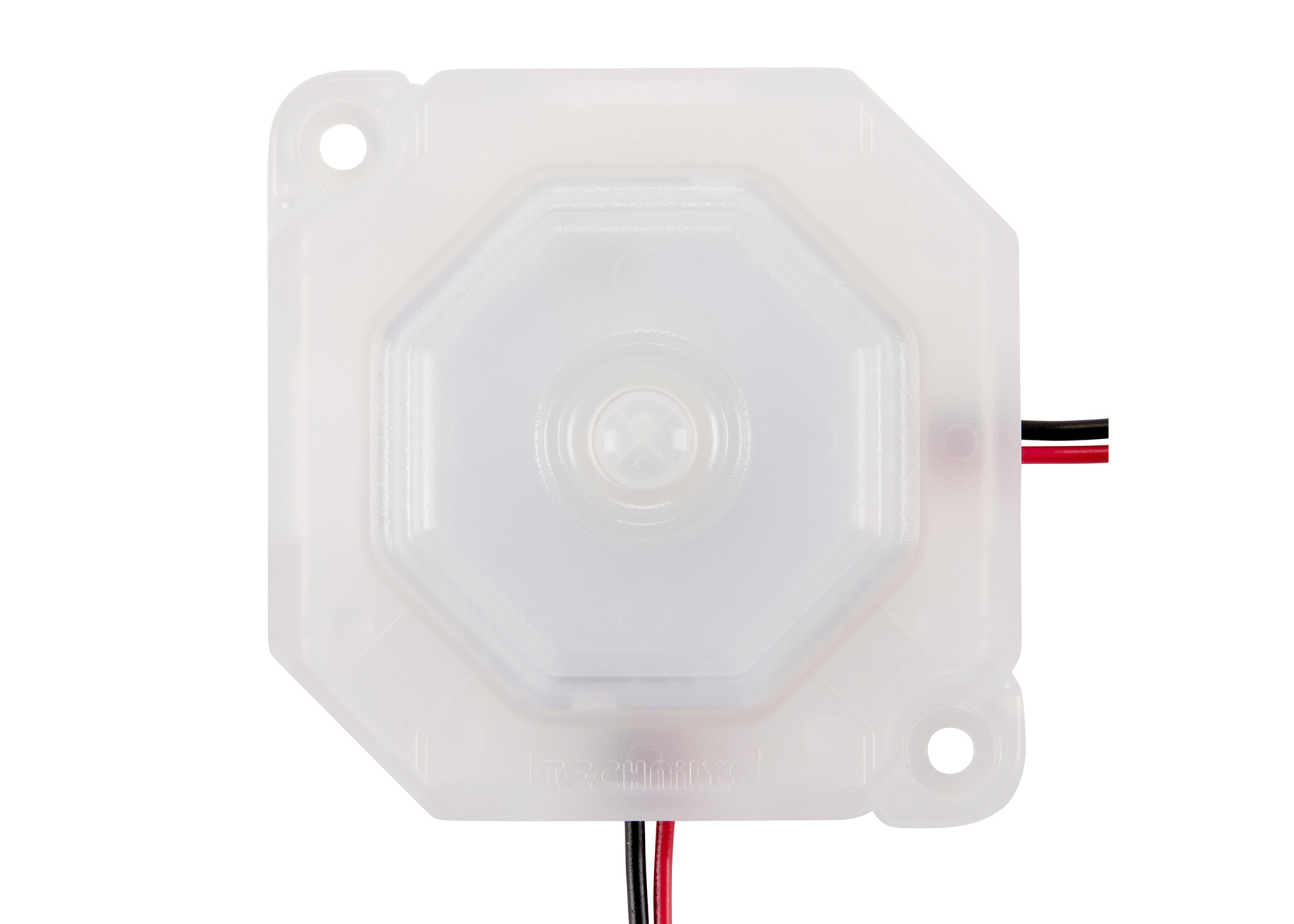

PIRW Front
PIRW Front
PIRW
PIRW

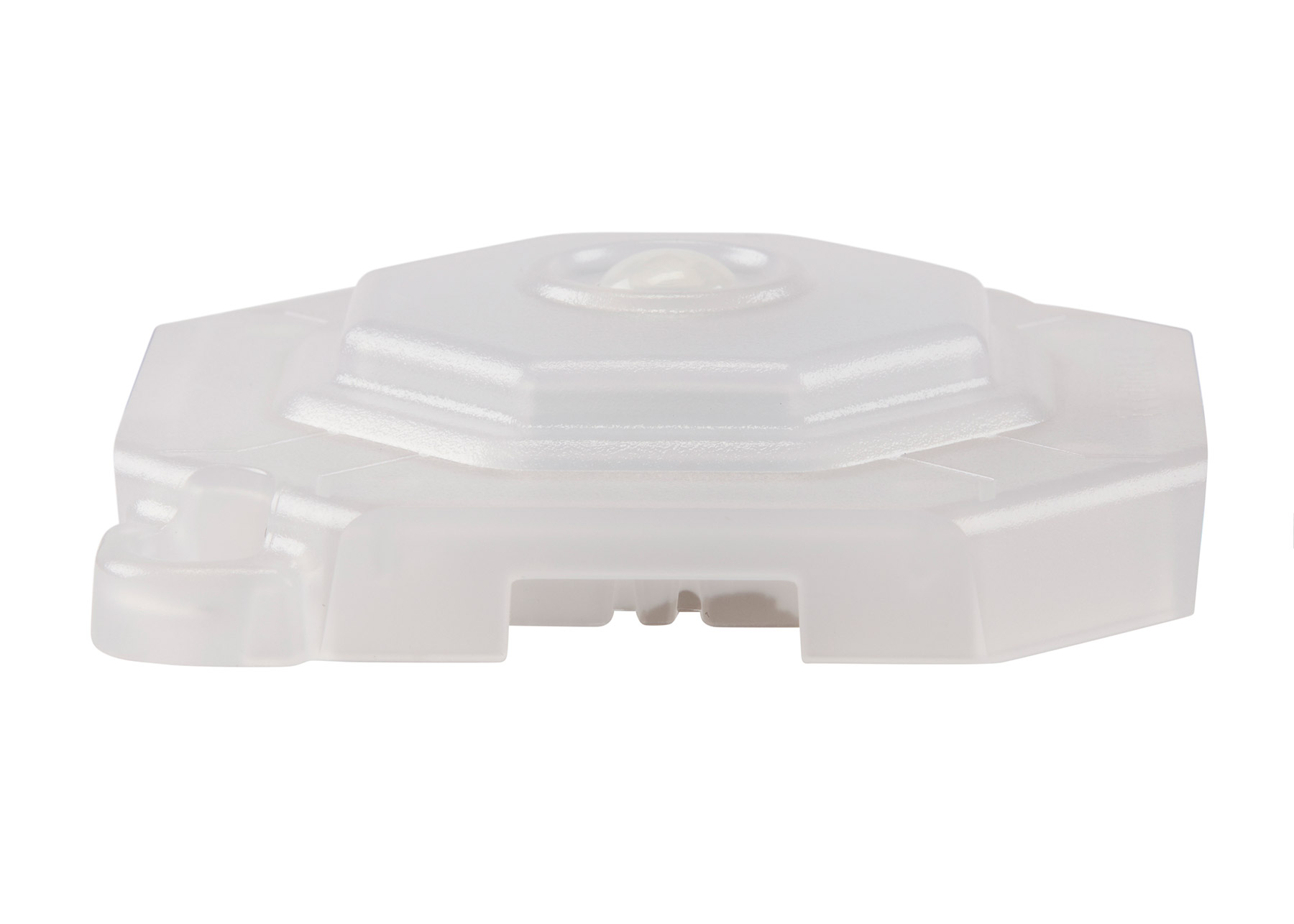

PIRW Side
PIRW Side

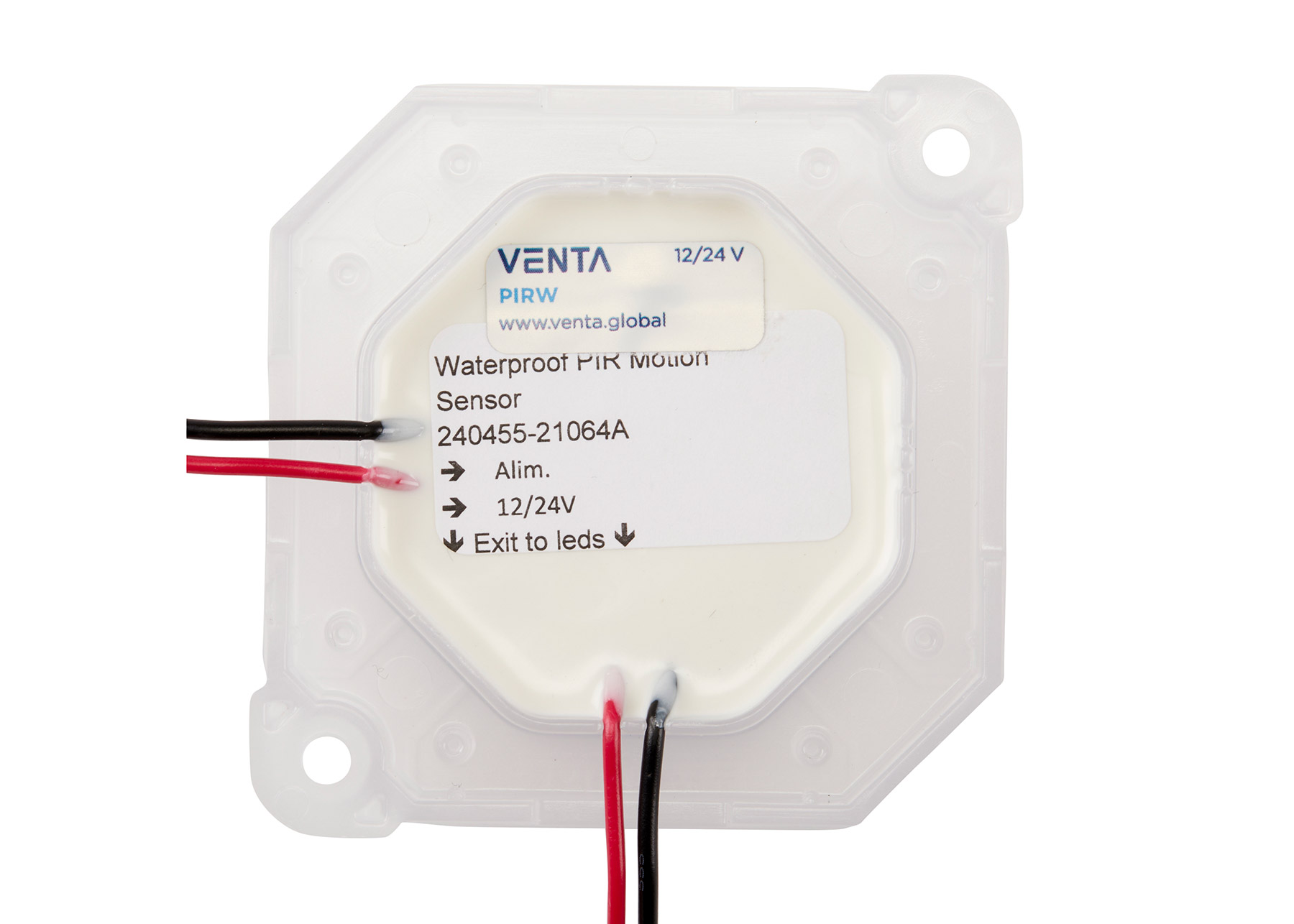

PIRW Back
PIRW Back
PIRW
PIRW Side
PIRW Back

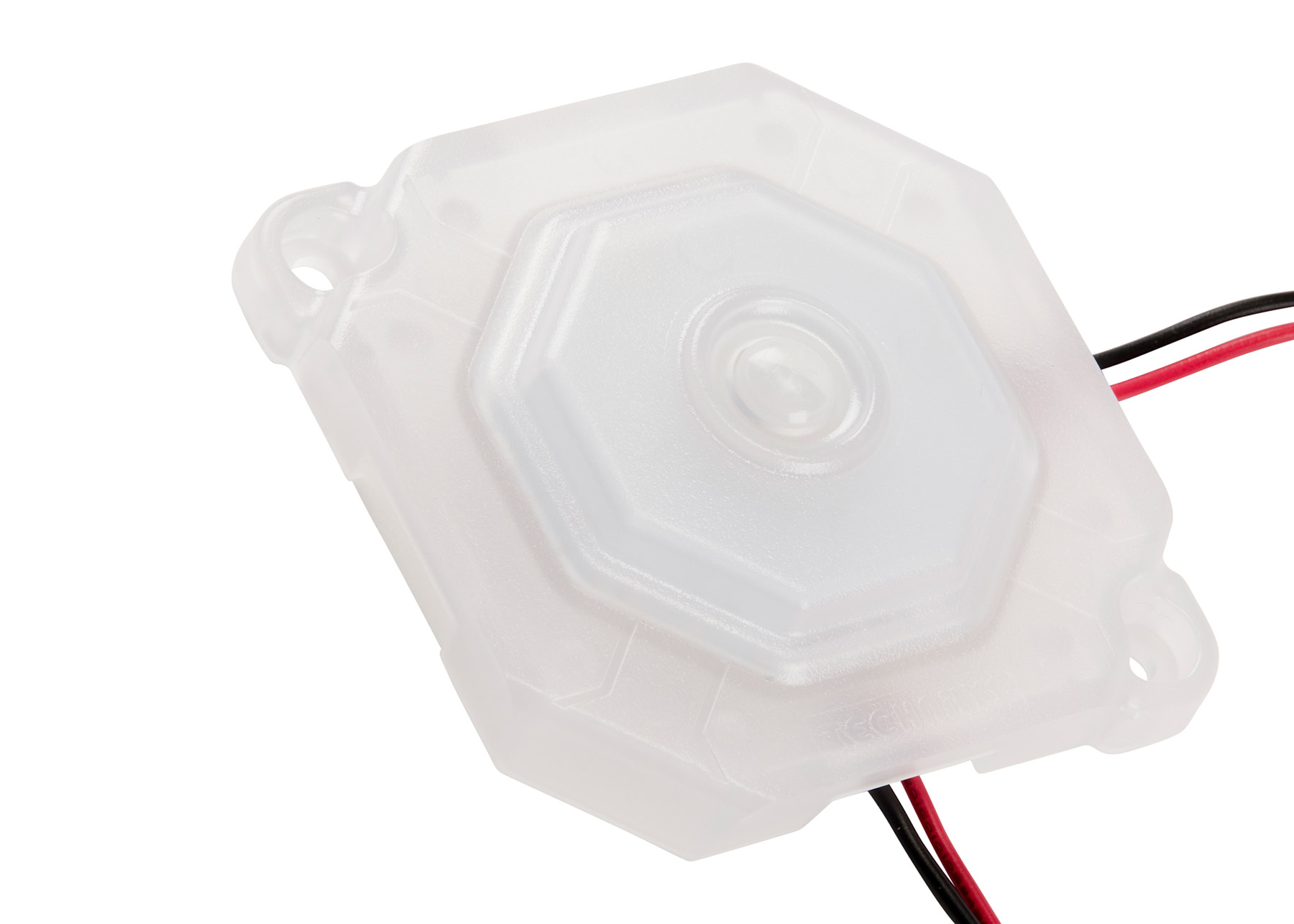

Surface Mount Waterproof PIR Motion Sensor Switch

PART NO: PIRW

Features

  • Fully waterproof.
  • Dual voltage.
  • Compact design.
  • Surface mount.
  • 1 minute timer - if no detection it will flash the lamps connected 3 times before switching off in the next 30 seconds.
  • Warranty: 3 Years

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

Part Number Product Name IP RATING VOLTAGE (V) DC CURRENT DRAW (AMPS) CABLE LENGTH (MM) CONNECTORS DIAMETER (MM) WEIGHT (KG) Dimensions (MM)
PIRW Surface Mount Waterproof PIR Motion Sensor Switch IP69K 12/24 0.017A @ 12V, 0.008A @ 24V 130 None N/A 0.043 69(H) X 69(L) X 18(D)
