- Optimised electronics for minimal current draw.
- Multiple flash patterns, steady burn cruise light and low power night function to meet ECE R65 Class II.
- Customisation options include alley lights, stop / tail / indicator modules, illuminated centre.
- Modular design makes it serviceable in the field. Modules can be swapped easily if needed.

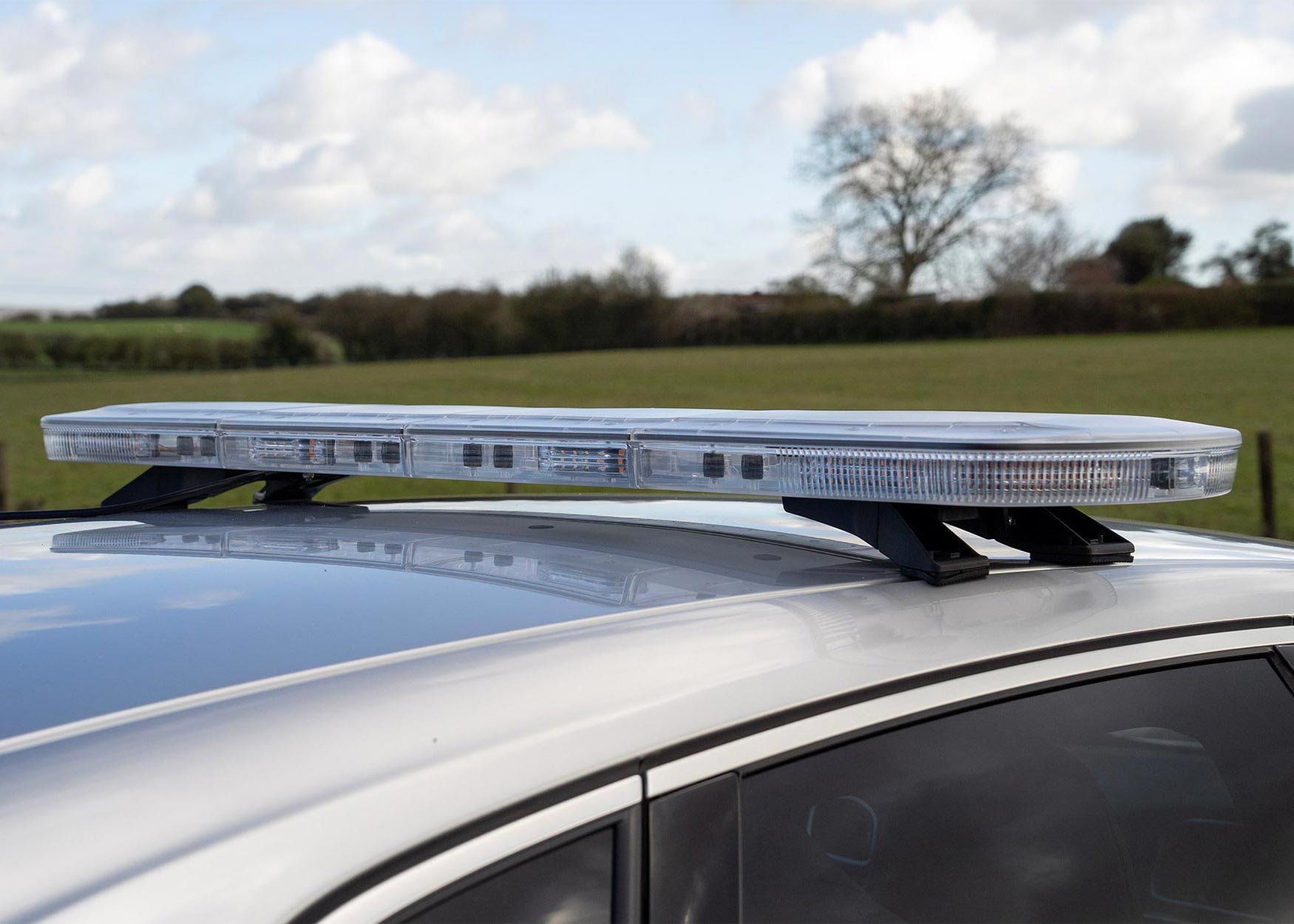

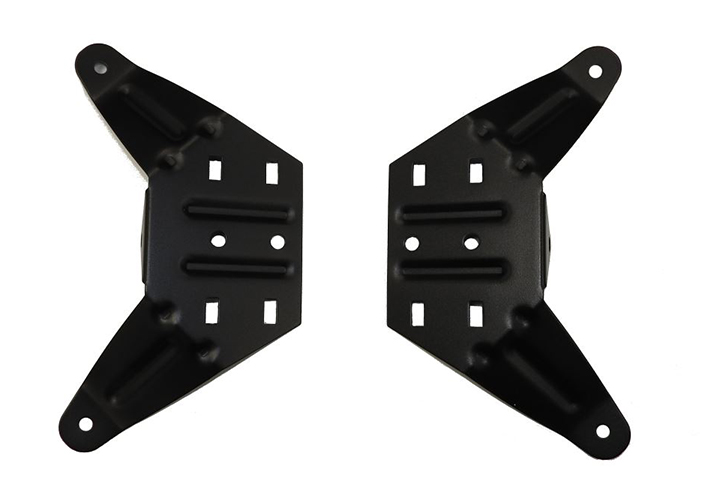

- Supplied with an adjustable mounting bracket, meaning the lightbar can be positioned parallel to the ground even on angled roofs.
- Undergone a high temperature flash rate test at 50oC, low temperature flash rate test at -30oC, durability flash rate test, vibration, moisture, dust, corrosion and warpage tests.
- Polycarbonate lens and base, aluminium housing.
- Comes in amber as standard. Can be supplied in other colours including blue, red and white.
- Can be supplied with waterproof connectors, including Superseal.
- Available in four lengths.
- Warranty: 3 Years
- Approvals: ECE R10, R65 Class 2, SAE Class 1, CAP168.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification

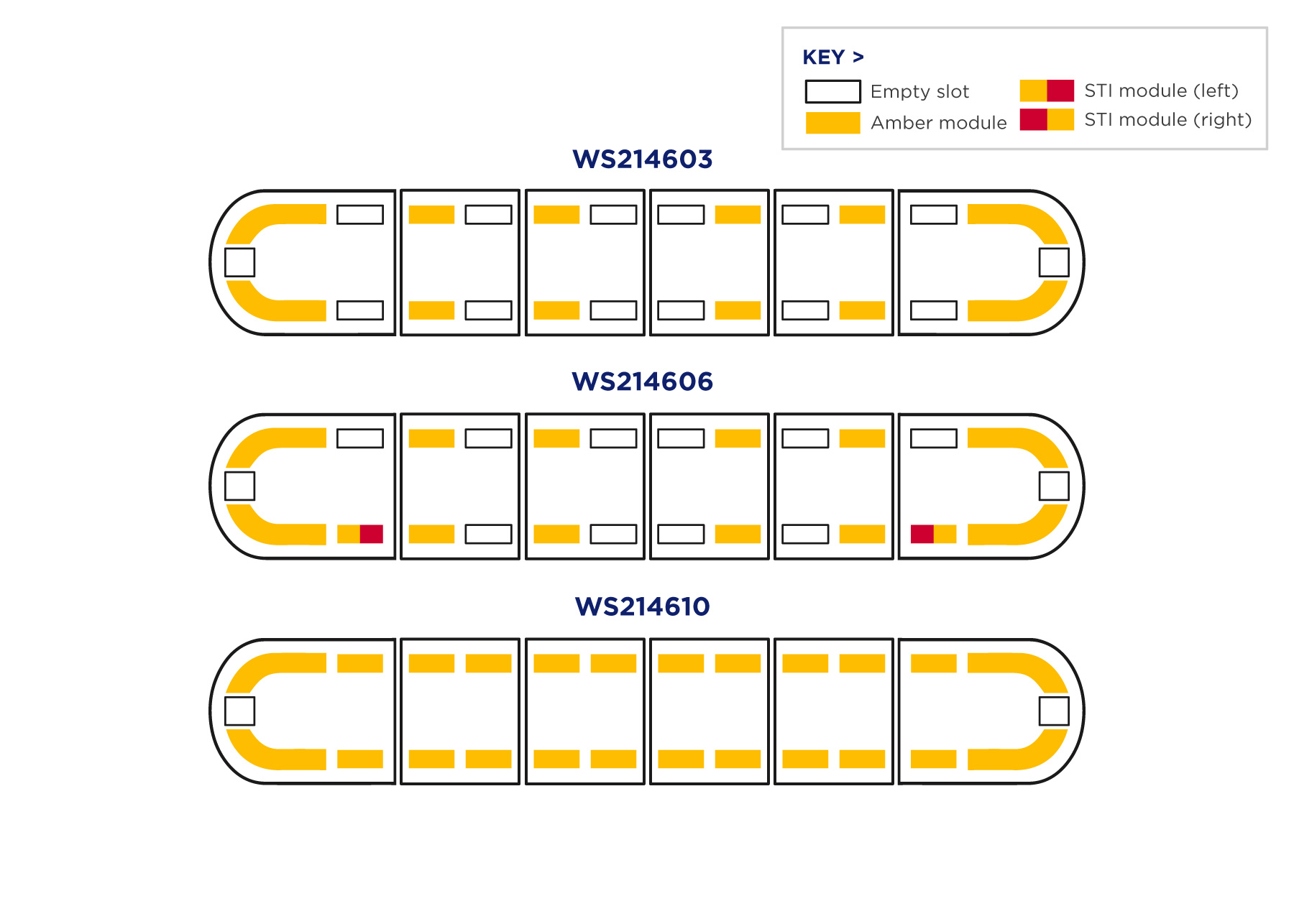

| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

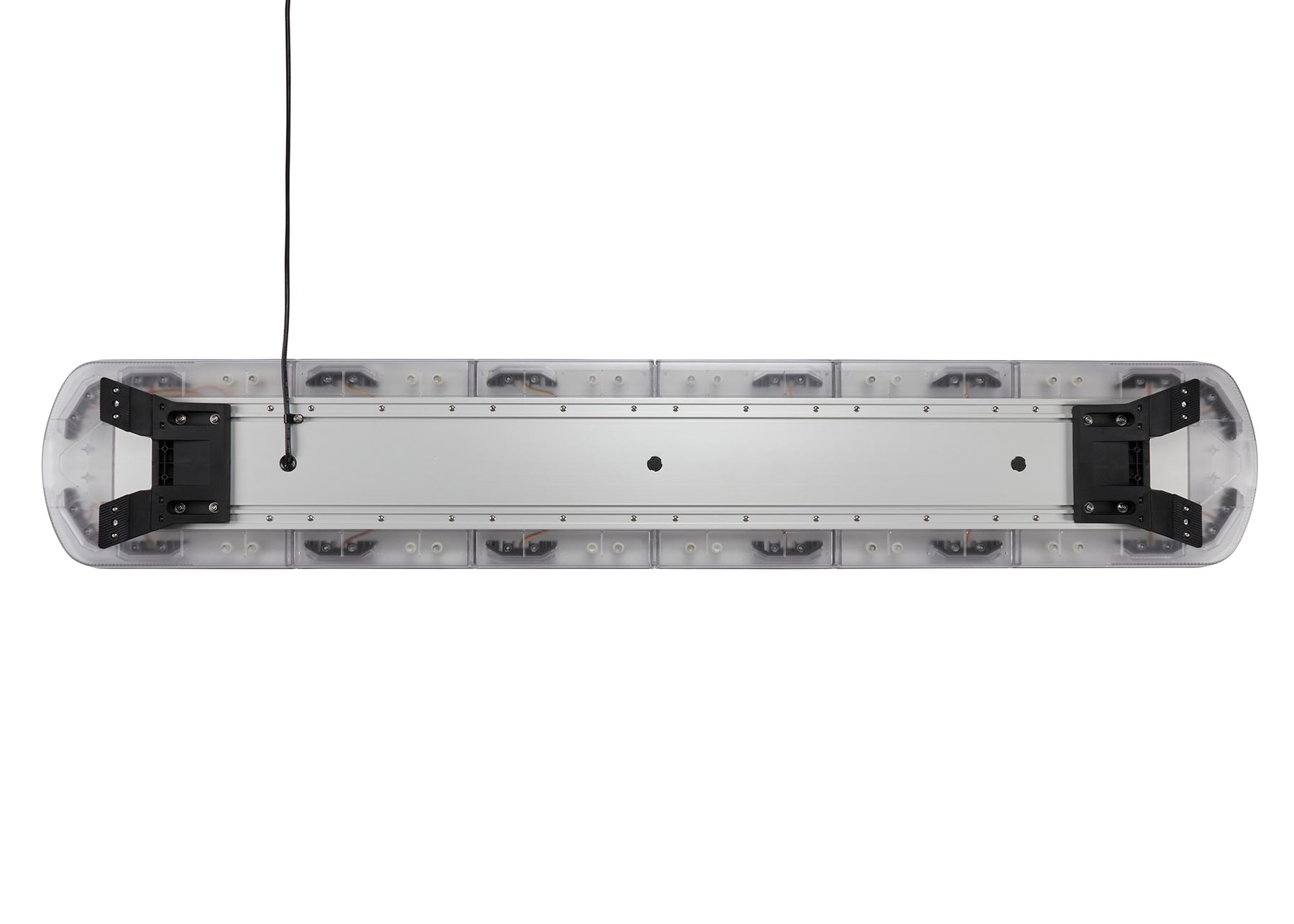

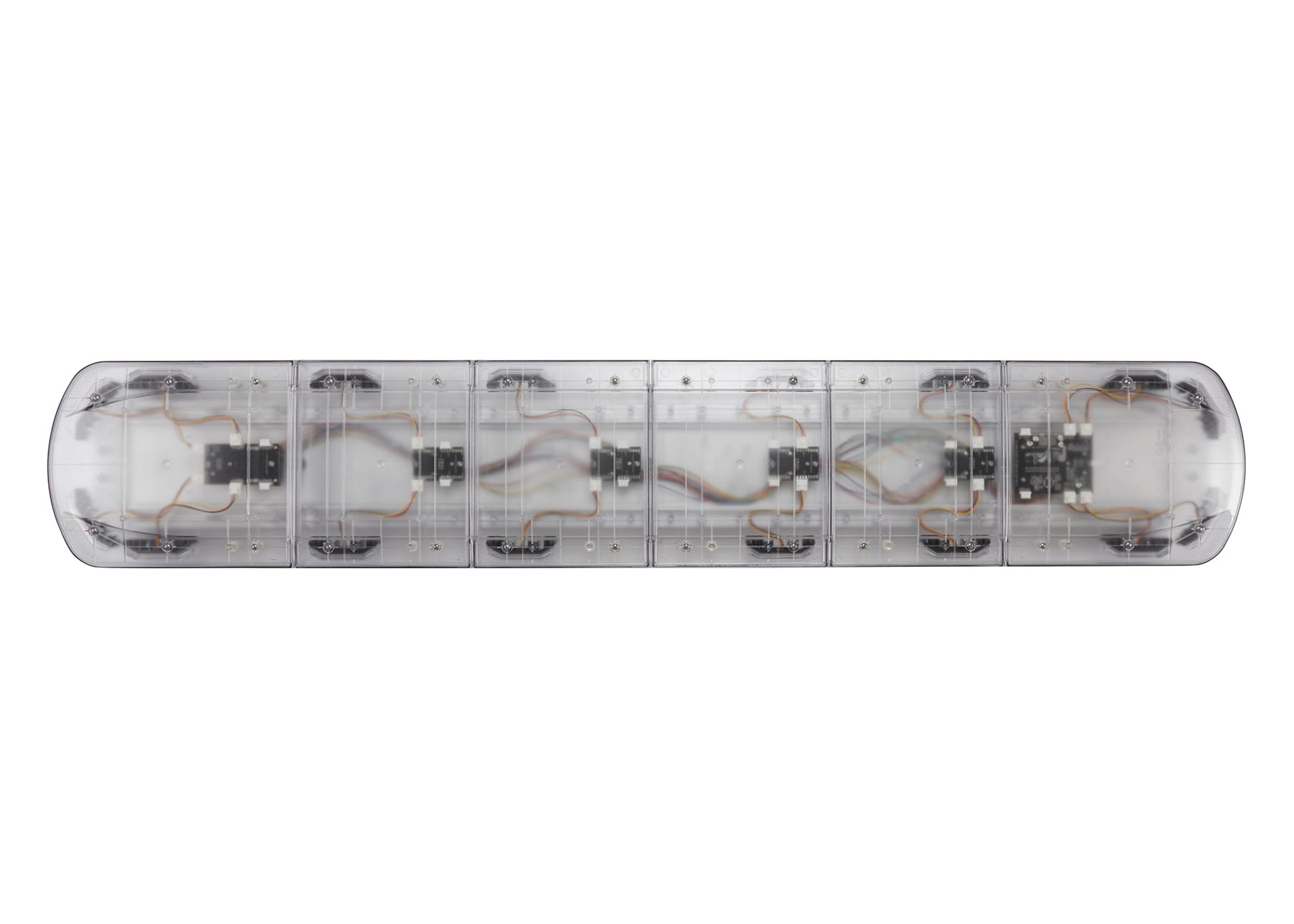

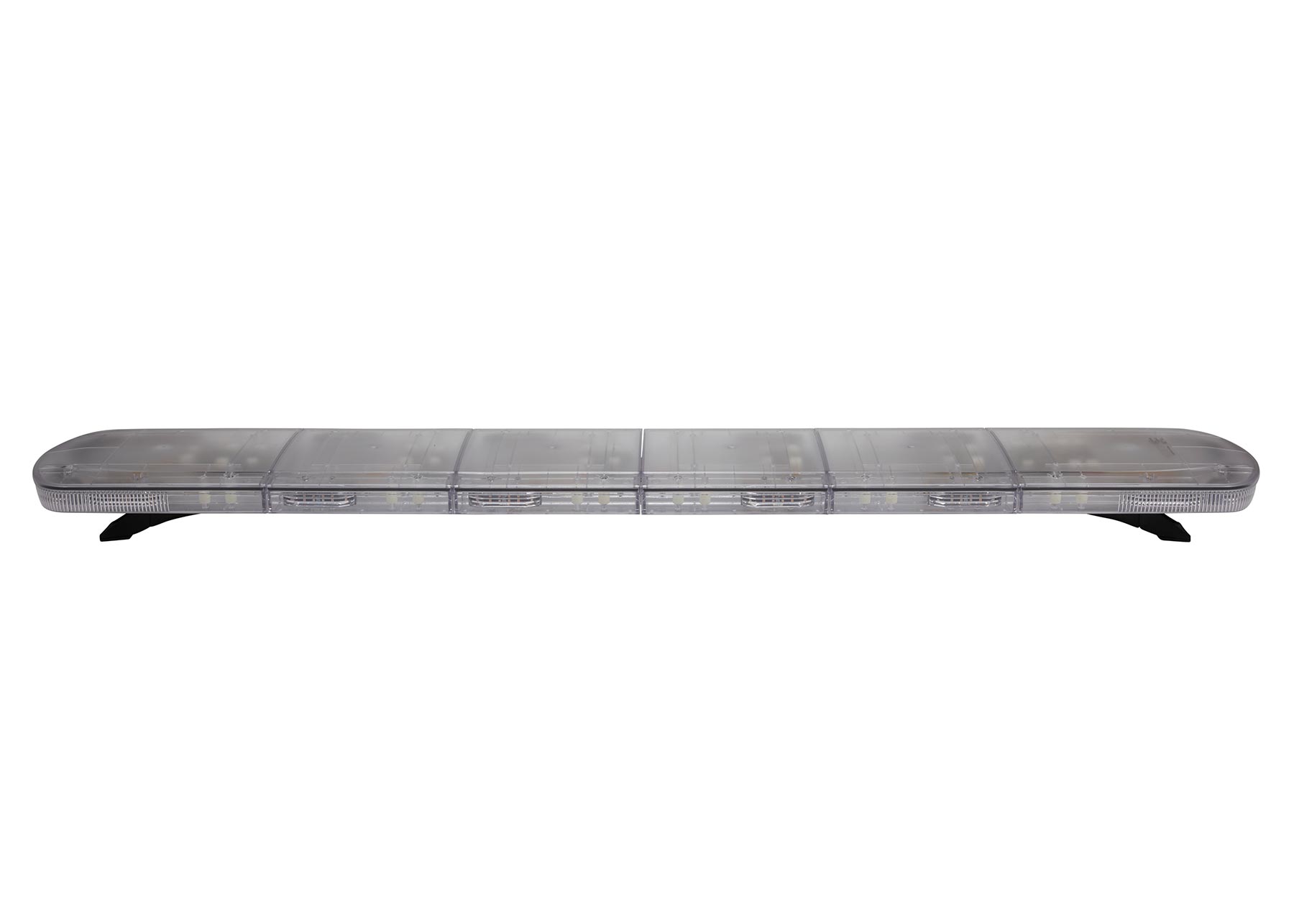

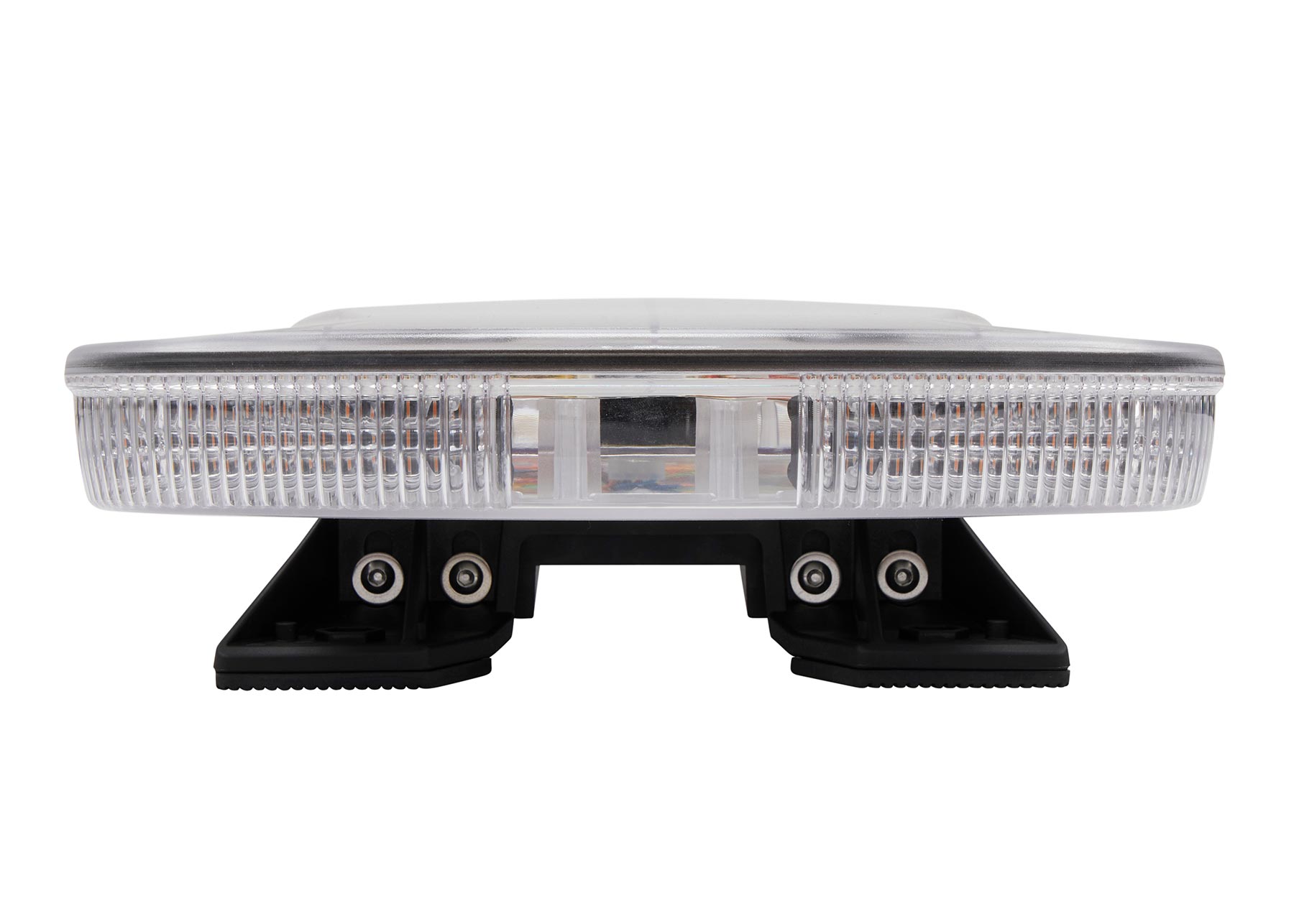

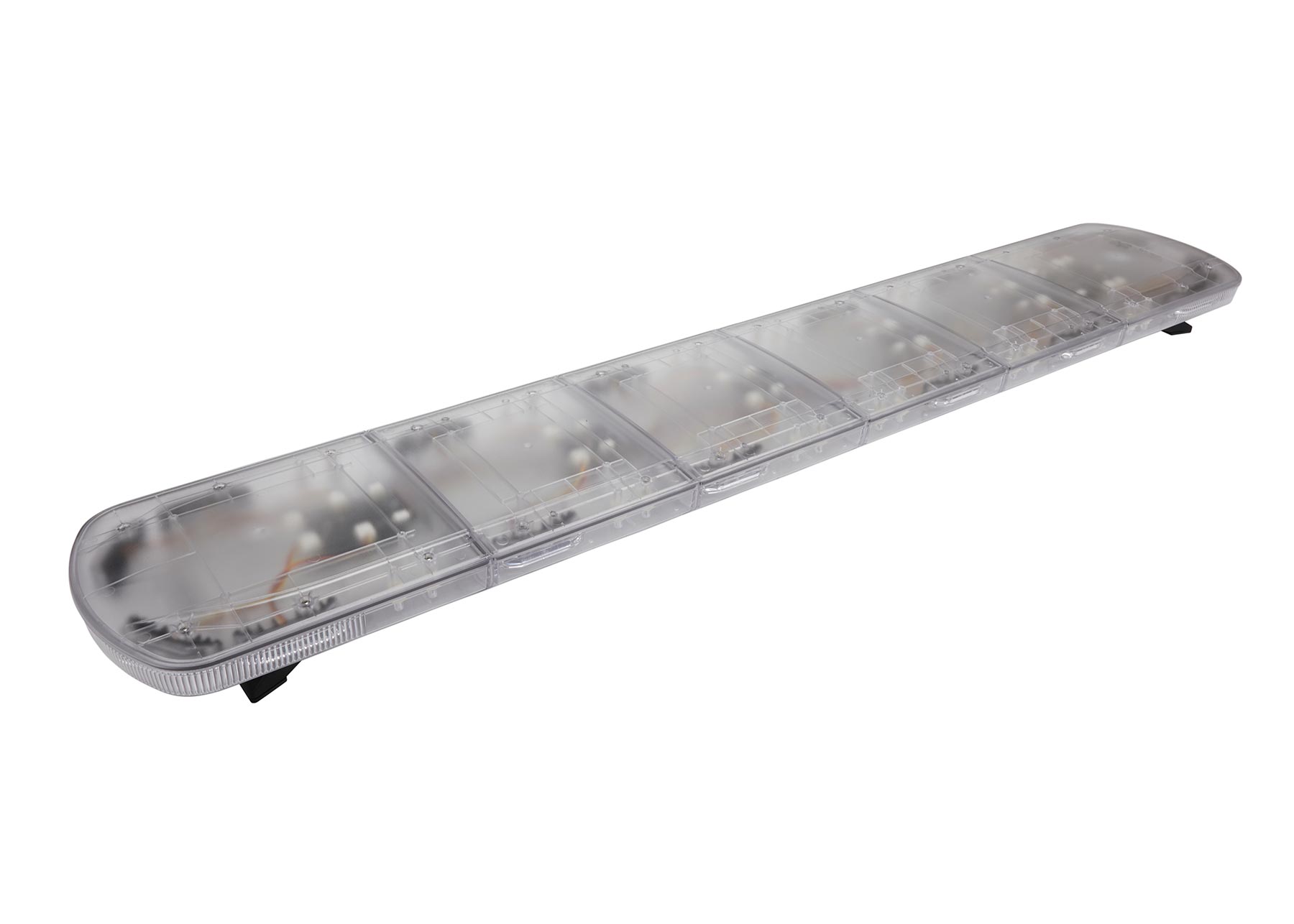

| WS214603 | R65 LED Lightbar - Amber, 1751mm | IP65 | 10-30 | 9.6A @ 12V, 4.8A @ 24V | 5000 | None | Amber | Clear | N/A | 15.05 | 125(H) X 1751(L) X 304(D) |
| WS214606 | R65 LED Lightbar - Amber with STI, 1751mm | IP65 | 10-30 | 5000 | None | Red/Amber | Clear | N/A | 125(H) X 1751(L) X 304(D) | ||
| WS214610 | R65 LED Lightbar - Fully Loaded Amber, 1751mm | IP65 | 10-30 | 9.6A @ 12V, 4.8A @ 24V | 5000 | None | Amber | Clear | N/A | 125(H) X 1751(L) X 304(D) |
