- Flush push-fit mounting - only protrudes 3mm once mounted.
- Dual voltage.
- Hole cutout is 35mm.
- Lens face 40mm.
- Made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R10, R65, SAE.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|

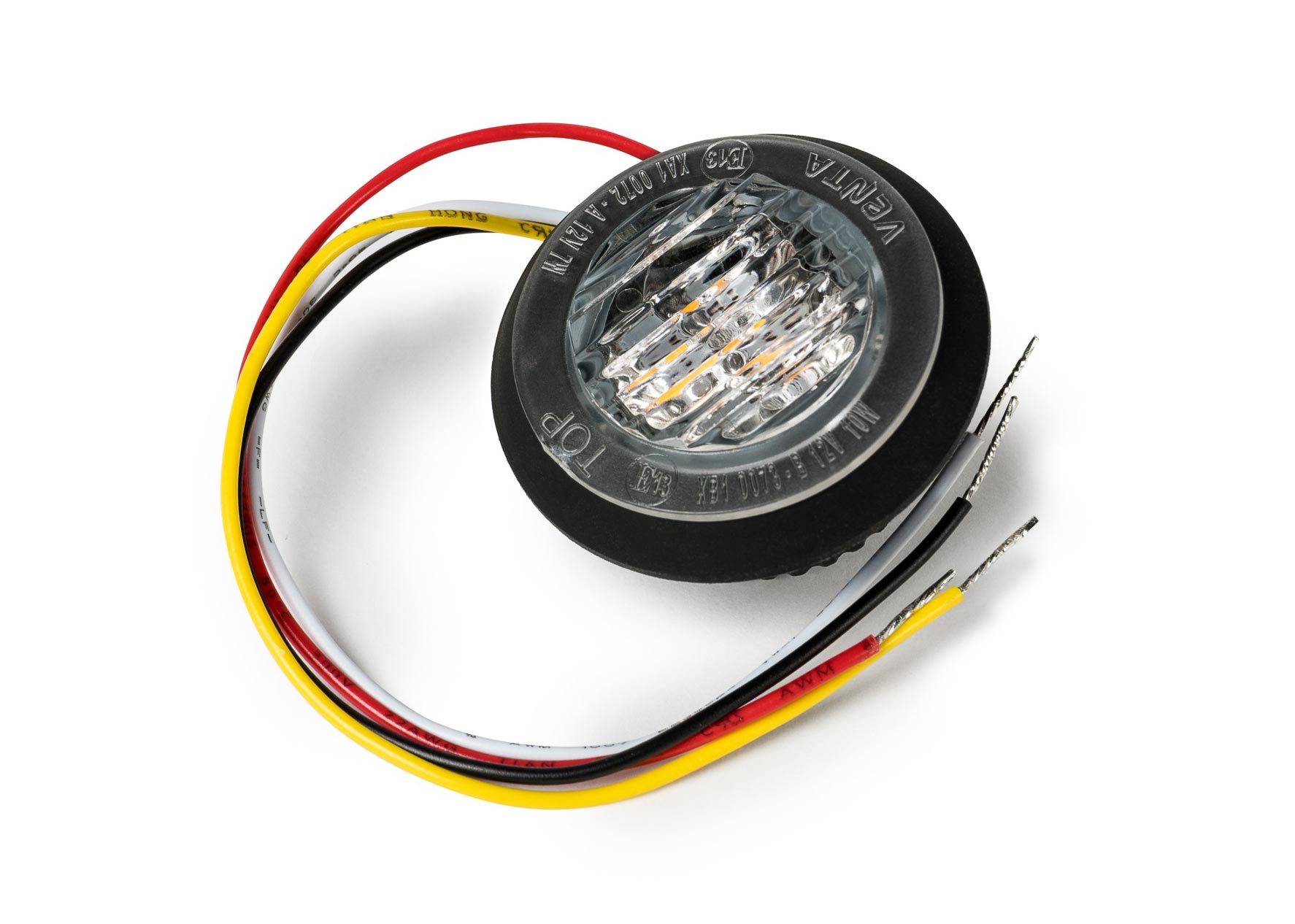

| VPR001 | Round, Push-Fit R65 LED Warning Light - Amber | IP67 | 12/24 | 0.354A @ 12V, 0.281A @ 24V | 190 | None | Amber | Clear | 48 | 0.041 | 25(D) |
| VPR0011M | Round, Push-Fit R65 LED Warning Light - Amber, 1m Cable | IP67 | 12/24 | 0.354A @ 12V, 0.281A @ 24V | 1000 | None | Amber | Clear | 48 | 0.056 | 25(D) |
| VPR001S | Round, Push-Fit R65 LED Warning Light - Amber with Superseal Connector | IP67 | 12/24 | 0.354A @ 12V, 0.281A @ 24V | 1040 | Superseal | Amber | Clear | 48 | 0.062 | 25(D) |
Download Product Information
- VPR001 Product Spec Sheet Download
- VPR0011M Product Spec Sheet Download
- VPR001S Product Spec Sheet Download
- VPR001 Technical Drawing Download
- VPR0011M Technical Drawing Download
- VPR001S Technical Drawing Download
To download product materials, please login or register for an account.
