- Dual voltage.
- Polarity protected.
- Robust, durable ABS housing which is cool to the touch.
- Made to order. Lead times apply.
- Warranty: 3 Years
- Approvals: ECE R10.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | INTEGRAL SWITCH | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

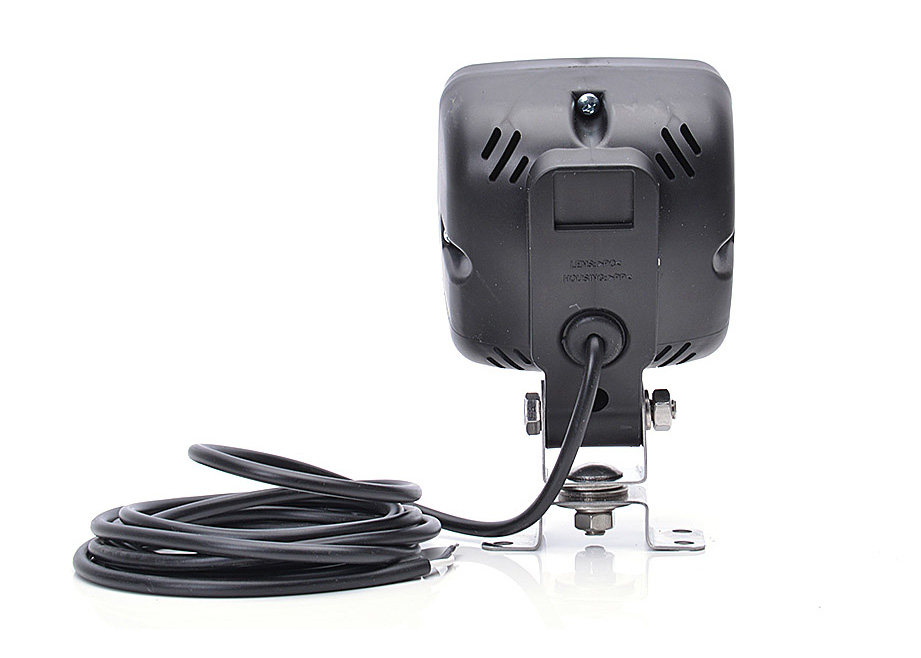

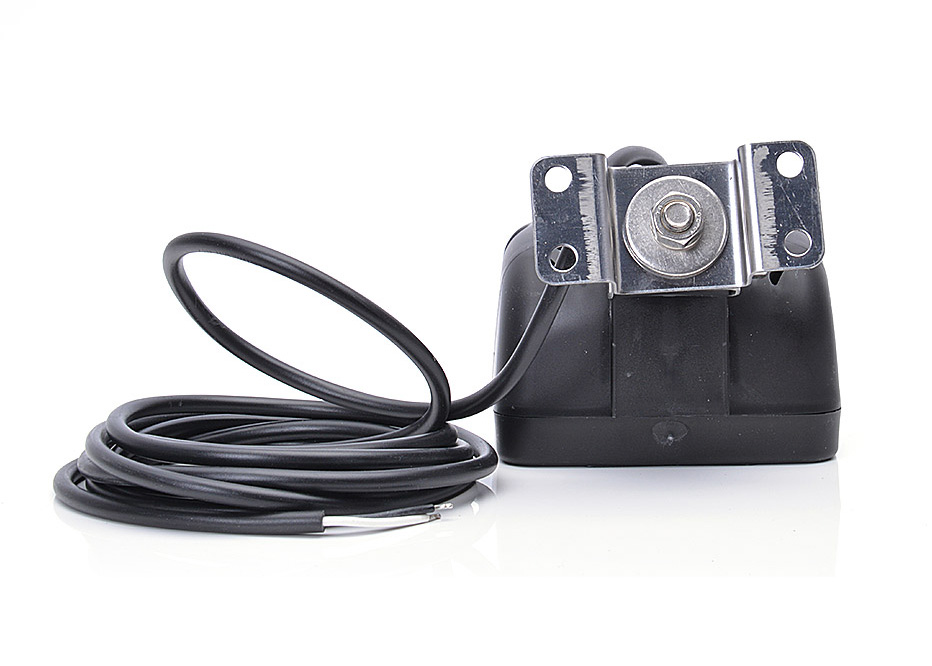

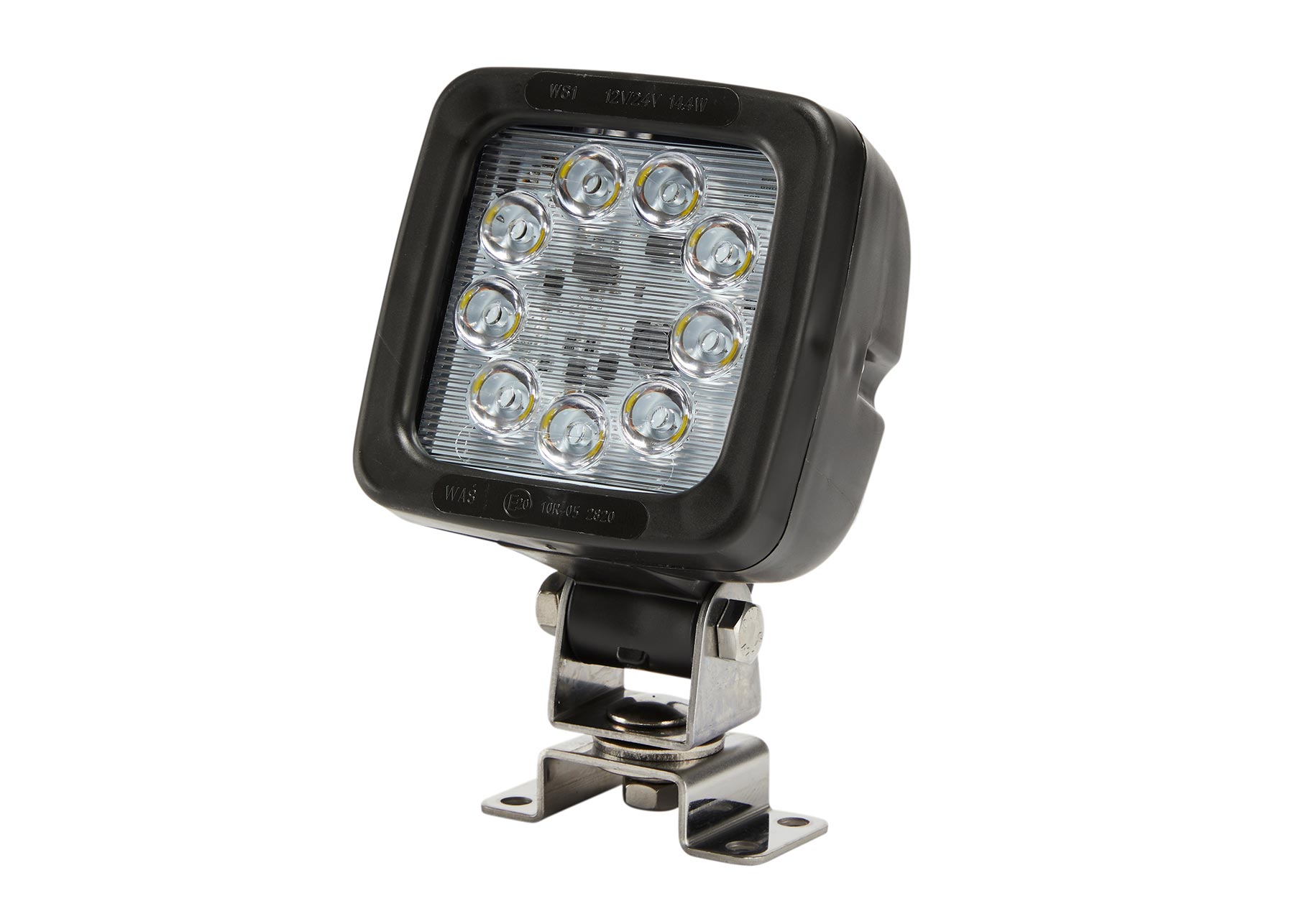

| WL819 | High Power 9 LED Worklamp | IP68 | 10-30 | 1.2A @ 12V, 0.6A @ 24V | 2500 | None | White | Clear | No | N/A | 0.6 | 147.5(H) X 101(L) X 77.5(D) |

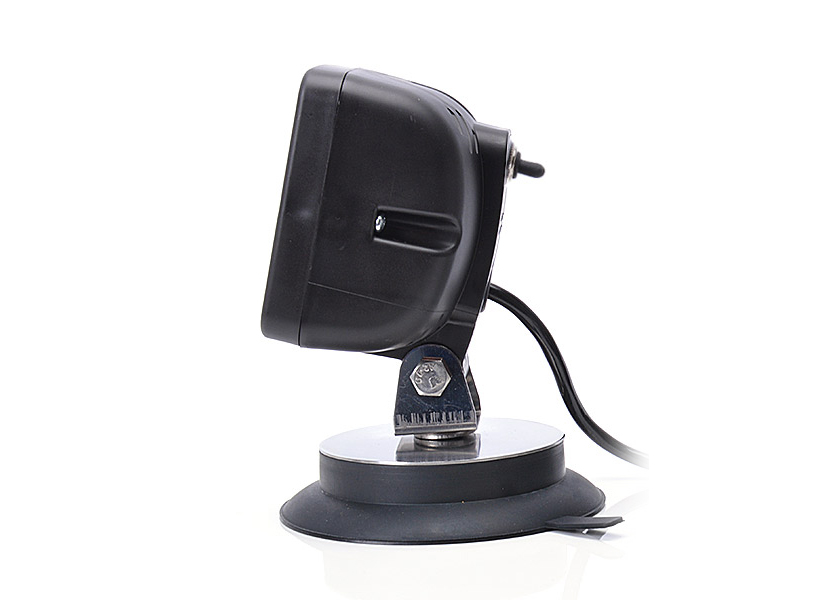

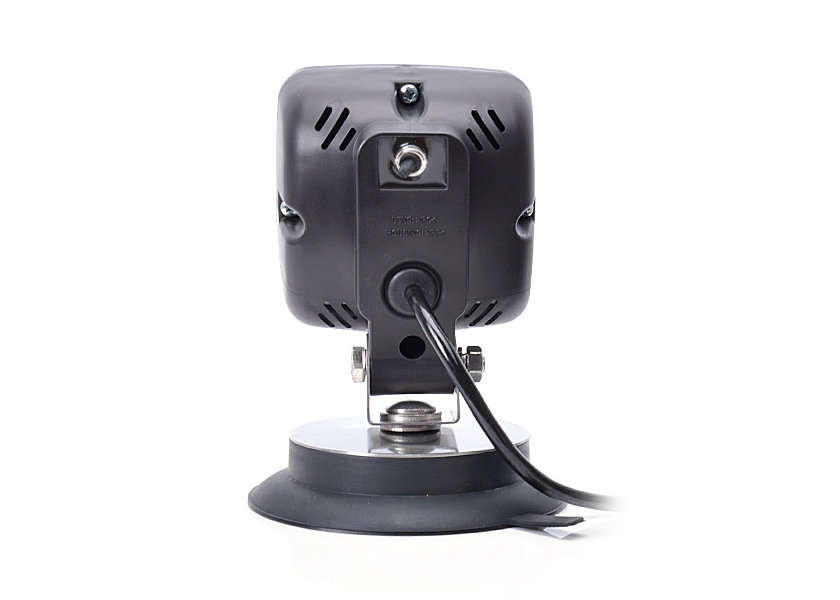

| WL819M | High Power 9 LED Worklamp - Magnetic Mount | IP68 | 10-30 | 1.2A @ 12V, 0.6A @ 24V | 3000 | None | White | Clear | No | N/A | 0.6 | 147.5(H) X 101(L) X 77.5(D) |

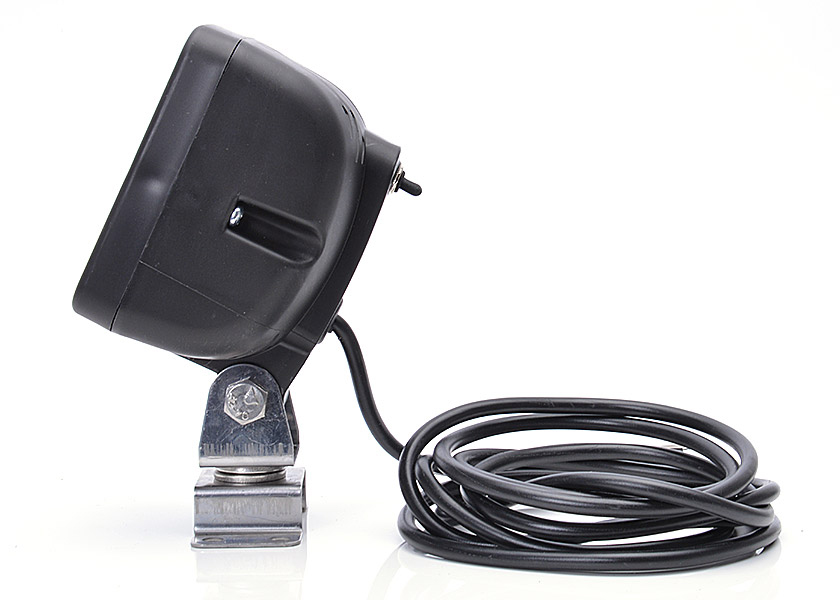

| WL819S | High Power 9 LED Worklamp with Integral Waterproof Switch | IP68 | 10-30 | 1.2A @ 12V, 0.6A @ 24V | 2500 | None | White | Clear | Yes | N/A | 0.6 | 147.5(H) X 101(L) X 77.5(D) |
| WL819SS | High Power 9 LED Worklamp with Integral Waterproof Switch and Superseal Connector | IP68 | 10-30 | 1.2A @ 12V, 0.6A @ 24V | Superseal | White | Clear | Yes | N/A | 147.5(H) X 101(L) X 77.5(D) | ||
| WL819SSC | High Power 9 LED Worklamp with Integral Waterproof Switch and Superseal Connector, 1m Cable | IP68 | 10-30 | 1.2A @ 12V, 0.6A @ 24V | 1000 | Superseal | White | Clear | Yes | N/A | 147.5(H) X 101(L) X 77.5(D) |
Download Product Information
- WL819 Product Spec Sheet Download
- WL819M Product Spec Sheet Download
- WL819S Product Spec Sheet Download
- WL819SS Product Spec Sheet Download
- WL819SSC Product Spec Sheet Download
- WL819 Technical Drawing Download
- WL819M Technical Drawing Download
- WL819S Technical Drawing Download
- WL819SS Technical Drawing Download
- WL819SSC Technical Drawing Download
- WL819 R10 Approval Download
To download product materials, please login or register for an account.
