- Low profile.
- Single bolt mount or magnetic mount options.
- IP69K waterproof rating.
- Available in blue with magnetic mount.
- Warranty: 3 Years
- Approvals: ECE R65.
The options available for this product are summarised below. For a detailed specification download the Product Technical Specification
| Part Number | Product Name | IP RATING | VOLTAGE (V) DC | CURRENT DRAW (AMPS) | CABLE LENGTH (MM) | CONNECTORS | LIGHT COLOUR | LENS COLOUR | DIAMETER (MM) | WEIGHT (KG) | Dimensions (MM) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WS2794 | R65 LED Beacon - Amber - Single Bolt Mount | IP69K | 12/24 | 1.66A @ 12V, 0.83A @ 24V | 300 | None | Amber | Amber | 131.6 | 0.6 | 84(H) |
| WS279402 | R65 LED Beacon - Amber - Single Bolt Mount, Preset to R65 Double Flash Pattern with Superseal Connector | IP69K | 12/24 | 1.66A @ 12V, 0.83A @ 24V | 300 | Superseal | Amber | Amber | 131.6 | 0.608 | 84(H) |

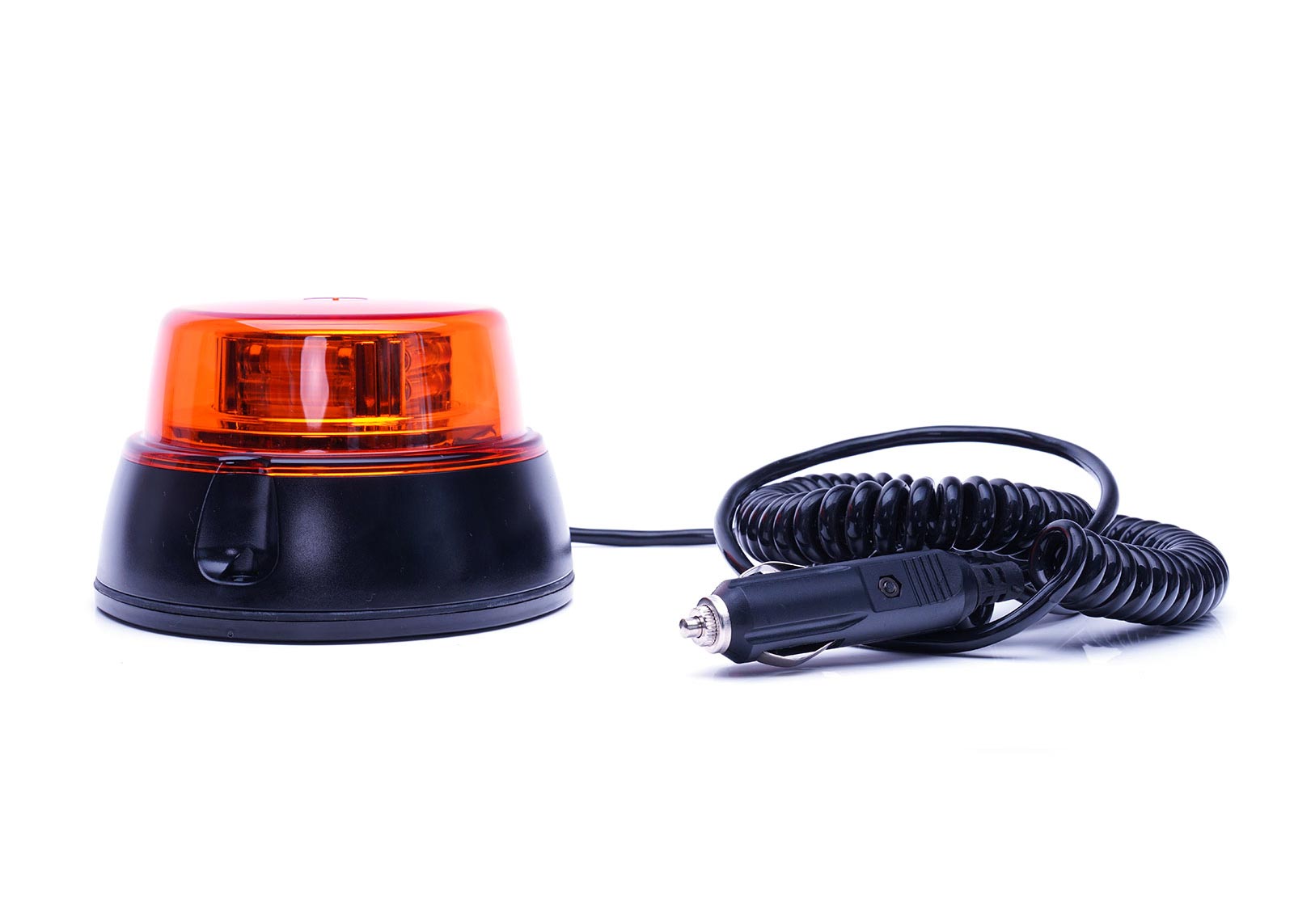

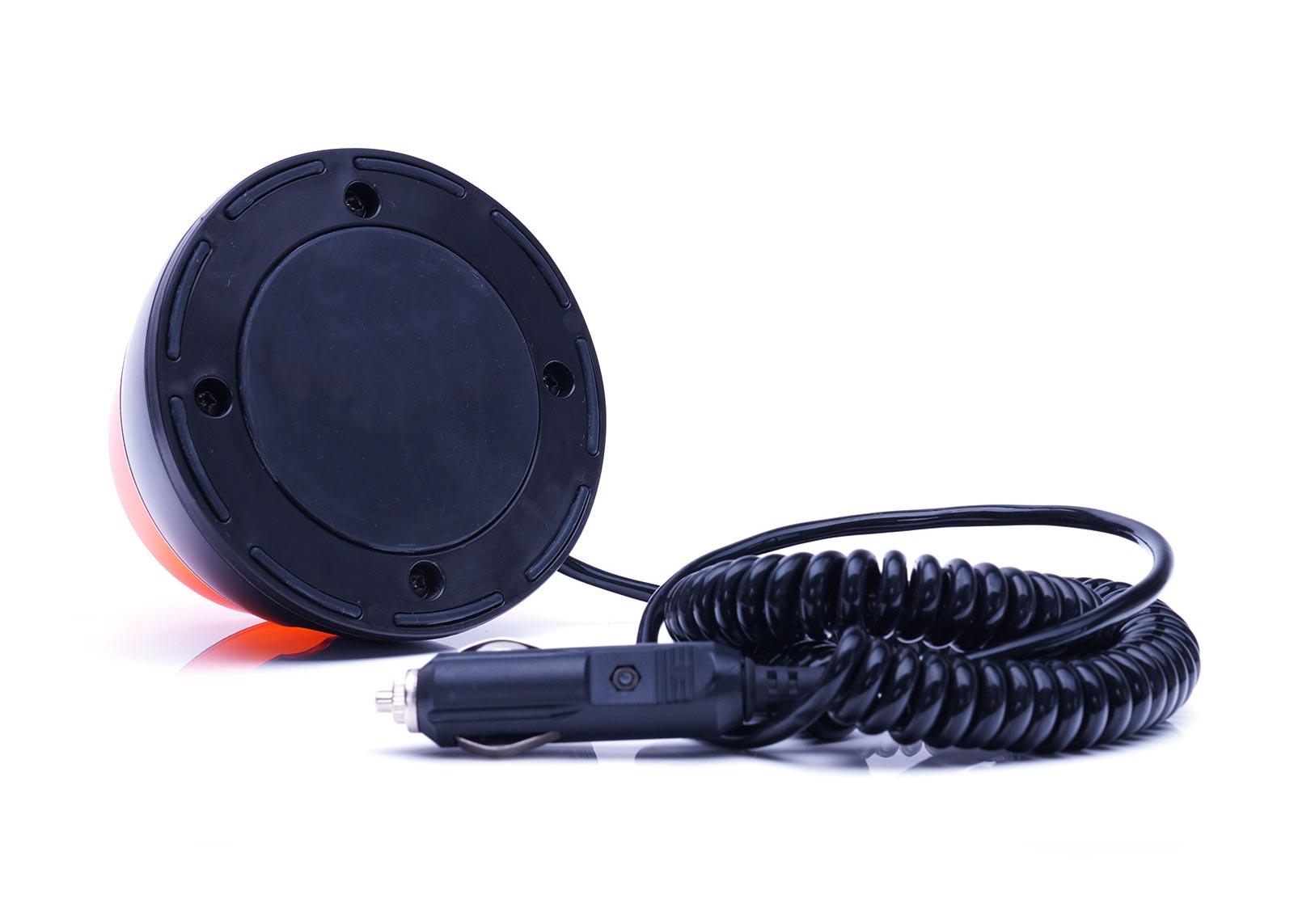

| WS279404 | R65 LED Beacon - Amber - Magnetic Mount | IP69K | 12/24 | 1.66A @ 12V, 0.83A @ 24V | 300 | None | Amber | Amber | 131.6 | 84(H) |
Download Product Information
- WS2794 Product Spec Sheet Download
- WS279402 Product Spec Sheet Download
- WS279404 Product Spec Sheet Download
- WS2794 Technical Drawing Download
- WS279402 Technical Drawing Download
- WS279404 Technical Drawing Download
- WS2794 R65 Approval Download
