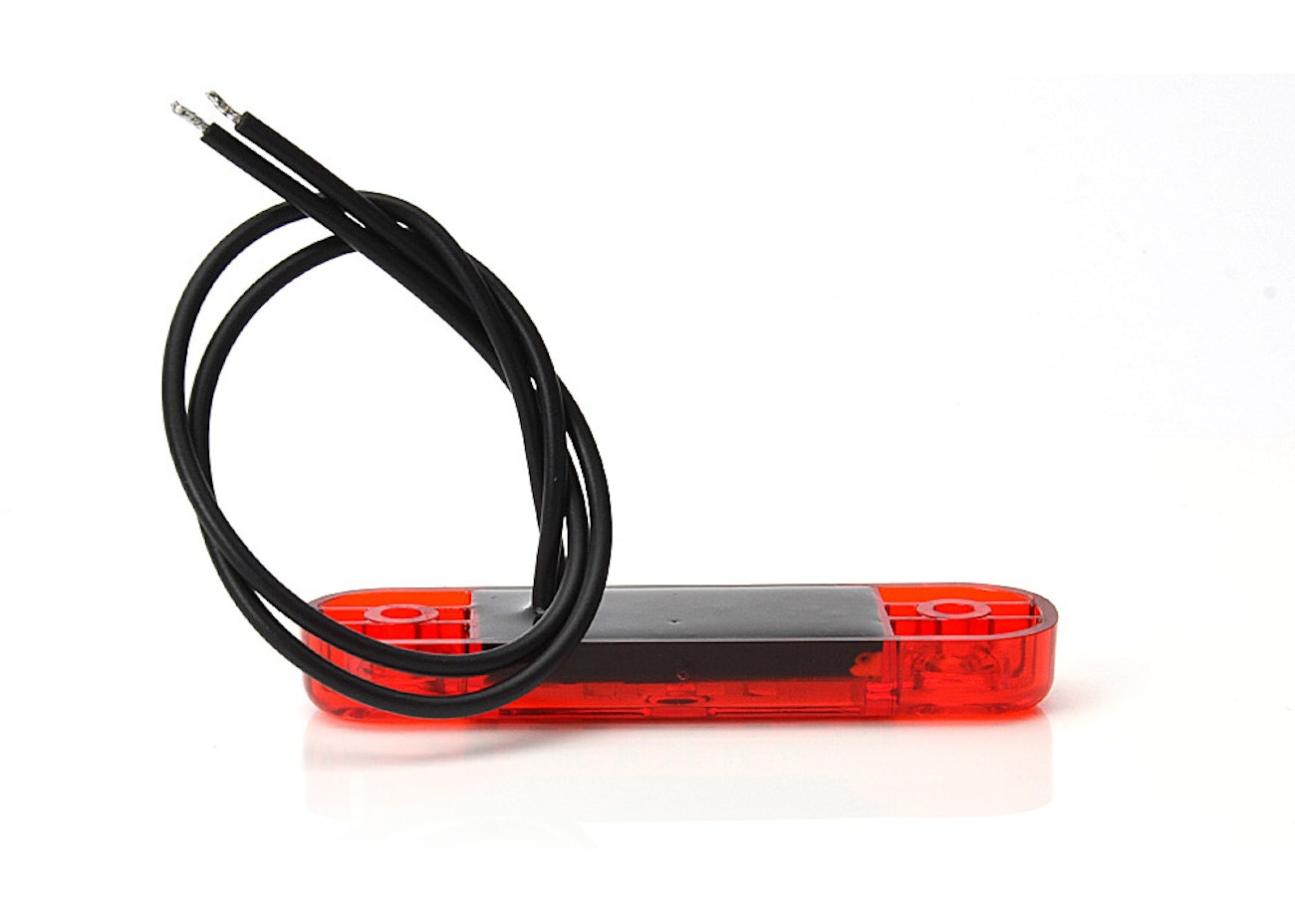

SM97 Series Compact LED Rear Marker Light

PART NO: SM9702

Product options
  • Product Overview:
    • Surface mount.
    • Approved for vertical and horizontal mounting.
    • Available with Superseal connectors.
    • Side and front marker light options also available.
    • Some variants are made to order. Lead times apply.
  • Warranty: 3 Years
  • Approvals: ECE R7, R10.
Contact Us

The options available for this product are summarised below. For a detailed specification download the Product Technical Specification.

TITLE Compact LED Rear Marker Light Compact LED Rear Marker Light with Superseal Connector
PART NUMBER SM9702 SM9702S
IP RATING IP68 IP68
VOLTAGE (V) DC 12/24 12/24
CURRENT DRAW (AMPS) 0.025A @ 12V, 0.029A @ 24V 0.025A @ 12V, 0.029A @ 24V
CABLE LENGTH (MM) 220 270
CONNECTORS None SuperSeal
LIGHT COLOUR Red Red
LENS COLOUR Red Red
DIAMETER (MM) N/A N/A
LENGTH (MM) 84 84
HEIGHT (MM) 24 24
DEPTH (MM) 10.4 10.4
WEIGHT (KG) 0.028 0.032
